4" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Performance Elite Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1596FPE
$4214.01
- +
4214.01

4" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Performance Elite Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1596FPE
From $4,214.01 Regular Price $4,435.80

4" 2011-2016 Ford F250/F350 4WD (w/diesel engine) Fox CoilOver Performance Elite Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1596FPE
From $4,214.01 Regular Price $4,435.80


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

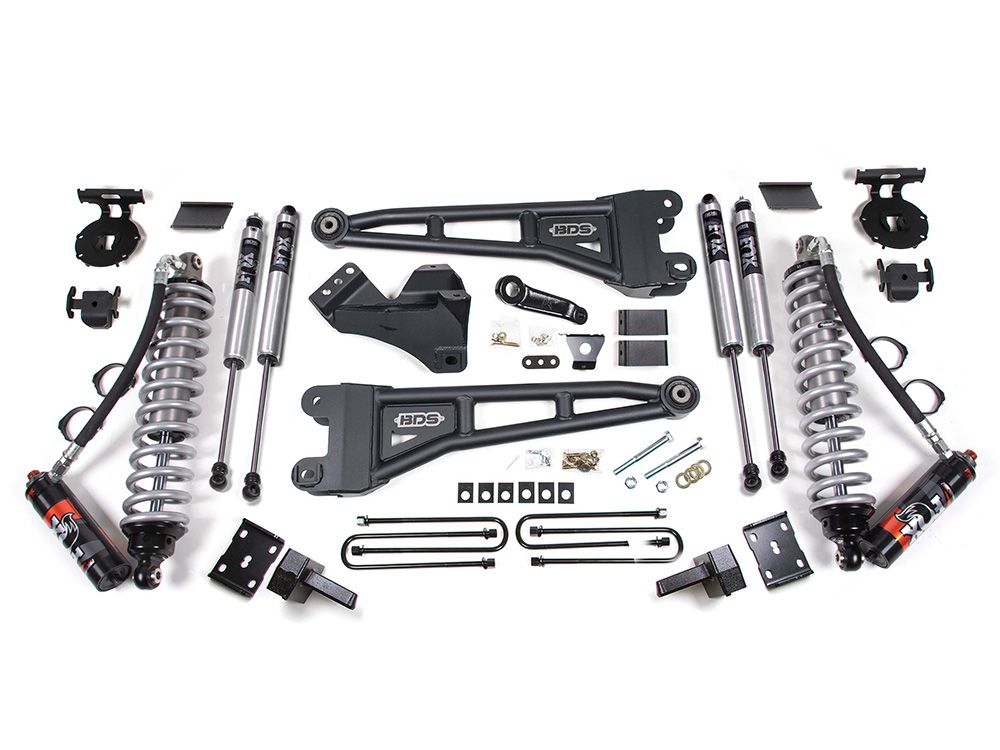

This BDS Suspension BDS1596FPE is the ultimate premium 4 inch suspension lift kit for the Ford F250 / F350 Super Duty trucks. Featuring Fox 2.5 Performance Elite Remote Resi Coil-Overs. These coil-overs replace the factory coil springs and are optimized for performance and ride comfort. Heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle. A forged drop pitman arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

In the rear the factory blocks are replaced by a pair of lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts or upgrade to BDS Glideride rear leaf springs for better traction and load support

Fox 2.5 Performance Elite Coil-overs w/DSC Remote Reservoirs - These top of the line adjustable coil-overs feature a 2.5 inch diameter CNC machined 6061-T6 hard anodized aluminum body that will resist rust and allow for excellent heat dispersion. The remote reservoir increases oil capacity and house the DSC (dual speed compression) adjuster knob. This allows you to to easily adapt your coil-overs ride softness or firmness to the current terrain and vehicle load by changing high-speed and low-speed compression settings with the turn of a dial.

Features and Benefits:

  • Ultimate Premium 4 inch Suspension Lift Kit for Ford F250 / F350 models
  • Fox 2.5 Performance Elite Coil-Overs replace factory coil springs
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pitman arm to correct steering angles
  • Choose from rear lift blocks or upgrade to BDS Glideride rear leaf springs for added traction control and support
  • Fox 2.0 Performance Shocks (front and rear)
  • Allows use of up to 37 inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 35" x 12.50" tires w/20 x 9 and 4.5" back spacing
  • Fits 35" x 12.50" tires w/18 x 9 and 4.5" back spacing

Fox 2.5 Performance Elite Coilover Benefits

  • Greatly improves suspension performance and ride quality in both on and off-road conditions
  • 6061 Aluminum 2.5 inch diameter body dissipates heat three times faster than a steel body
  • DSC Adjuster - Allows you to fine tune your ride with a turn of a dial (w/ multiple fast and low speed compression settings)
  • 7/8 inch chrome plated shaft
  • Application specific valving
  • Remote reservoir increases oil capacity for improved performance
  • Hard-Anodized Finish
  • Fully rebuild-able

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring equipped systems)
2. If equipped with 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
3. Although extremely rare, front and/or rear driveline vibration may occur.
4. If equipped with rear sway bar, #123009 required.
5. U-bolts will not work on dually.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1596FPE
Item Numberbds_bds1596fpe
Product LineLift Kits
Lift Height4 inch
EngineDiesel
