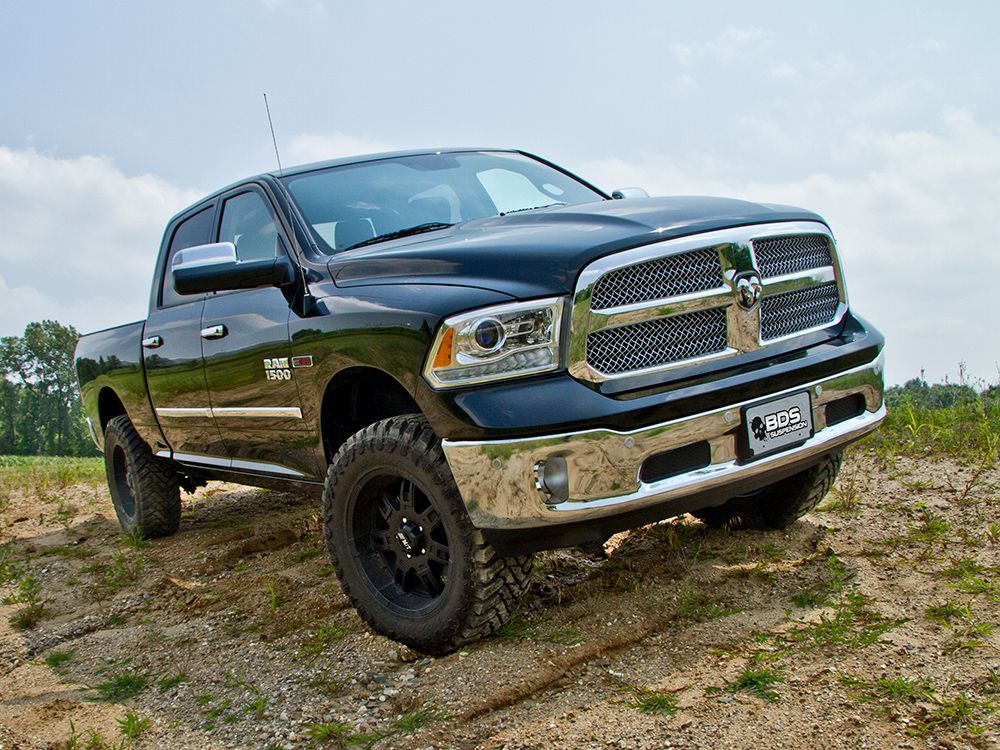

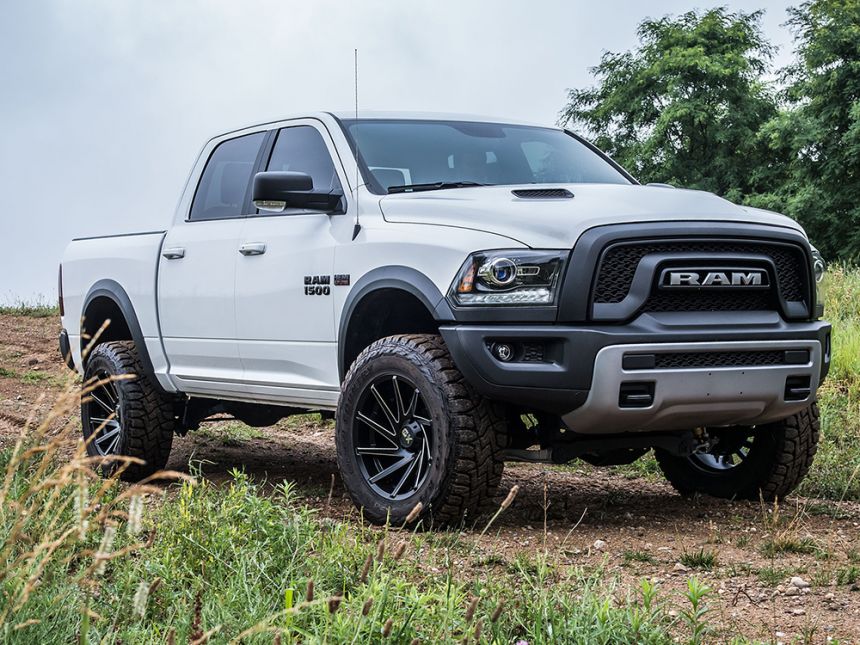

4" 2013-2018 Dodge Ram 1500 & Rebel (w/ air ride) 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1623H
As low as $2,261.82 Regular Price $2,301.65

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS 1623H lift kit for the 2013 thru 2018 Dodge Ram 1500 and Rebel models is designed specifically to work with the factory adjustable air ride system.  Once installed will allow for use of up to 35 inch diameter tires.

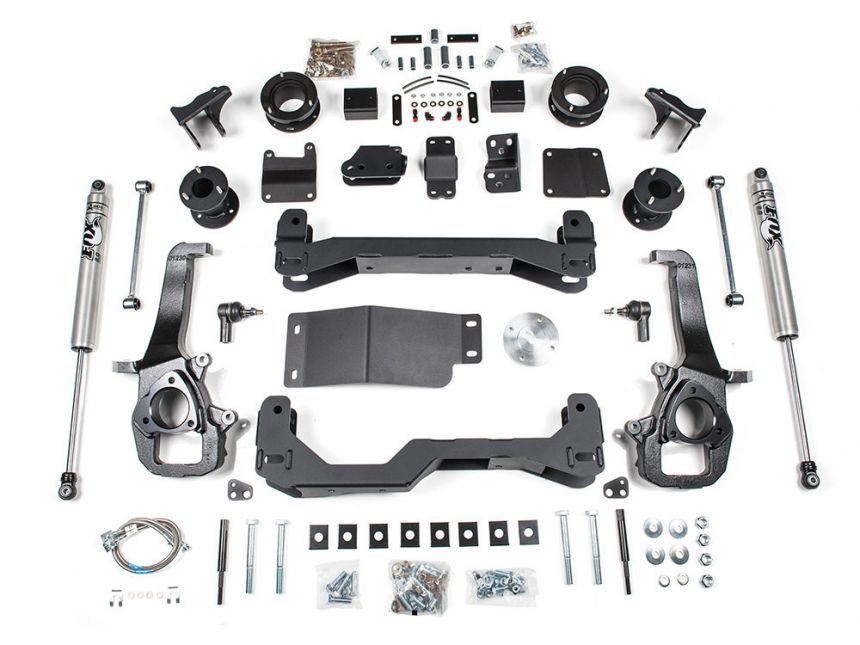

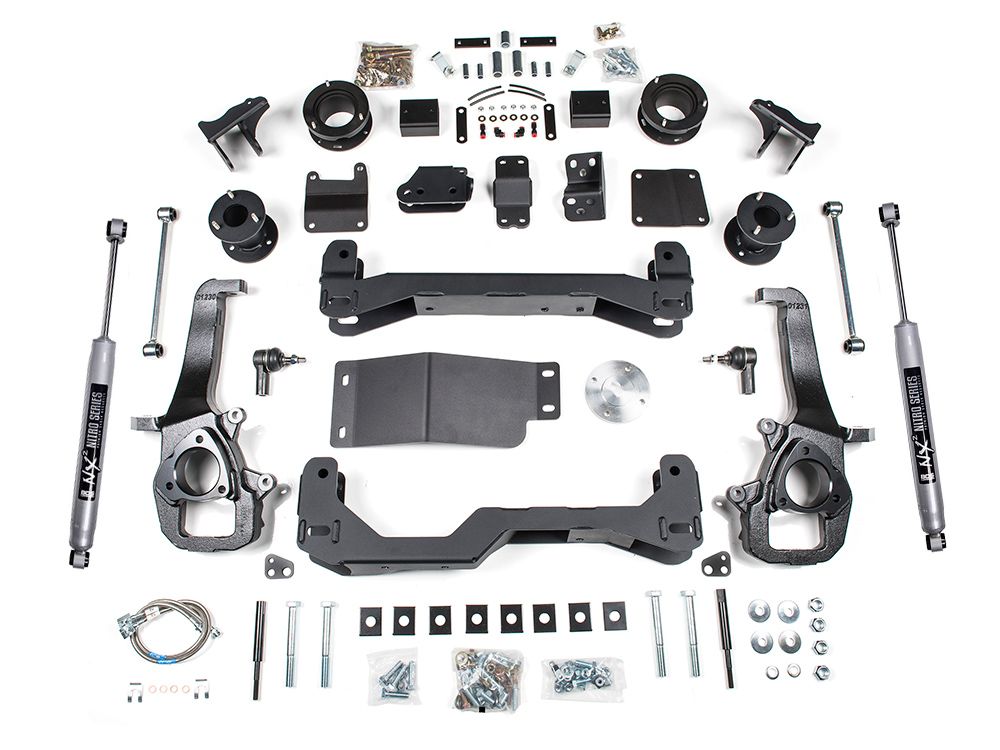

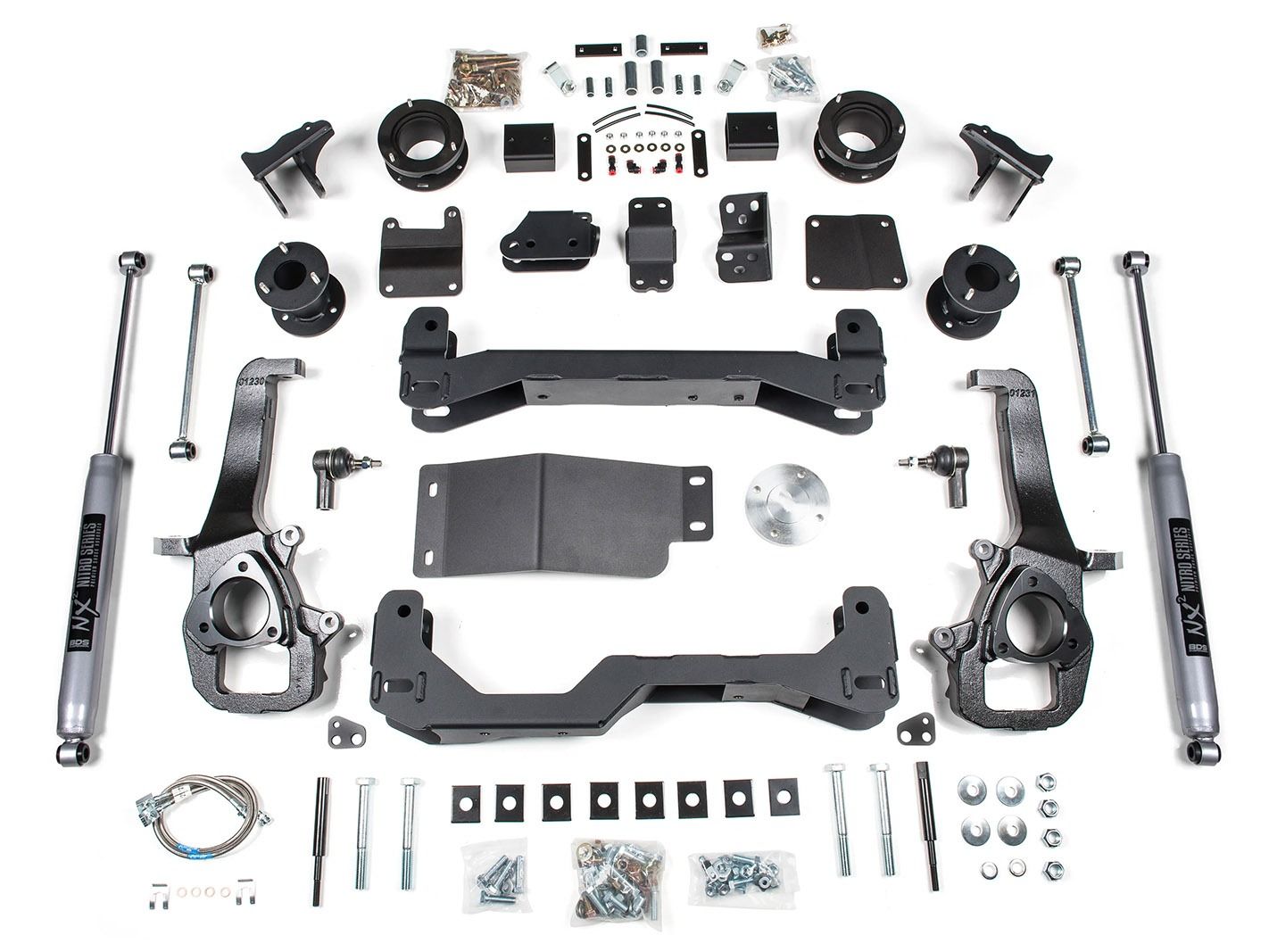

This system uses front and rear air bag spacers to maintain the proper position and function of the factory air bags. Also included are 1/4 inch thick steel laser cut front and rear crossmembers, differential skid plate, ductile cast iron steering knuckles, differential drop brackets and sway bar link extensions. In order to accommodate for the full height range of the adjustable suspension, front replacement brake lines are also included. In the rear, upper control arm relocation brackets, track bar relocation bracket and sway bar links are included. This new system uses front and rear air bag spacers to maintain the proper position and function of the factory air bags. All necessary air line fittings and hardware are included.

Features and Benefits:

  • Lifts vehicle 4 inch front / 2.5 inch rear
  • 1/4 Inch Steel High Clearance Crossmembers
  • Heavy Duty Front Skid Plate
  • Front and rear fair bag spacers maintain function of factory air bags
  • High Clearance design max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Allows use of up 35 inch tires
  • Average Install Time: 10 hours
  • Proudly made in the USA, using only premium quality components
  • Choice of BDS NX2 Shocks or Fox 2.0 Performance IFP Shocks
  • No Fine Print Lifetime Warranty
  • FMVSS No. 126 (ESC System) Compliant
  • Factory Protection Plus
  • Fits a 35 inch x 12.5 inch w/ 17 x 9 inch tire and 4.5 inch backspacing
  • Fits a 35 inch x 12.5 inch w/ 18 or 20 x 9 tire and 5 inch backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

FMVSS No. 126 Compliant - This lift kit is certified compliant with the National Highway Traffic Safety Administration's (NHTSA) FMVSS No.126 standards to not adversely effect the factory installed Electronic Stability Control (ESC) Systems installed on the vehicle. Click here for more information.

Important Notes
  • The rack and pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combinations.
  • Fits factory air ride equipped trucks only.
  • The factory air ride is a closed loop system. Opening the system more times than recommended in the lift instructions or factory service manual will require the system to be recharged. This can be done at any Ram dealer service department.
  • Stock 20" wheel can be reinstalled with factory sized tire only. Stock 17" and 18" wheels will not fit
  • Will not fit diesel models
  • This kit will bolt on Eco-Diesel models but will require an aftermarket front drive shaft.
  • Vehicle Fitment
    ModelRam 1500
    Year Fitment2018, 2017, 2016, 2015, 2014, 2013
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1623H
    Item Numberbds_1623h
    Product LineLift Kits
    Lift Height4 inch
