3" 2025-2026 Dodge Ram 2500 4WD (w/diesel engine) Fox 2.5 Performance Elite Coilover Lift Kit by BDS Suspension

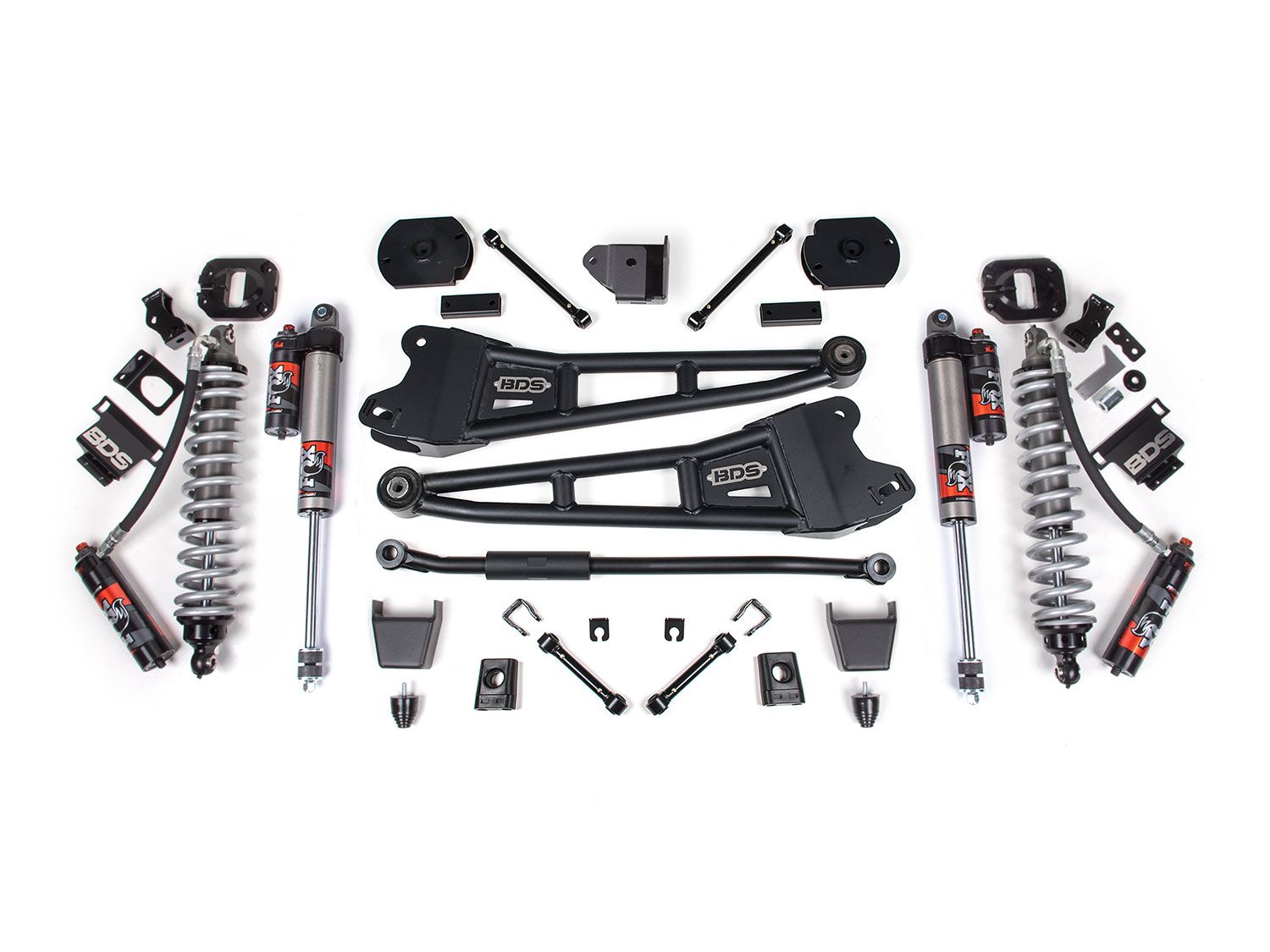

BDS Suspension's BDS1624PESB / BDS1624PES 3" Radius Arm Lift Kit upgrades suspension performance, strength, and off-road capability on RAM 2500 trucks with a premium coilover conversion system and heavy-duty components. Designed for serious off-road use while maintaining excellent on-road manners, this system replaces the factory setup with a high-performance suspension package built to handle aggressive terrain and demanding driving conditions.

At the core of this kit is a BDS Coilover Conversion System paired with FOX 2.5 Performance Elite coilovers, delivering precise damping control, improved ride quality, and increased suspension responsiveness. In the rear, FOX 2.5 Performance Elite shocks provide balanced performance and consistent control across varying terrain. Heavy-duty tubular radius arms replace the factory arms to improve strength, correct caster, and increase ground clearance, while an adjustable front track bar allows proper axle centering after lift.

This kit is available in two configurations to match performance needs. The BDS1624PES includes factory-style rubber bump stops, ideal for daily driving and light off-road use where predictable engagement is preferred. The BDS1624PESB upgrades to FOX 2.0 Factory Race Series hydraulic bump stops, designed to absorb high-speed impacts and provide additional control when pushing the suspension to its limits in aggressive off-road environments.

Engineered for durability and full suspension performance, this lift kit provides a complete solution for drivers looking to maximize capability, control, and reliability both on and off the road.

Features and Benefits:

• 3-inch front lift / 1.25-inch rear lift
• BDS1624PESB / BDS1624PES 3" radius arm lift kit for RAM 2500
• Includes FOX 2.5 Performance Elite front coilovers and rear shocks
• BDS Coilover Conversion System improves ride quality and suspension performance
• Heavy-duty tubular radius arms correct caster and increase ground clearance
• Adjustable front track bar re-centers the front axle after lifting
• Front sway bar correction maintains proper handling characteristics
• Choice of bump stop configuration:
• BDS1624PES: factory-style rubber bump stops for controlled engagement
• BDS1624PESB: FOX 2.0 hydraulic bump stops for high-impact absorption and aggressive off-road performance
• Improves suspension articulation and overall durability
• Designed for both on-road comfort and off-road capability
• Recommended tire size: 35 x 12.5
• Recommended wheel size: 17 x 9 or 20 x 9 with 5" backspacing
