This Carli Suspension CS-DLVL-BC-CS-1419-D Backcountry 2.5 inch front leveling system for the Dodge Ram 2500 4wd diesel models is a leveling kit that lifts the front end to sit level with the rear. More importantly this high end leveling kit will improve ride quality and performance in both on-road and off-road conditions.
Featured in this leveling system are 2.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 remote reservoir shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.
To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.
Features & Benefits:
2.5 inch front lift / 0 inch rear lift
Premium quality components
Front linear rate coil springs - with reduced linear rate to improve ride quality
Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
Shocks are fully serviceable and rebuild-able
Remote reservoir increases oil capacity for better heat management and better overall performance
Designed to improve ride quality for on-road, highway, towing/hauling and slow to mid speed off-road
Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
Front Travel = 9.5" / Rear Travel = 9.5"
Lifetime warranty on components, 1 year warranty on shocks
Allows use of up to 35 inch x 12.5 tires

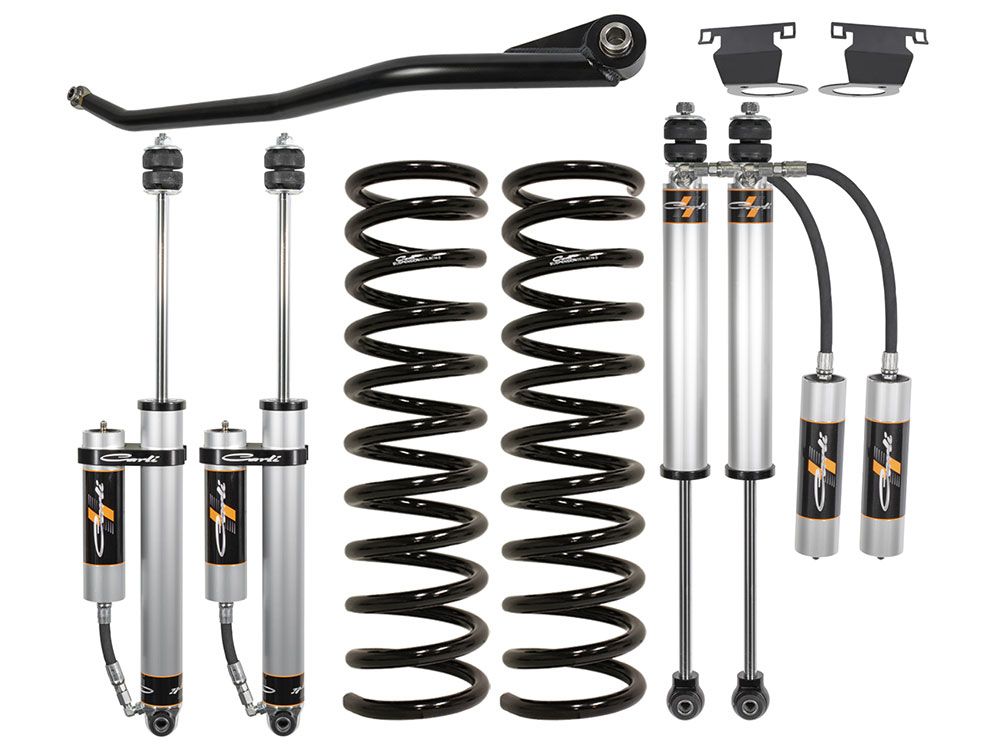

Components Included:
CS-DLRC-14-LVL-D: Front Coil Springs
CS-DLVLSPKG-CS20RR-A: Carli SPEC 2.0 Remote Resi Front & Rear Shocks, with Resi Mounts and E-Brake Relocation Brackets
CS-DATB-1419: Adjustable Track Bar
Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.
For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.
Easily the best "bang for the buck" upgrade for ride quality
Allows front suspension to move freely without giving up control
Read More
For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.
Easily the best "bang for the buck" upgrade for ride quality
Allows front suspension to move freely without giving up control
This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.
Direct bolt-in replacement
Corrects left tire pull, adjustable
Read More
This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.
This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.
Simple, Bolt-in Installation
Corrects right tire pull, adjustable
Combines with Low-Mount for opposing stabilization
Read More
This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.
Simple, Bolt-in Installation
Corrects right tire pull, adjustable
Combines with Low-Mount for opposing stabilization
These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.
12" Quad Wrap Limit Straps, For 3.25" Lift Systems
Read More
These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.
The Carli Leveling Systems do not come with radius arm drop brackets because the 2.5" lift height allows for proper caster adjustment using the factory caster adjustment. However, incorporating these Radius Arm Drop Brackets will lower the pivot point of the arms to accommodate the lift height. This action opens up the full range of caster adjustment and rectifies spring pressures, preventing any bowing of the coil spring. While not mandatory, it is strongly recommended to include these brackets for an optimal suspension setup.
Maintains critical geometries with 2.5-4" Front Lift
Heavy-Duty Construction
Bolt-On installation, no welding required
Read More
The Carli Leveling Systems do not come with radius arm drop brackets because the 2.5" lift height allows for proper caster adjustment using the factory caster adjustment. However, incorporating these Radius Arm Drop Brackets will lower the pivot point of the arms to accommodate the lift height. This action opens up the full range of caster adjustment and rectifies spring pressures, preventing any bowing of the coil spring. While not mandatory, it is strongly recommended to include these brackets for an optimal suspension setup.
Maintains critical geometries with 2.5-4" Front Lift
