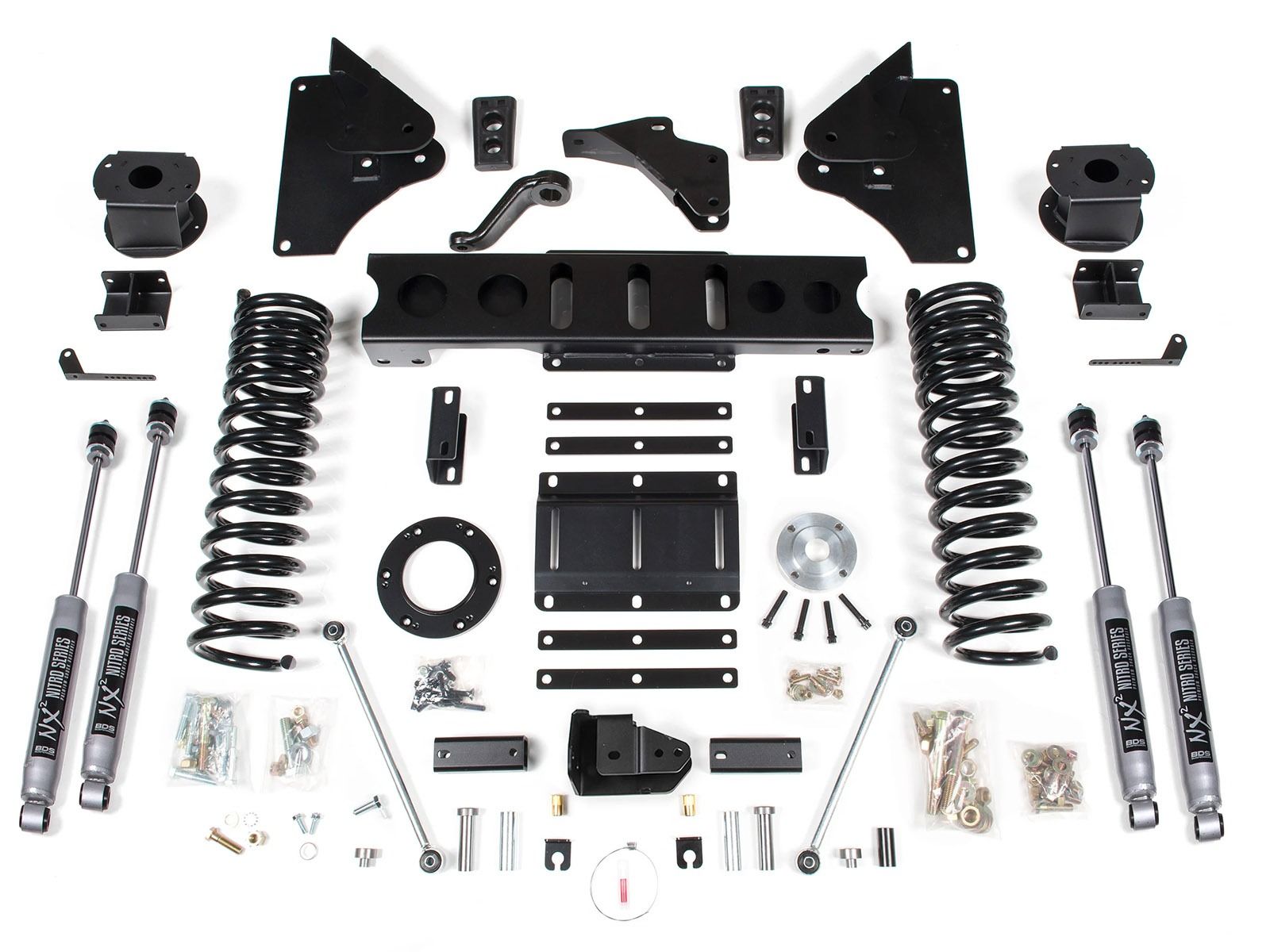

The BDS Suspension BDS1626H / BDS1626FS 8-inch 4-link premium lift kit for the 2014 through 2018 Dodge Ram 2500 diesel is an awesome way to upgrade your suspension and fit up to 40-inch tires.

The design for these kits starts with 2 massive frame brackets that provide the mounting points for the new upper and lower control arms. These brackets locate off of the factory radius arm brackets, no factory bracket removal required. The new 4-Link brackets mount similar to the current radius arm relocation brackets, wrapping the frame and nesting in the factory radius arms mounts. As with our radius arm brackets, there is a minor amount of welding required to install the threaded frame insert (1 per side). This insert is necessary to provide the strongest possible mount. The new control arm positions at the frame create better suspension geometry and reduce caster change through wheel travel compared to the radius arm setup. This creates better handling and a more controlled steering 'feel,' especially in rough terrain when the suspension can travel and articulate. The large diameter, heavy-wall tubular control arms are formed for tire clearance when turning and position the axle slightly forward from stock to create more clearance to the rear portion of the front fenders.

The new Pro-Ride front coil springs are dual-rate to provide an excellent on-road ride and off-road performance. Transfer case indexing kit, Track bar relocation, a dropped pitman arm, sway bar end links, and stainless brake lines round out the front portion of the system.

The rear is lifted using Pro Ride coil springs mounted outward 8 inches on each side to increase ride stability. The rear track bar relocation includes a new heavy-duty adjustable track bar. The track bar uses high-durometer polyurethane bushings at the frame and an adjustable forged COM bearing joint at the axle. Extended rear sway bar links round out the rear suspension components. Rounding out the rear of this kit is your choice of BDS NX2 or Fox 2.0 performance gas shocks.

Features and Benefits:

• Allows use of up to 40-inch diameter tires
• 4-Link upgrade improves handling
• Premium quality components
• Progressive Rate Front Coil Springs
• Forged Drop Pitman Arm
• Front & Rear Track Bar Relocation Brackets
• Rear coil springs are mounted outward 8 inches for increased stability
• Transfer case indexing kit
• Average install time: 8-10 hours
• Choose from BDS NX2 or Fox 2.0 Performance Shocks
• Made in the USA
• No Fine Print Lifetime Warranty
• Fits a 37 inch x 12.5 inch w/ 17 inch x 9 tires and 4.5 - 5 inch backspacing
• Fits a 37 inch x 12.5 inch w/ 18 inch x 9 tires and 4.5 - 5 inch backspacing
• Fits a 37 inch x 12.5 inch w/ 20 inch x 9 tires and 4.5 - 5 inch backspacing

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
