2" 2013-2018 Dodge Ram 1500 (w/o factory air ride) 4WD Fox Coilover Leveling Kit by BDS Suspension

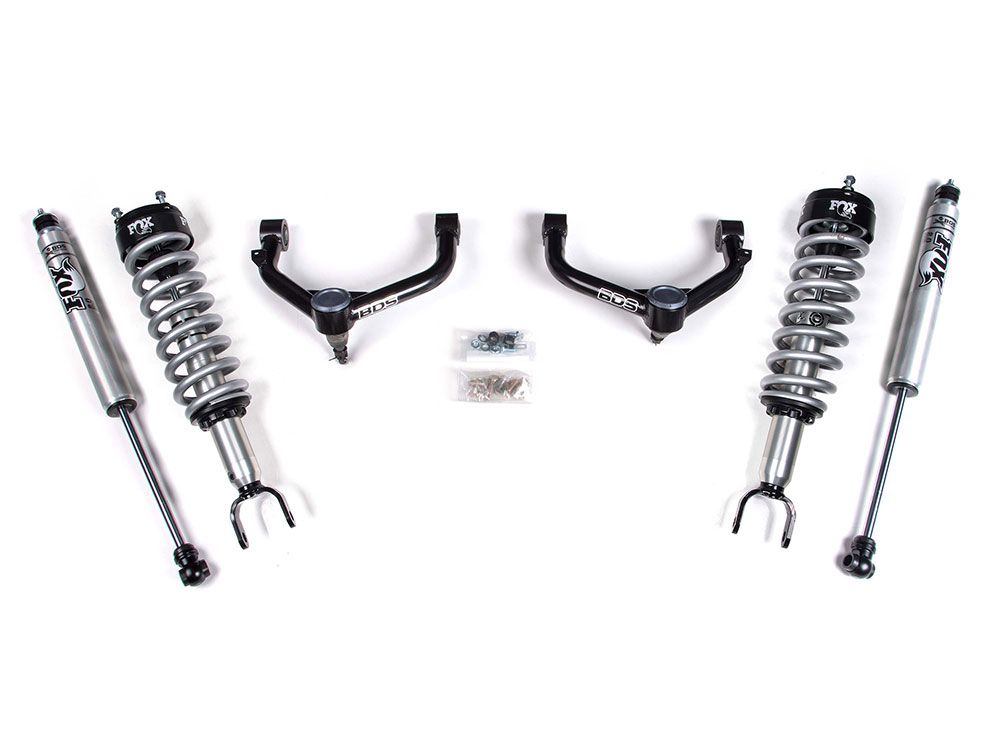

This BDS Suspension BDS1665FSL 2 inch leveling kit for the Dodge Ram 1500 will lift your vehicle enough to fit 33 x 12.5 diameter tires. Included are a pair of specially tuned Fox 2.0 Performance series coilovers. These coilovers are preset for the correct lift height right out of the box to provide optimal performance. They are a direct bolt-in replacement for the factory strut assemblies.

Also supplied as part of this 2" leveling system are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel and while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality MOOG ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. Fox Performance Series 2.0 rear shocks are included to replace the factory shocks.

Features and Benefits:

• Lifts Front 2 inches / Rear 0 inch
• Heavy Duty Upper Control Arms
• Fox 2.0 Performance Series Coilovers / Rear 2.0 Performance Shocks
• Lifetime Warranty with Factory Plus Protection (5 year / 60,000 mile drivetrain)
• Made in the USA
• No Fine Print Lifetime Warranty
• Estimated Install Time of 3hours

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Installation Instructions

1665FSL Instructions.pdf

• Will not fit vehicle equipped with factory Air Ride.
• Stock wheel/tire can be reinstalled. Stock wheel with wider 12.50 tires cannot due to clearance issue to UCA at full steering lock.
