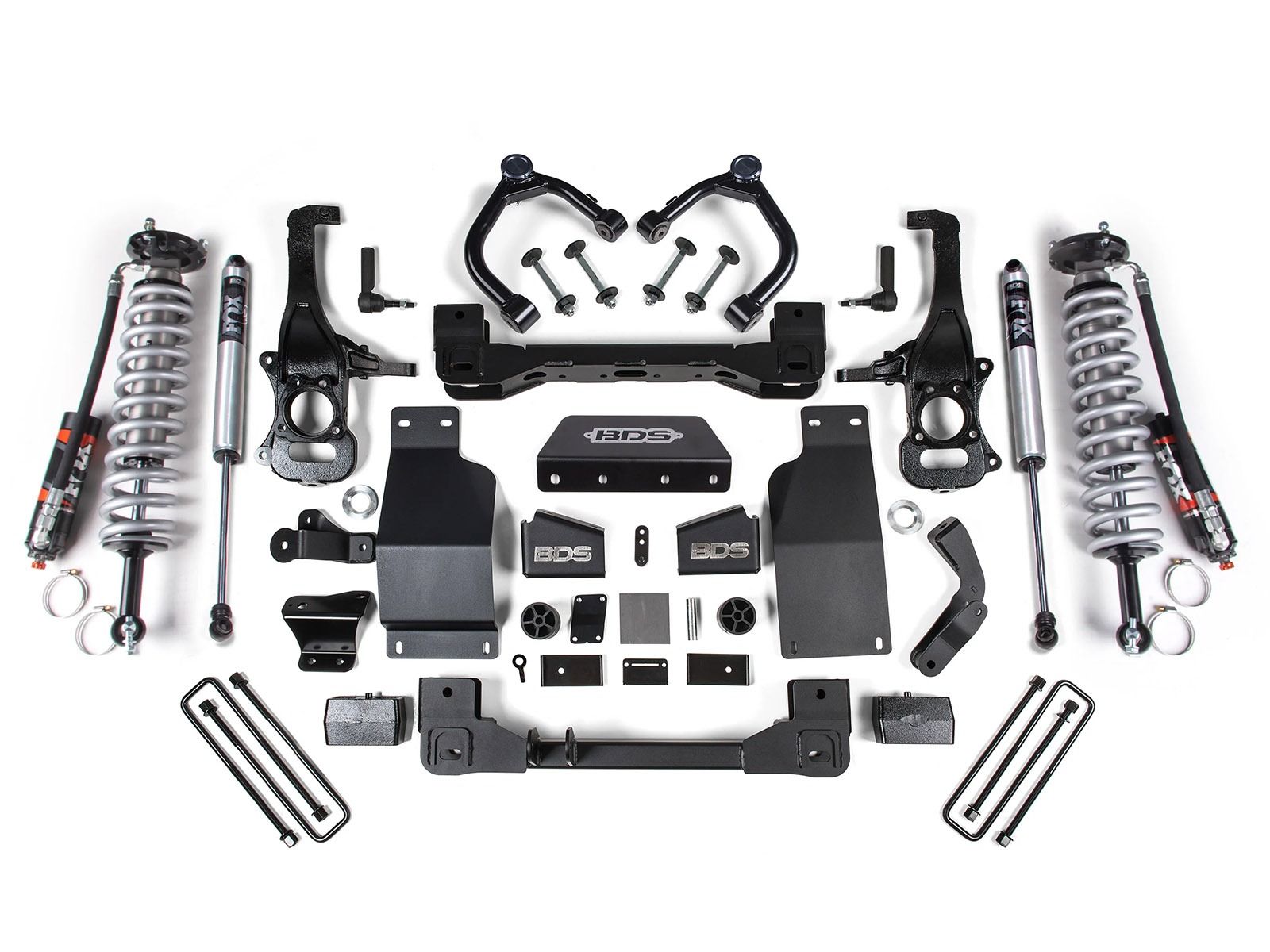

The BDS Suspension BDS1800FPE / BDS1802FPE 4 inch premium lift kit for the GMC Sierra 1500 truck is an awesome suspension upgrade that will not only allow for use of up to 35 inch tires, but also greatly improve ride quality and suspension performance. Featuring Fox 2.5 Performance Elite Series Coilovers, engineered to outperform on and off-road as they soak up any terrain thrown at them. These coilovers are equipped with DSC (Dual Speed Compression) adjustment technology built in. DSC allows for easy adjustment of the vehicle's suspension compression damping so you can dial in the perfect ride performance. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression, allowing you to make large or small changes to further improve performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir, no tools or shop adjustments needed, perfect for the trail!

Complementing the Fox Coilovers BDS utilizes a pair of specially designed 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. Paired with a 3-piece heavy duty front skid plate system, this creates a rigid subframe while adding protection for vital steering and driveline components.Specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility.

The rear this lift replaces the factory rear block with a tall lift block and longer u-bolts to lift and level the stance. BDS supplies extended brake lines to compensate for the additional lift height. Choose between specially tuned Fox 2.0 IFP Performance series gas shocks or match the performance in the front with rear Fox 2.5 Performance Elite Series Shocks with remote DSC reservoirs.

Features and benefits:

• Fox 2.5 Performance Elite coil-overs w/remote reservoir
• DSC (dual speed compression) adjustable ride quality w/turn of a dial
• 1/4 Inch Steel High Clearance Cross members
• Heavy Duty Front Skid Plate
• High Clearance design for max clearance
• Rear block replaces factory blocks
• Ductile Iron Heavy Duty Steering Knuckles
• Front Differential Relocation System
• Allows use of up 35 inch tires
• Proudly made in the USA, using only premium quality components
• Average Install Time: 8 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• Fits 35x12.50 w/20x9 tires and 5.5-6.25" back spacing
• Fits 33x12.50 w/20x9 tires and 4.5-6.25" back spacing
  • *Trimming may be required*
• All kits come finished in a durable textured black powder coat and sent with all hardware packs to complete the install along with step-by-step installation instructions

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
