2.5" 2019-2024 Chevy Silverado 1500 Trail Boss 4WD Fox Performance Elite Coilover Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1804FPE / BDS1814FPE
$4234.01
- +
4234.01

2.5" 2019-2024 Chevy Silverado 1500 Trail Boss 4WD Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1804FPE / BDS1814FPE
From $4,234.01 Regular Price $4,456.85

2.5" 2019-2024 Chevy Silverado 1500 Trail Boss 4WD Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1804FPE / BDS1814FPE
From $4,234.01 Regular Price $4,456.85


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

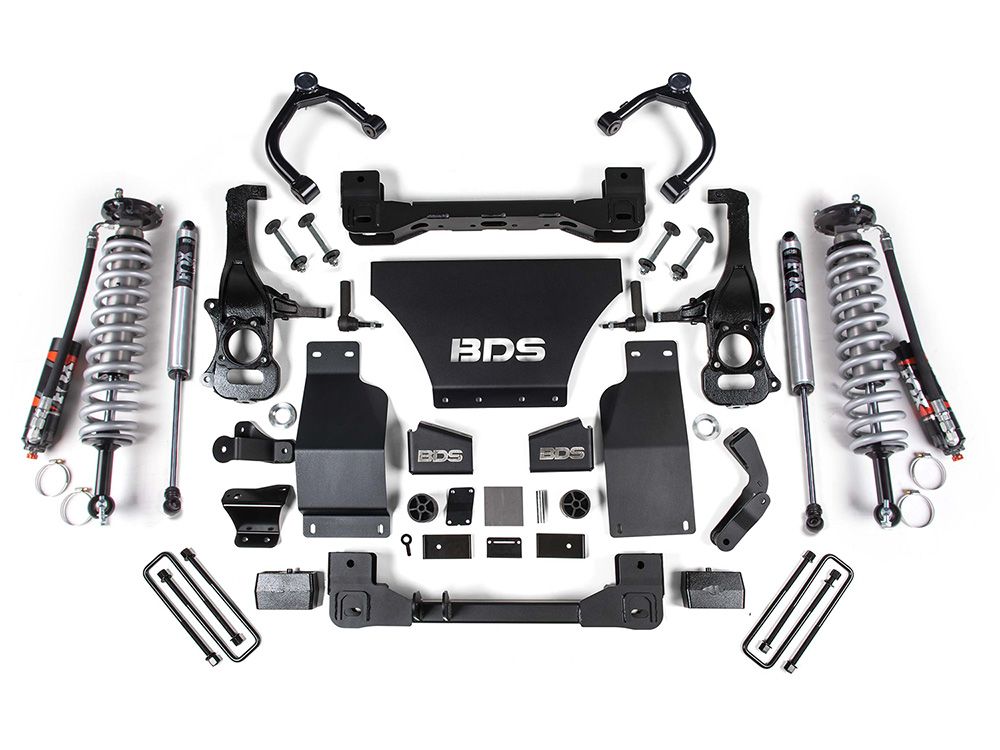

The BDS Suspension BDS1804FPE / BDS1814FPE 2.5 inch premium coil-over suspension lift kit for the Chevy Trail Boss Silverado 1500 truck will allow for fitment of up to 35 inch diameter tires for an awesome off-road look. Featuring Fox 2.5 Performance Elite remote reservoir coil-overs. These Fox 2.5 Coil-overs will enhance ride quality and handling in both on-road and off-road conditions.

This lift kit also features 1/4 inch thick steel laser cut high clearance crossmembers that are designed to give maximum clearance and provide a rock solid mounting point for the factory lower control arms. 3 piece heavy duty front skid plates connects the cross members while protect steering and driveline components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility along with tubular upper control arms. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 3 inch tall axle blocks (replacing 2.5 inch factor blocks) with extended U-bolts.

Fox 2.5 Performance Elite Coil-overs w/DSC Remote Reservoirs - These top of the line adjustable coil-overs feature a 2.5 inch diameter CNC machined 6061-T6 hard anodized aluminum body that will resist rust and allow for excellent heat dispersion. The remote reservoir increases oil capacity and house the DSC (dual speed compression) adjuster knob. This allows you to to easily adapt your coil-overs ride softness or firmness to the current terrain and vehicle load by changing high-speed and low-speed compression settings with the turn of a dial.

Features and Benefits:

  • Lifts vehicle 2.5 inch front / .5 inch rear
  • Fox Performance Elite Coilovers for greart performance and ride quality
  • 1/4 Inch Steel High Clearance Crossmembers
  • 3 Piece Heavy Duty Front Skid Plate
  • Choose between rear Fox 2.0 Performance Series Shocks or Fox 2.5 Peformance Elite Adjustable Shocks
  • Tubular upper control arms with rubber bushings and indexed ball joints
  • High Clearance design max clearance
  • 3 inch rear block replaces factory 2.5 inch block
  • Ductile Iron Heavy Duty Steering Knuckles
  • Multi-Point Front Differential Relocation System
  • Allows use of up 35 inch tires
  • Average Install Time: 8 hours
  • Proudly made in the USA, using only premium quality components
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits a 35" x 12.50" tire w/20 x 9 / 22 x 9 and 5.5"- 6.25" back spacing
  • Fits a 33" x 12.50" tire w/20x9 / 22 x 9 and 4.5" - 5.5" - 6.25" back spacing
  • Fits a 33" x 12.50" tire w/17x9 / 18x9 and 4.5" back spacing
    • *Trimming may be required*

Fox 2.5 Performance Elite Coilover Benefits

  • Greatly improves suspension performance and ride quality in both on and off-road conditions
  • 6061 Aluminum 2.5 inch diameter body dissipates heat three times faster than a steel body
  • DSC Adjuster - Allows you to fine tune your ride with a turn of a dial (w/ multiple fast and low speed compression settings)
  • 7/8 inch chrome plated shaft
  • Application specific valving
  • Remote reservoir increases oil capacity for improved performance
  • Hard-Anodized Finish
  • Fully rebuild-able

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Fox 2.5 Performance Elite Adjustable Shocks
The Fox 2.5 Performance Elite shocks provide a serious suspension upgrade. The 2.5 inch diameter aluminum body and external reservoir dramatically increase oil volume to fight heat building in extreme conditions. With the turn of a knob you can adjust compression settings for various types of terrain, load and speed conditions.
Important Notes
  • Will not fit Adaptive Ride Control (ARC) equipped models
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
  • 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod
  • Front skid plate will not work with 2.7L Turbo Engines.
  • Vehicle Fitment
    MakeChevy
    ModelSilverado 1500 Trail Boss
    Year Fitment2024, 2023, 2022, 2021, 2020, 2019
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1804FPE / BDS1814FPE
    Item Numberbds_bds1804fpe-1814fpe
    Product LineLift Kits
    Lift Height2.5 inch
