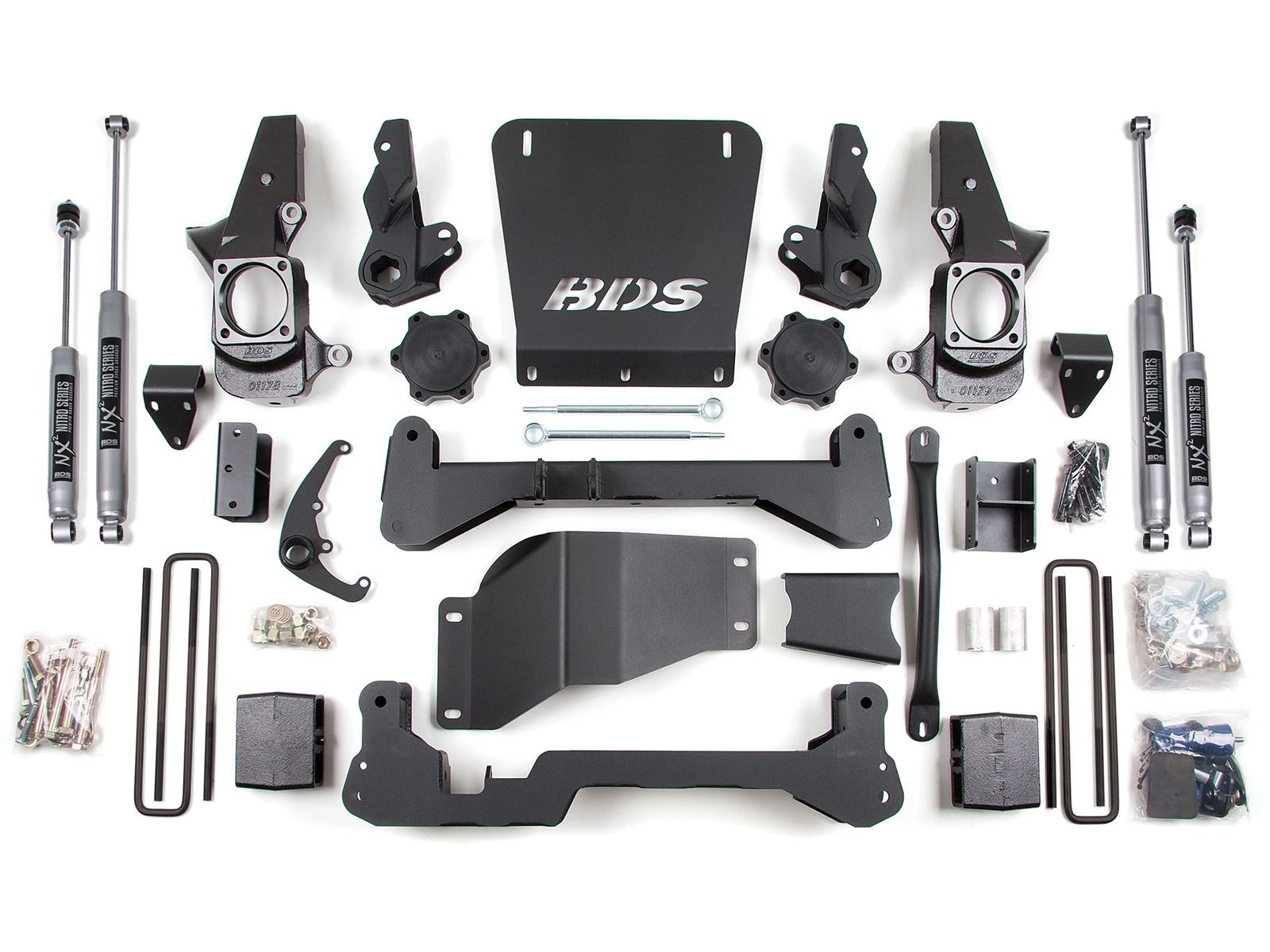

7" 2001-2006 GMC Sierra 1500HD 4WD High Clearance Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 189H
As low as $1,914.53 Regular Price $2,393.16

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS 189H 7 inch suspension lift kit for the GMC Sierra 1500HD in the year range 2001 to 2006 features the unique High Clearance high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember. CNC-machined ductile iron steering knuckles, a heavy duty differential skid plate and differential drop brackets are included for proper alignment and geometry in the front end.

The rear is lifted with a flat 5 inch block for easy installation or upgrade to Glide-Ride Leaf Springs for reduced axle wrap and more control while towing. Also choose between standard or narrow track knuckles The standard knuckle widens the track (front tires and wheels will sit out further from the truck), but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall, but does increase the turning radius slightly.

Features and Benefits:

  • Allows for use of up 37 inch tires (with proper wheel width & back spacing)
  • Premium Quality Components
  • Optional Fox 2.0 Performance Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Rear blocks or upgrade to Glide-Ride leaf springs
  • Machined Cast Iron Knuckles
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • NHTSA FMVSS No.126 compliant (compatible with Electronic Stability Control)
  • Estimated Install Time: 8-10 Hours
  • Fits a 35 inch x 12.50 inch tire w/16 x 8 and 4-1/2 inch back spacing
  • Fits a 35 inch x 12.50 inch tire w/17 or 18 x 9 and 5.5 inch back spacing
  • Fits a 37 inch x 12.50 inch tire w/20 x 9 and 5.75 inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Installation Instructions

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important Notes
  • 20 inch wheels with 5 inch - 5.75 inch backspacing recommended to reduce trimming. Gas models require exhaust modification.
  • Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4 inch to 8 inch of lift.
  • Requires frame bracket modification and differential mount modification.
  • Narrow track knuckle will slightly increase turning radius.
  • Torsion Bar tool required to load/unload the torsion bars.
  • Rear box will not fit dually applications.
  • Some welding required.
  • Vehicle Fitment
    MakeGMC
    ModelSierra 1500HD
    Year Fitment2006, 2005, 2004, 2003, 2002, 2001
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number189H
    Item Numberbds_189h
    Product LineLift Kits
    Lift Height7 inch
