3-4.5" 2021-2026 Ford Bronco 4WD Fox 2.5 HTO Coilover Lift Kit by BDS Suspension

Take your Bronco to the next level with the BDS 1905FPE / 2245FPS 3–4" Coilover Lift Kit for Ford Bronco. This system is engineered to improve stance, performance, and capability while maintaining everyday drivability. With clearance for up to 37" tires, it’s the perfect blend of style and function.

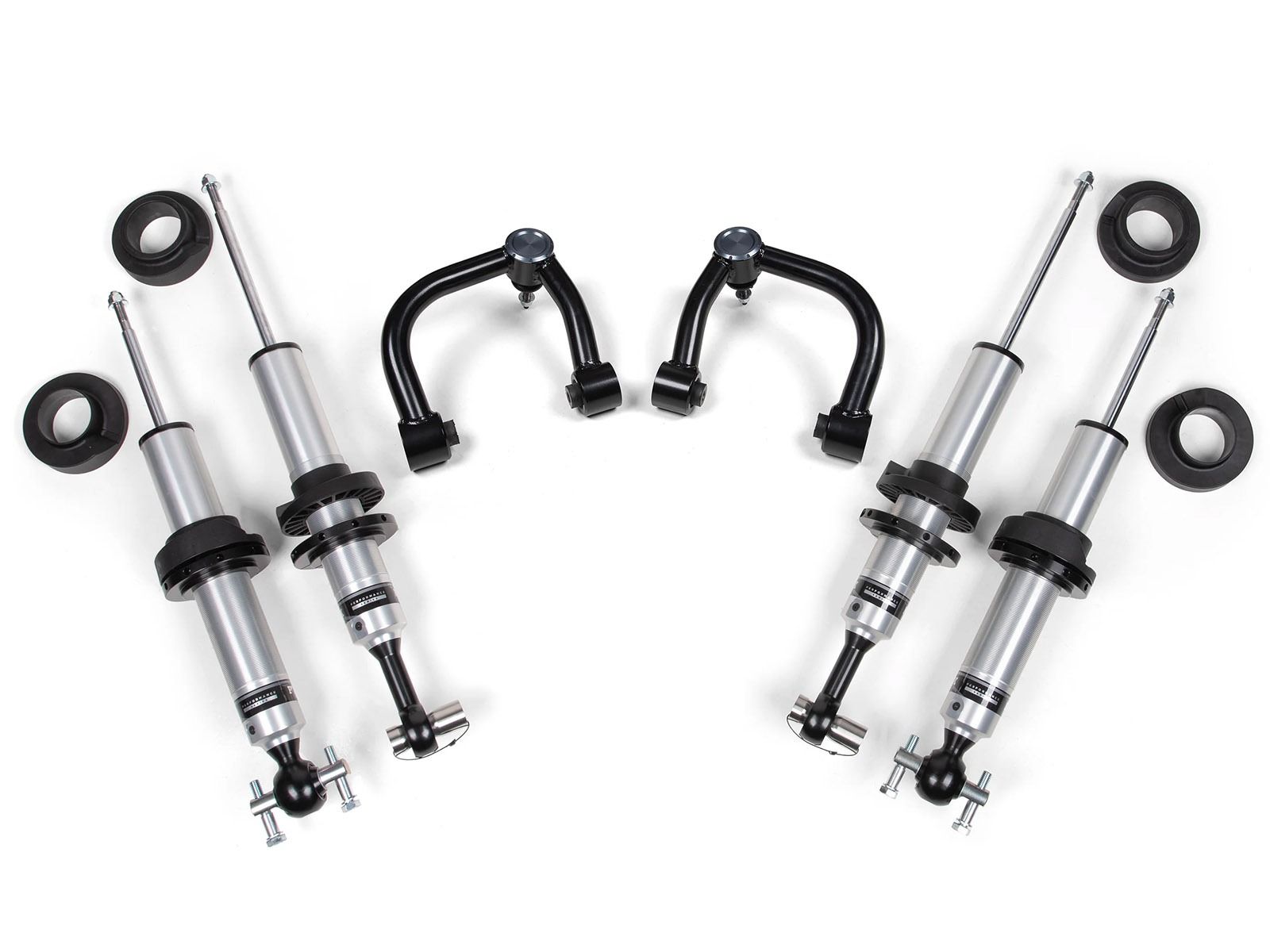

The kit features FOX 2.5 HTO coilovers designed specifically for the Bronco platform. These 2.5" coilovers reuse the factory coil springs, offering a cost-effective upgrade that retains OE spring rates while significantly improving damping control. Complementing the coilovers are heavy-duty tubular upper control arms that correct suspension geometry and increase travel.

Net lift height varies by trim:
Sasquatch 2-door models = 3.5-inches
Sasquatch 4-door models = 3-inches
Non-Sasquatch 2-door models = 4.5-inces
Non-Sasquatch 4-door models = 4-inches

FOX 2.5 HOSS/HTO Coilovers

Purpose-built for the Bronco, these coilovers feature a large 2.5" diameter body for increased oil capacity and consistent damping. By utilizing the factory coil springs, the system maintains OE ride characteristics while boosting control, comfort, and durability. Tuned specifically for Bronco applications, they deliver a plush ride on-road and improved performance when the terrain gets rough—all without the added complexity of remote reservoirs or compression adjusters.

HD Upper Control Arms (UCAs)

Heavy-duty tubular UCAs are engineered for strength, improved travel, and proper suspension geometry. Constructed from 1.5" OD x .120-wall steel, these arms feature premium ball joint or uniball options, maintenance-free rubber bushings at the frame end, and a durable black powder coat finish for long service life.

Features & Benefits

• 3-inch to 4.5-inch lift, depending on submodel (see notes above)
• Made in the USA for superior craftsmanship and reliability.
• FOX 2.5 HTO coilovers front and rear, tuned for Bronco applications.
• Reuses factory coil springs for OE spring rate retention and cost savings.
• Performance UCAs with uniball or ball joint options for added strength and travel.
• Factory Protection Plus drivetrain warranty included.
• 100% bolt-on installation, no cutting or welding required.

Recommended Tires & Wheels

(Trimming may be required; fitment may vary by wheel offset, tire brand, and Bronco package.)

• 37 x 12.50R17 on 17x9 wheels with 5.5" backspacing
• 37 x 12.50R18 on 18x9 wheels with 5.5" backspacing
• 37 x 12.50R20 on 20x9 wheels with 5.5" backspacing

UCA Options

Uniball

Spherical uniballs are designed for hardcore off-road and racing use. They provide maximum strength and wheel travel but are exposed to the elements, requiring more frequent maintenance.

Ball Joint

OE-style sealed ball joints offer smooth, quiet operation and reduced maintenance. Greaseable versions are available, making them a practical choice for daily-driven Broncos that still see off-road duty.
