4.5" 2001-2010 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS192H
- +

4.5" 2001-2010 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS192H
From $1,894.93 Regular Price $1,933.60

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

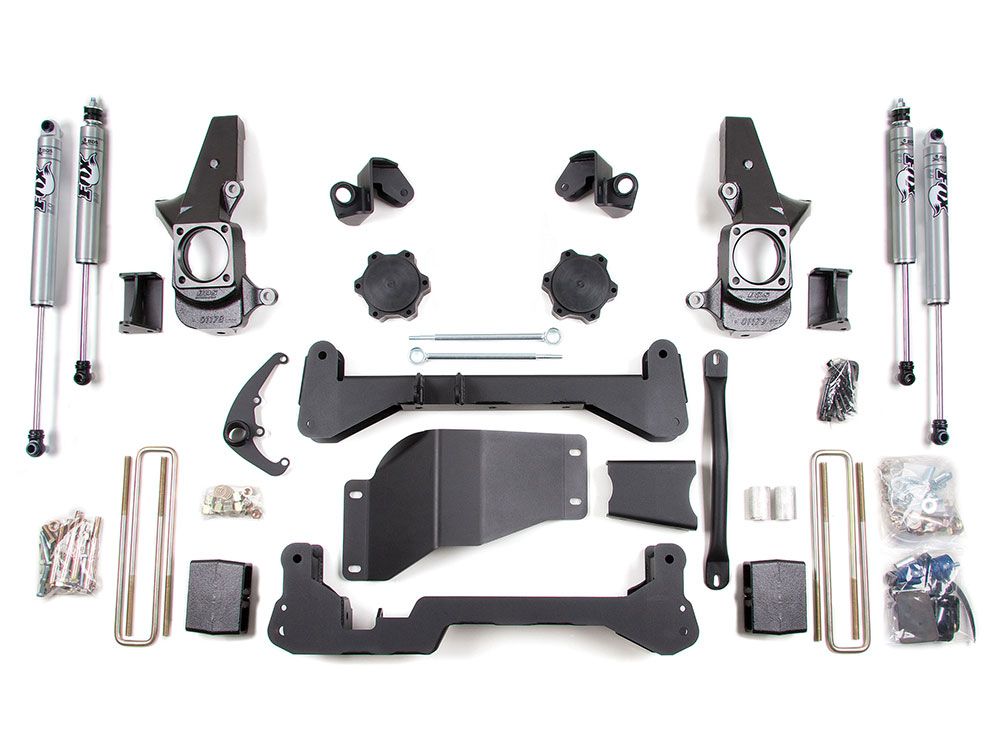

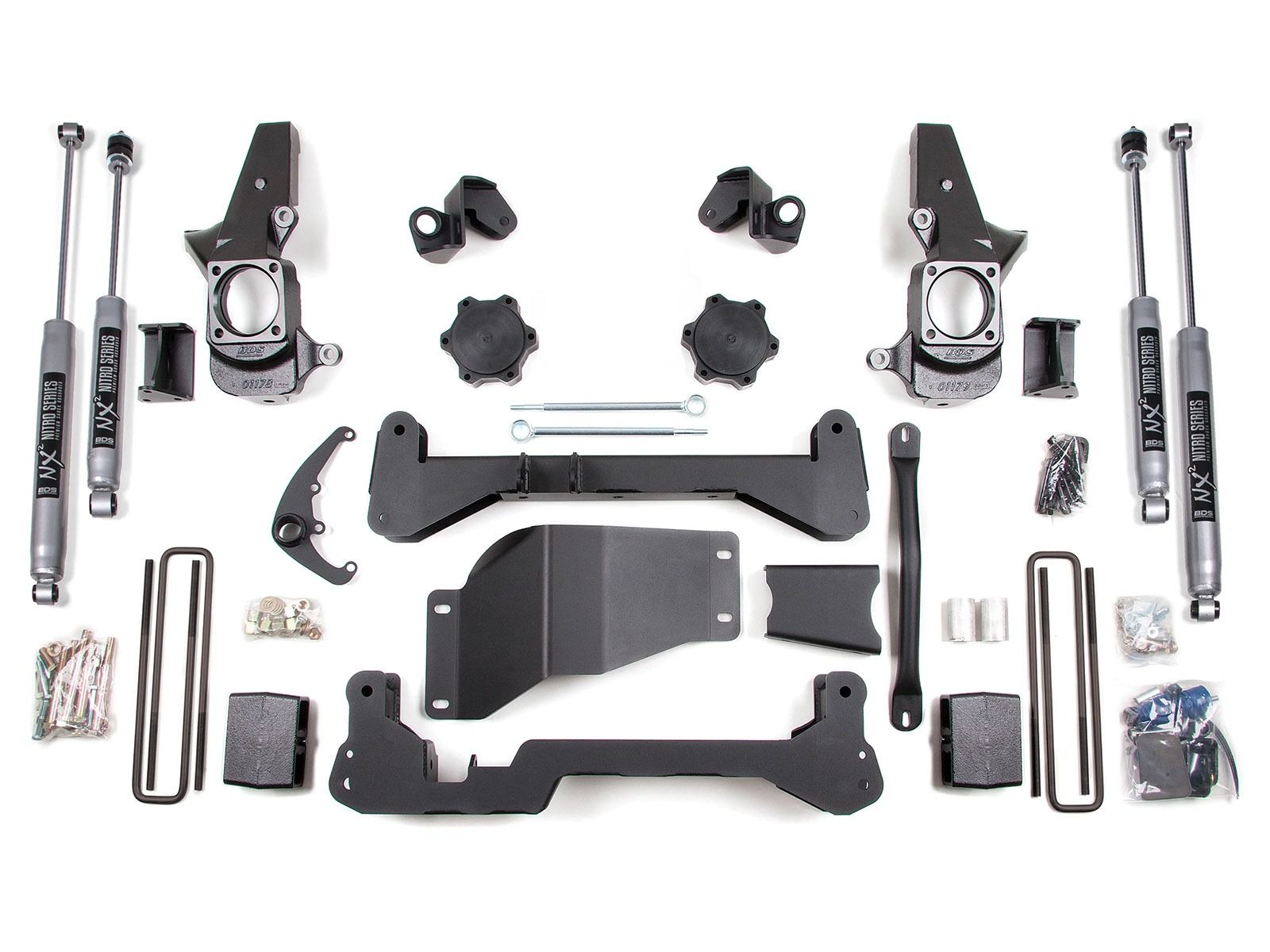

The BDS Suspension BDS192FS / BDS192H 4.5 inch High Clearance lift kit for the GMC Sierra 2500HD / 3500HD is a premium suspension upgrade that will allow for use of up to 35 inch diameter tires. The high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look. This will greatly increase ground clearance of the front crossmembers and improving operating geometry. A front differential skid plate comes standard, for increased off road protection.

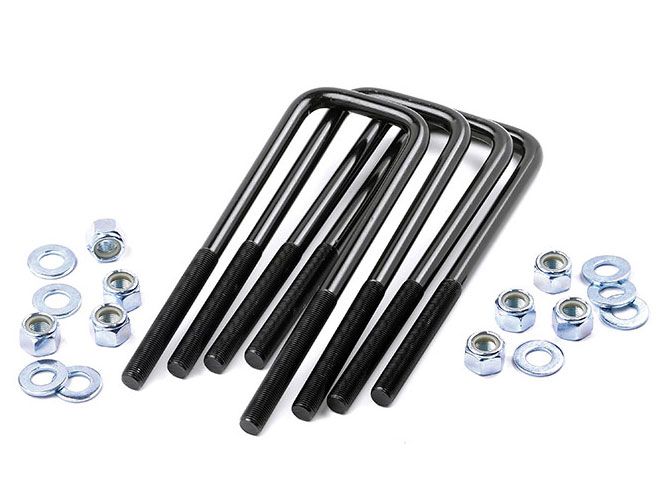

This complete suspension lift kit also comes with front and rear shocks absorbers (choose between BDS NX2 or upgrade the the awesome Fox 2.0 Performance Series shocks) and ductile steering knuckles correcting steering geometry to factory angles. A heavy duty front differential skid plate is also included for extreme off road protection. The rear lift is accomplished with 3" lift blocks and extended ubolts.

Features and Benefits:

  • 4.5 inch front lift / 3 inch rear lift
  • Cast Iron Steering Knuckles
  • One-Piece Front & Rear High Clearance Crossmembers
  • Heavy duty front differential skid plates
  • NX2 or Fox 2.0 Shocks available
  • Made in the USA
  • Takes up to 8-10 hours for installation
  • Fits a 33" x 12.50" tire w/16 x 8 and 4.5" back spacing
  • Fits a 35" x 12.50" tire w/17 x 8, 18 x 9, 20 x 9 and 5.5" - 5.75"
    • *May require trimming*

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important Notes
  • Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift.
  • For tail high stance use #119157 add-a-leaf with the block kit or #069207 with leaf spring kit.
  • 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
  • Requires frame bracket modification and differential mount modification.
  • Narrow track knuckle will slightly increase turning radius.
  • Torsion Bar tool required to load/unload the torsion bars.
  • Gas models require exhaust modification.
  • Some welding required.
  • Vehicle Fitment
    ModelSierra 2500HD, Sierra 3500HD
    Year Fitment2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS192H
    Item Numberbds_bds192h
    Product LineLift Kits
    Lift Height4 inch
