7" 2001-2010 GMC Sierra 2500HD 4WD High Clearance Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!

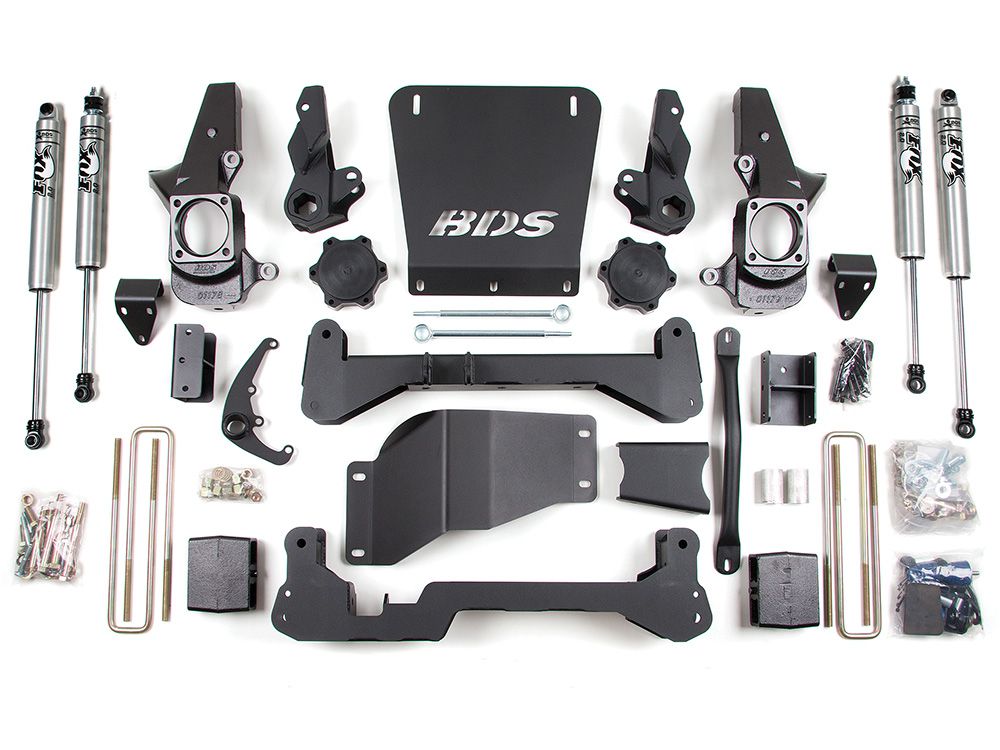

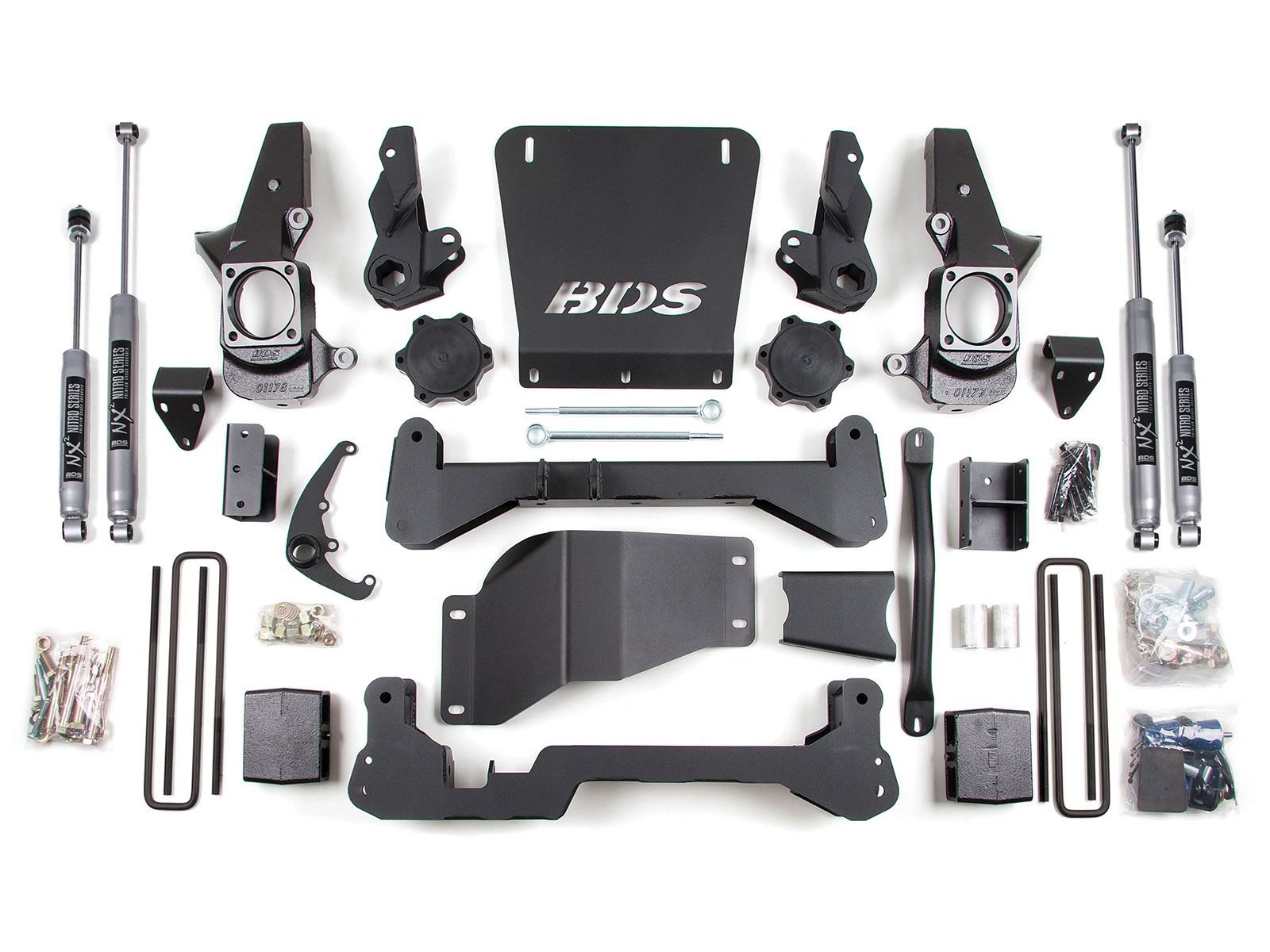

The BDS Suspension BDS189H 7 inch suspension lift kit for the GMC Sierra 2500HD in the year range 2001 to 2010 features the unique High Clearance high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember. CNC-machined ductile iron steering knuckles, a heavy duty differential skid plate and differential drop brackets are included for proper alignment and geometry in the front end.
The rear is lifted with a flat 5 inch block for easy installation or upgrade to Glide-Ride Leaf Springs for reduced axle wrap and more control while towing. Also choose between standard or narrow track knuckles The standard knuckle widens the track (front tires and wheels will sit out further from the truck), but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5" overall, but does increase the turning radius slightly.
Features and Benefits:
BDS Suspension Lift Kit Warranty
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
|Year Fitment||2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001|
|Manufacturer Part Number||BDS189H|
|Product Line||Lift Kits|
|Lift Height||7 inch|
