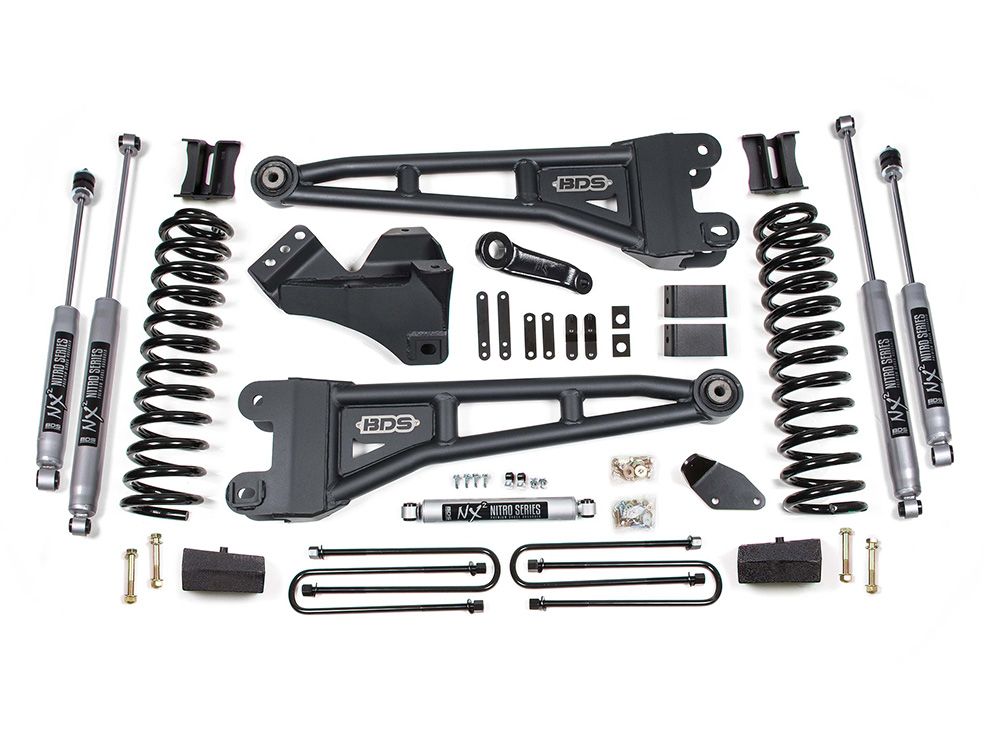

4" 2008-2010 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1937H / BDS1937FS
$1552.64
- +
1552.64

4" 2008-2010 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1937H / BDS1937FS
From $1,552.64 Regular Price $1,634.36

4" 2008-2010 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1937H / BDS1937FS
From $1,552.64 Regular Price $1,634.36


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

The BDS Suspension BDS1937H is an excellent method to lift your 2008 through 2010 Ford F250 / F350 to allow for the use of up to 35-inch diameter tires. These replacement arms are far superior to the factory-stamped steel units, built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets. Featuring a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 4 inches while maintaining performance and ride quality. A forged drop pitman arm and a supplied integrated drag link flip correct steering angles. The front axle remains centered using a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by lift blocks that feature integrated bump stop wings and e-coated extended u-bolts. Upgrade to Glide-ride leaf springs with integrated overload leaves to lift the rear.

All possible SKUs based on options selected: BDS1937H BDS1937FS BDS1938H BDS1938FS BDS1939H BDS1939FS BDS1940H BDS1940FS BDS1941H BDS1941FS BDS1942H BDS1942FS

Features and Benefits:

  • 4-inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pitman arm to correct steering angles
  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 35-inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits 35" x 12.50" tires w/18 x 9 and 4.5"-5" backspacing
  • Fits 35" x 12.50" tires w/20 x 9 and 4.5"-5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
2. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
3. 5" Block included to replace factory block.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2010, 2009, 2008
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1937H / BDS1937FS
Item Numberbds_bds1937h
Product LineLift Kits
Lift Height4 inch
