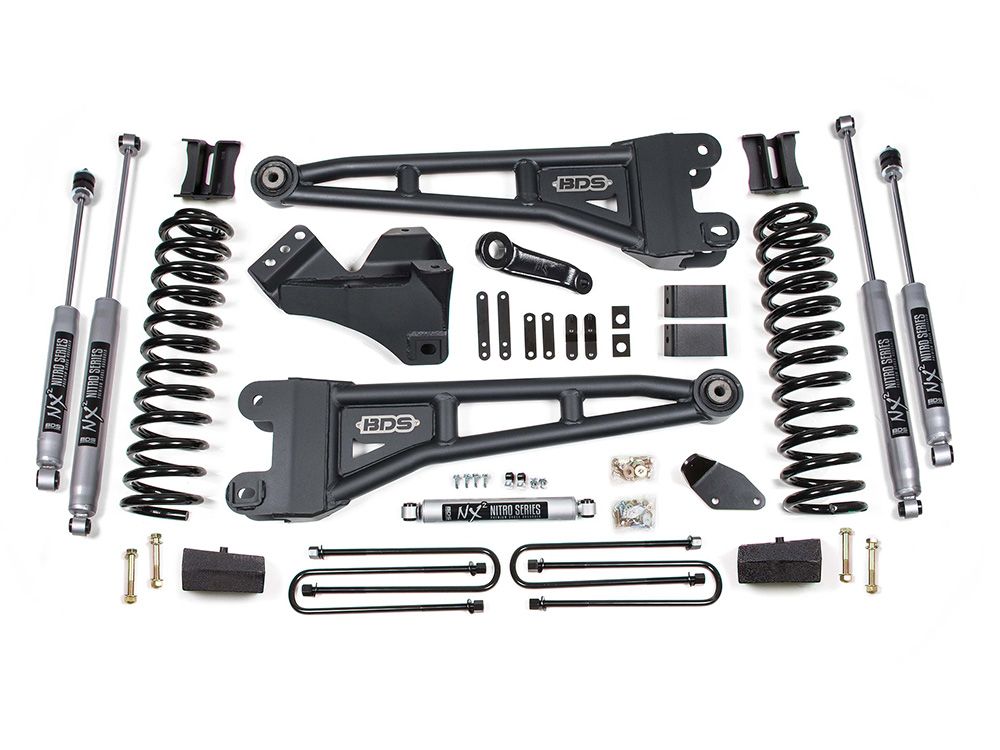

The BDS Suspension BDS1953H  is an excellent method to lift your Ford F250 / F350 to allow for the use of up to 37-inch diameter tires. Built around heavy-duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory-stamped steel units. It features a high clearance design for extra ground clearance and is formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and repositioning the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pitman arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use of a 1/4" thick heavy-duty track bar drop bracket. Also included for the front suspension is a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets, and an NX2 series steering stabilizer with a mounting bracket.

In the rear, the factory blocks are replaced by a pair of lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts. You can also upgrade to Glide-ride leaf springs with integrated overload leafs to lift the rear.

All possible SKUs depending on options selected: BDS1953H, BDS1953FS, BDS1954H, BDS1954FS, BDS1955H, BDS1955FS, BDS1956H, BDS1956FS, BDS1957H, BDS1957FS

Features and Benefits:

• 6-inch Pro-Ride Coil Springs feature smooth ride, top performance
• Heavy Duty 1 3/4 inch tubular radius arms
• High clearance arms for maximum clearance
• Forged drop pitman arm to correct steering angles
• Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
• Allows use of up to 37-inch tires
• Average Install Time: 6 hours
• No Fine Print Lifetime Warranty
• Factory Protection Plus
• 37" x 12.50" w/17 x 9 and 4.5" backspacing
• 37" x 12.50" w/18 x 9 and 4.5" backspacing
• 37" x 12.50" w/20 x 9 and 4.5" backspacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
