6" 2005-2007 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1943H / BDS1943FS / BDS1948H / BDS1948FS
$1517.67
- +
1517.67

6" 2005-2007 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1943H / BDS1943FS / BDS1948H / BDS1948FS
From $1,517.67 Regular Price $1,597.55

6" 2005-2007 Ford F250/F350 4WD Radius Arm Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1943H / BDS1943FS / BDS1948H / BDS1948FS
From $1,517.67 Regular Price $1,597.55


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

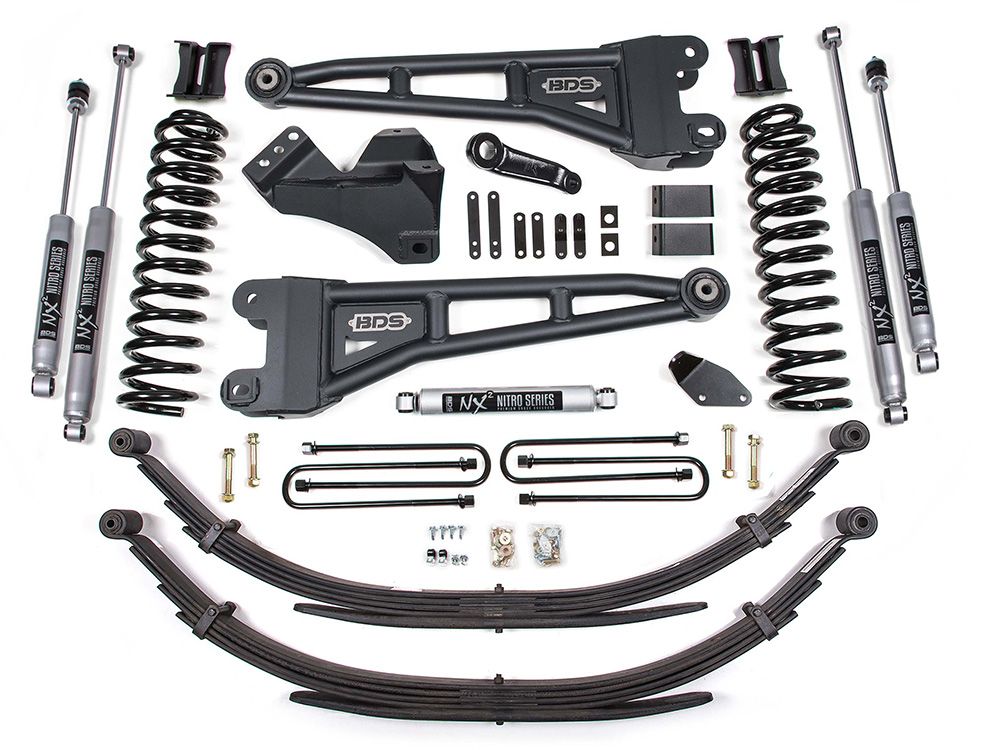

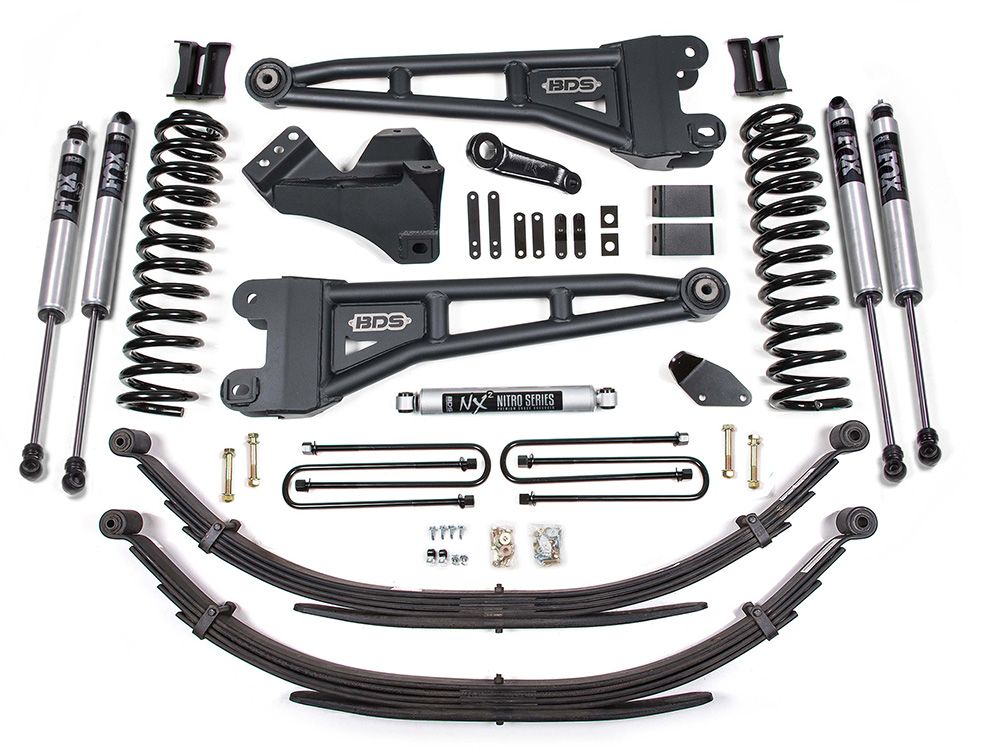

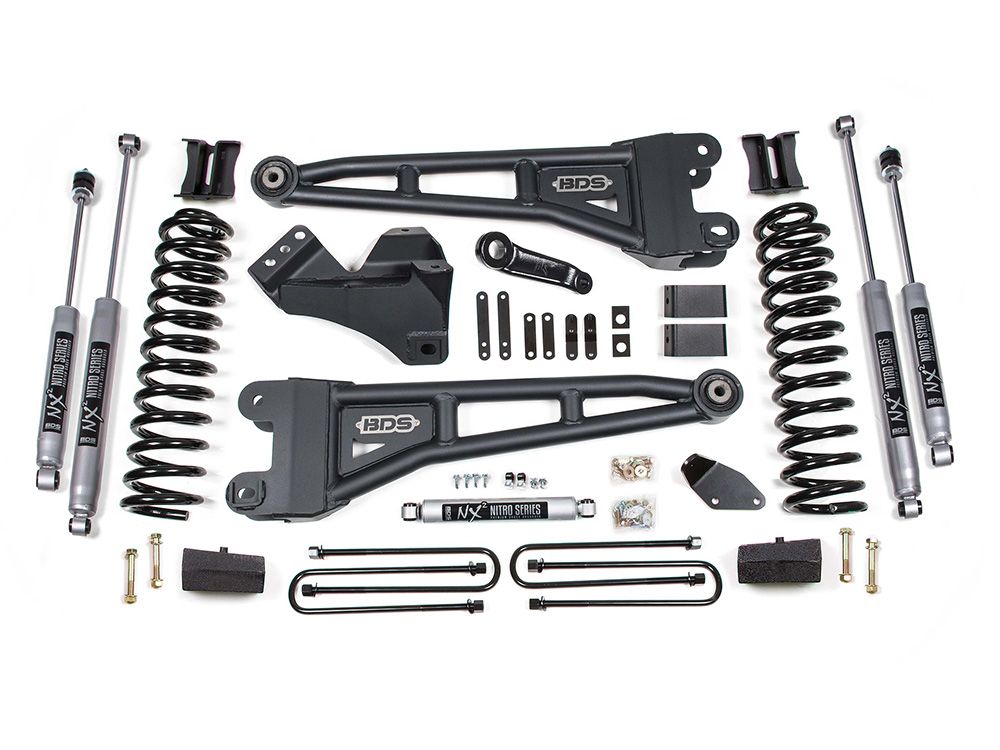

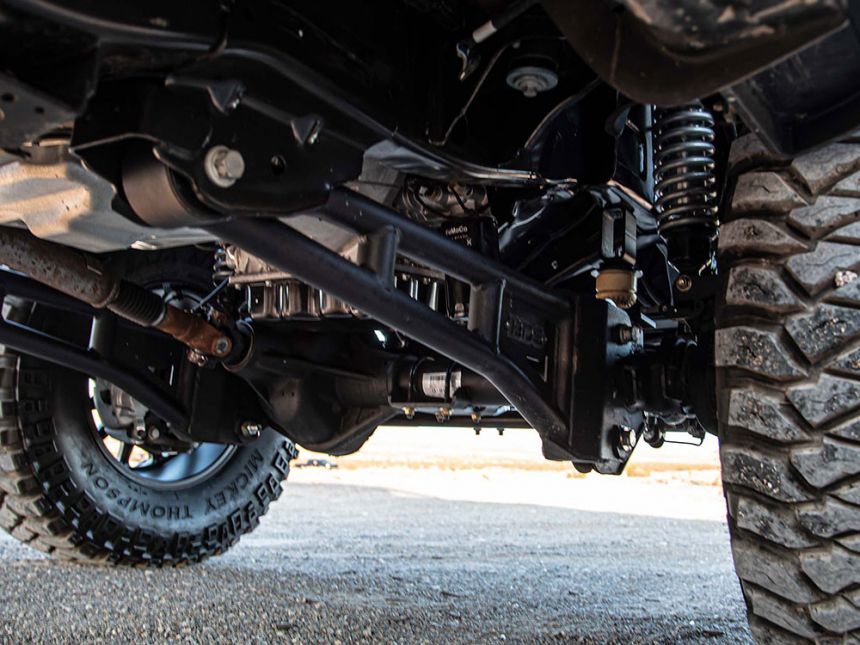

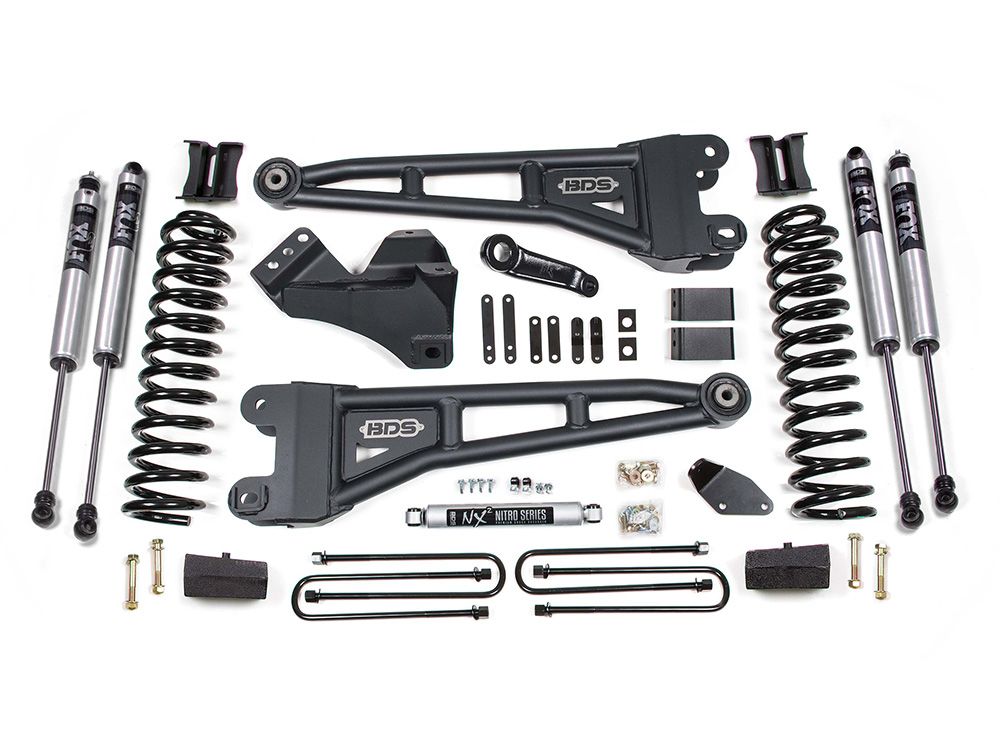

The BDS Suspension BDS1943FS / BDS1943H is an great method to lift your Ford F250 / F350 to allow for use of up to 37 inch diameter tires. Built around heavy duty radius arms that use 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. Featuring a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. The arms correct the caster angle by bolting into the factory mounting points and reposition the front axle.

BDS Pro-Ride front coil springs lift the front end 6 inches while maintaining performance and ride quality. A forged drop pit man arm corrects steering angles along with a supplied integrated drag link flip. The front axle remains centered with the use a of 1/4" thick heavy duty track bar drop bracket. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket.

In the rear the factory blocks are replaced by a pair of lift blocks that feature integrated bump stop wings along with e-coated extended u-bolts. You can also upgrade to Glide-ride leaf springs with intergrated overload leafs to lift the rear.

Features and Benefits:

  • 6 inch Pro-Ride Coil Springs feature smooth ride, top performance
  • Heavy Duty 1 3/4 inch tubular radius arms
  • High clearance arms for maximum clearance
  • Forged drop pit man arm to correct steering angles
  • Choose between BDS NX2 Nitro Gas or Fox 2.0 Performance Shocks
  • Allows use of up to 37 inch tires
  • Average Install Time: 6 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • 37" x 12.50" w/17 x 9 and 4.5" back spacing
  • 37" x 12.50" w/18 x 9 and 4.5" back spacing
  • 37" x 12.50" w/20 x 9 and 4.5" back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

All Possible SKUs Depending on Options Selected: BDS1943H, BDS1943FS, BDS1945H, BDS1945FS, BDS1947H, BDS1947FS, BDS1948H, BDS1948FS, BDS1950H, BDS1950FS, BDS1952H, BDS1952FS

Important Notes1. Removal of the factory block is required.
2. Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
3. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
4. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
5. Although extremely rare, front driveline vibration may occur.
6. Front exhaust modification may be required to clear the front driveshaft on gas models.
7. U-bolts will not fit dually models.
8. Dropped pitman arm will not fit 10 lug wide track F350 models.
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2007, 2006, 2005
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS1943H / BDS1943FS / BDS1948H / BDS1948FS
Item Numberbds_bds1943h
Product LineLift Kits
Lift Height6 inch
