9" 2020-2022 Ford F250/F350 4WD 4-Link Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS1959FS / 1959H
$3816.51
- +
3816.51

9" 2020-2022 Ford F250/F350 4WD 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1959FS / 1959H
From $3,816.51 Regular Price $3,894.40

9" 2020-2022 Ford F250/F350 4WD 4-Link Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS1959FS / 1959H
From $3,816.51 Regular Price $3,894.40


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

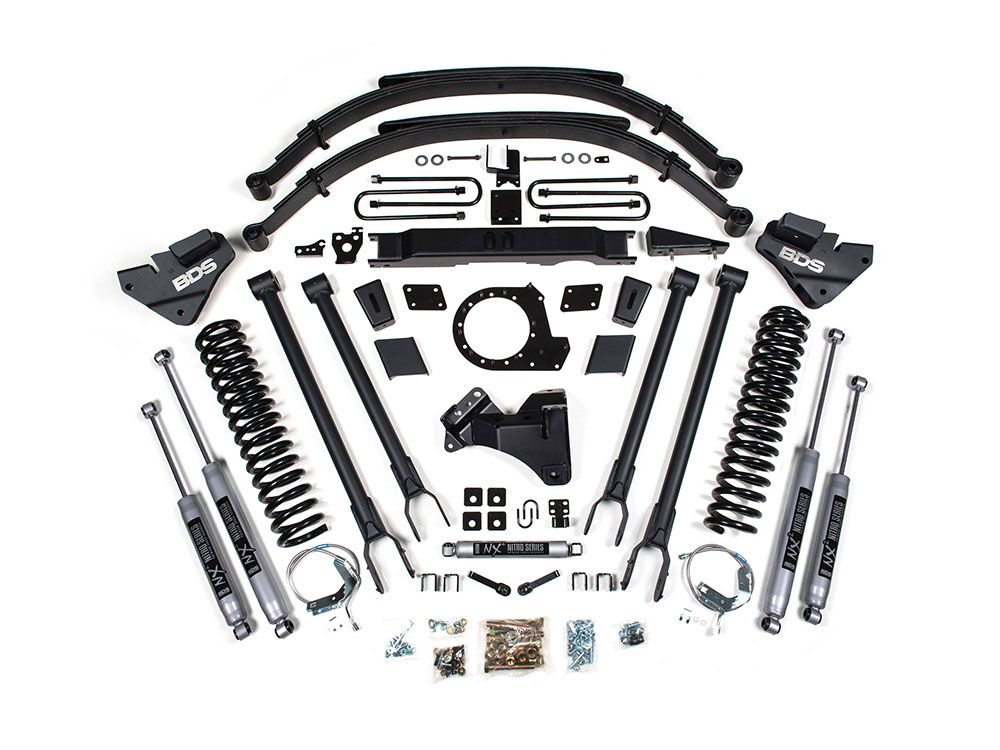

The BDS Suspension BDS1959FS / BDS1959H 9-inch 4-link arm lift kit for the Ford F250 / F350 Diesel models will allow for tires up to 40 inches in diameter. This premium suspension system is designed to replace the factory radius arms with BDS's 4-link arm conversion. This will give your truck's wheel travel improved stability, strength, and caster control with the ability to tame any off-road trail. BDS Pro-Ride front coil springs lift the front end 9 inches while maintaining performance and ride quality. The front axle remains centered using a heavy-duty track bar relocation bracket. A forged drop pitman arm supports proper steering angles.

The rear Glide Ride rear leaf springs replace the factory leaf springs. These springs are 4-leaf with integrated overload leaves for extra load capacity. They come fully assembled with bushings installed for easy installation and a smooth ride on and off-road.

All possible SKUS based on options selected: BDS1959H, BDS1959FS, BDS1960H, BDS1960FS

Features and Benefits:

  • 9-inch Pro-Ride Coil Springs feature smooth ride, top performance
  • 4-LInk Conversion Kit (replaces factory radius arms) for unmatched performance
  • Better stability, strength, and caster during front wheel travel
  • Rear Glide Ride leaf springs for a smooth ride and load support
  • Front track bar bracket to center axle
  • BDS NX2 or Fox 2.0 Performance Shocks
  • Allows use of up to 40-inch tires
  • Average Install Time: 8 - 10 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus
  • Fits a 38" x 15.50" tire w/20 x 10 and 5" backspacing
  • Fits a 40" x 13.50" tire w/20 x 10 and 5" backspacing
    • *Trimming may be required*

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty.'

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
ProRide Coil Springs
This kit includes the BDS ProRide Coil Springs. Designed to not only lift your vehicle, but also improve ride and overall performance. Featuring an optimized spring rate for a smooth on-road ride and stability in harsh terrain.
Ford 4-Link Long Arm Upgrade
This awesome upgrade replaces Ford factory radius arms with a 4-link long arm control arm system. This gives superior handling and ride control by giving consistant caster angle through full wheel travel. Controlling the axle movement with independent upper and lower links.
Important Notes
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS_123402)
  • 40 x 13.50 tires WILL require trimming.
  • Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
  • If your truck is equipped with a factory rear sway bar add: 123009
  • Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
  • Vehicle Fitment
    MakeFord
    ModelF250, F350
    Year Fitment2022, 2021, 2020
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS1959FS / 1959H
    Item Numberbds_bds1959h
    Product LineLift Kits
    Lift Height9 inch
