6.5" 2011-2019 GMC Sierra 2500HD/3500HD 4WD & 2WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS196H
- +

6.5" 2011-2019 GMC Sierra 2500HD/3500HD 4WD & 2WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS196H
From $2,401.44 Regular Price $2,450.45

free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

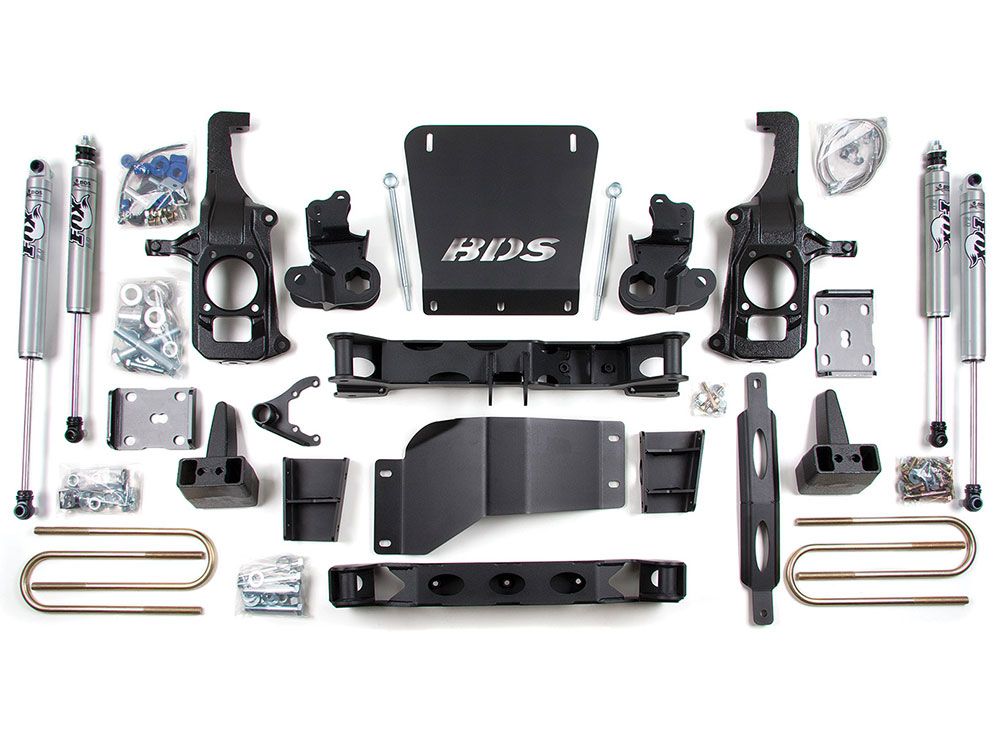

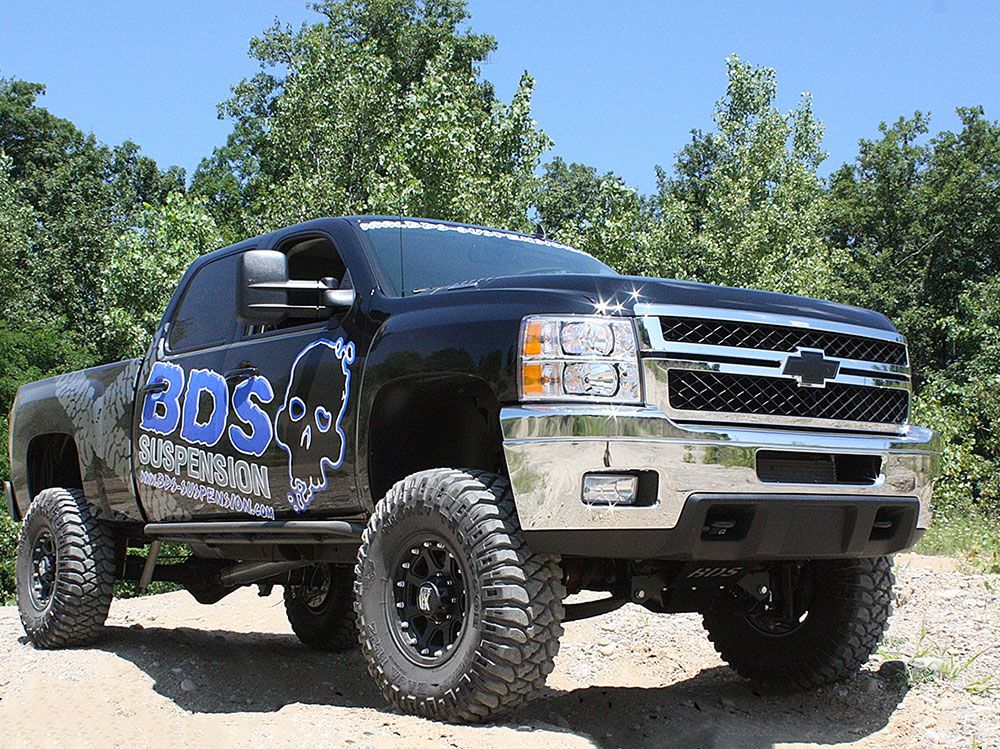

This premium quality BDS Suspension BDS196H 6.5 inch lift kit for GMC Sierra 2500HD / 3500HD trucks will lift your vehicle enough to fit up to 37 inch tires giving a more aggressive stance. Featuring 1/4 inch thick laser cut High Clearance arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember. Also included are ductile iron replacement steering knuckles are supplied to maintain proper steering geometry. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential to keep CV axle angles at a minimum. A front skid plate and differential skid plate come standard, to lock everything together, creating a nearly indestructible sub frame for extreme off road protection. In the rear you can choose from 5 inch (slightly tail high stance), 4 inch (level stance) or 3 inch (slightly tail low stance) blocks.

Features and Benefits:

  • Allows for use of 37 inch tires
  • Premium Quality Components
  • BDS NX2 Nitro Gas Shocks or Fox 2.0 Performance Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8-10 Hours
  • Fits a 37 inch x 12.50 inch tire w/17" x 8" and 4-1/2" - 4-5/8'' inch back spacing
  • Fits a 37 inch x 12.50 inch tire w/18" x 9" and 4-1/2" - 4-5/8" inch back spacing
  • Fits a 37 inch x 12.50 inch tire w/20" x 9" and 5" - 6" inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

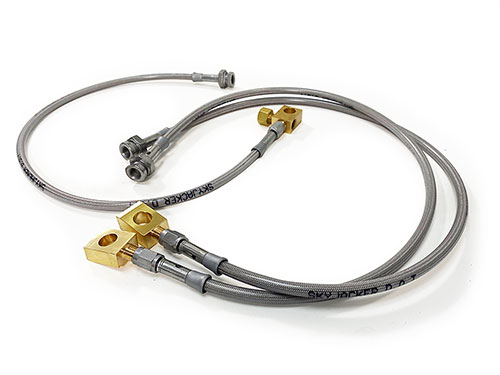

Stainless Brake Lines
This kit uses stainless steel braided brakes lines to replace worn factory rubber hoses. Providing superior protection from salt, rust and other road debris.
Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Important Notes
  • Torsion Bar Tool required to load/unload the torsion bars.
  • Requires frame bracket and differential modification
  • 3" rear block kit recommended for dually applications, 5" rear block kit will not fit dually applications.
  • Stock 17" & 18" wheels cannot be reinstalled.
  • Stock 20" x 8.5" wheels with 6" backspacing or less will fit with a max tire size of 35 x 12.50
  • Factory dually wheels cannot be reinstalled.
  • Models with two piece rear driveshaft may require #121612.
  • If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
  • Optional stabilizer kits 55425 & 95425 will not fit 2016 models
  • Vehicle Fitment
    ModelSierra 2500HD, Sierra 3500HD
    Year Fitment2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
    2WD/4WD2WD, 4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS196H
    Item Numberbds_bds196h
    Product LineLift Kits
    Lift Height6 inch
