4.5" 2011-2019 GMC Sierra 2500HD/3500HD 4WD & 2WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 719H
As low as $2,425.95 Regular Price $2,695.50

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

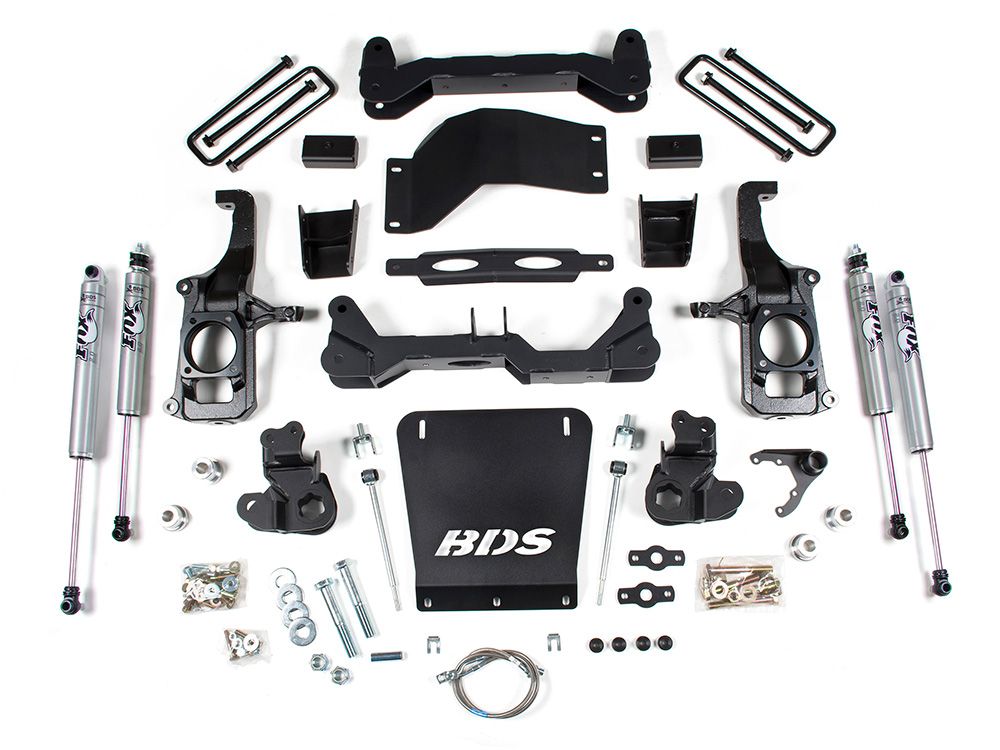

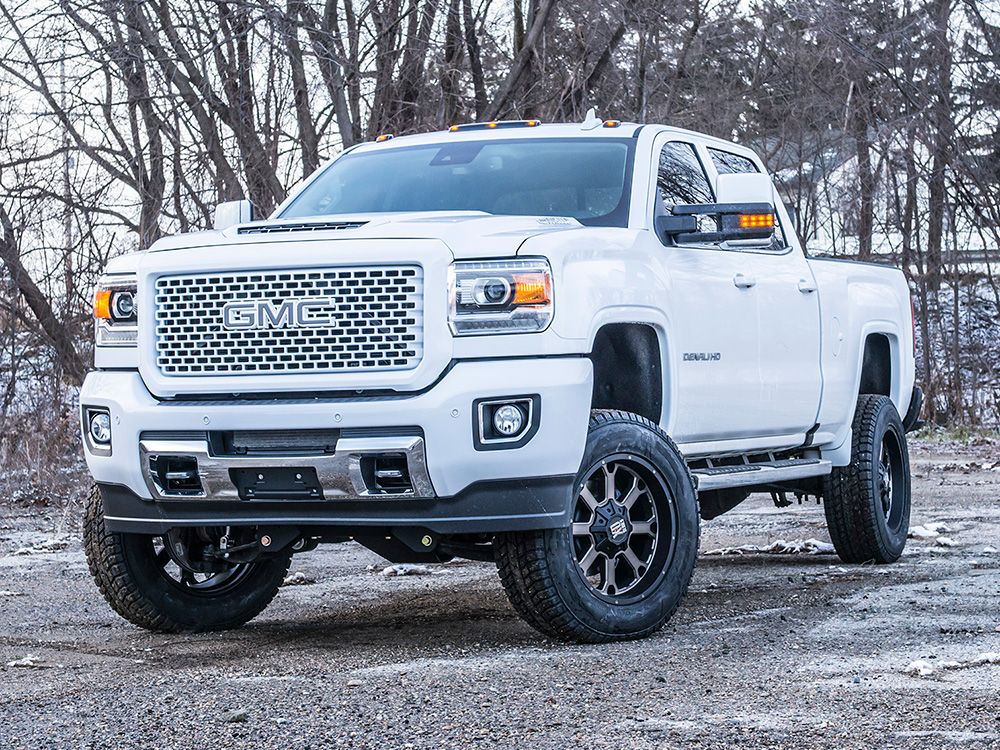

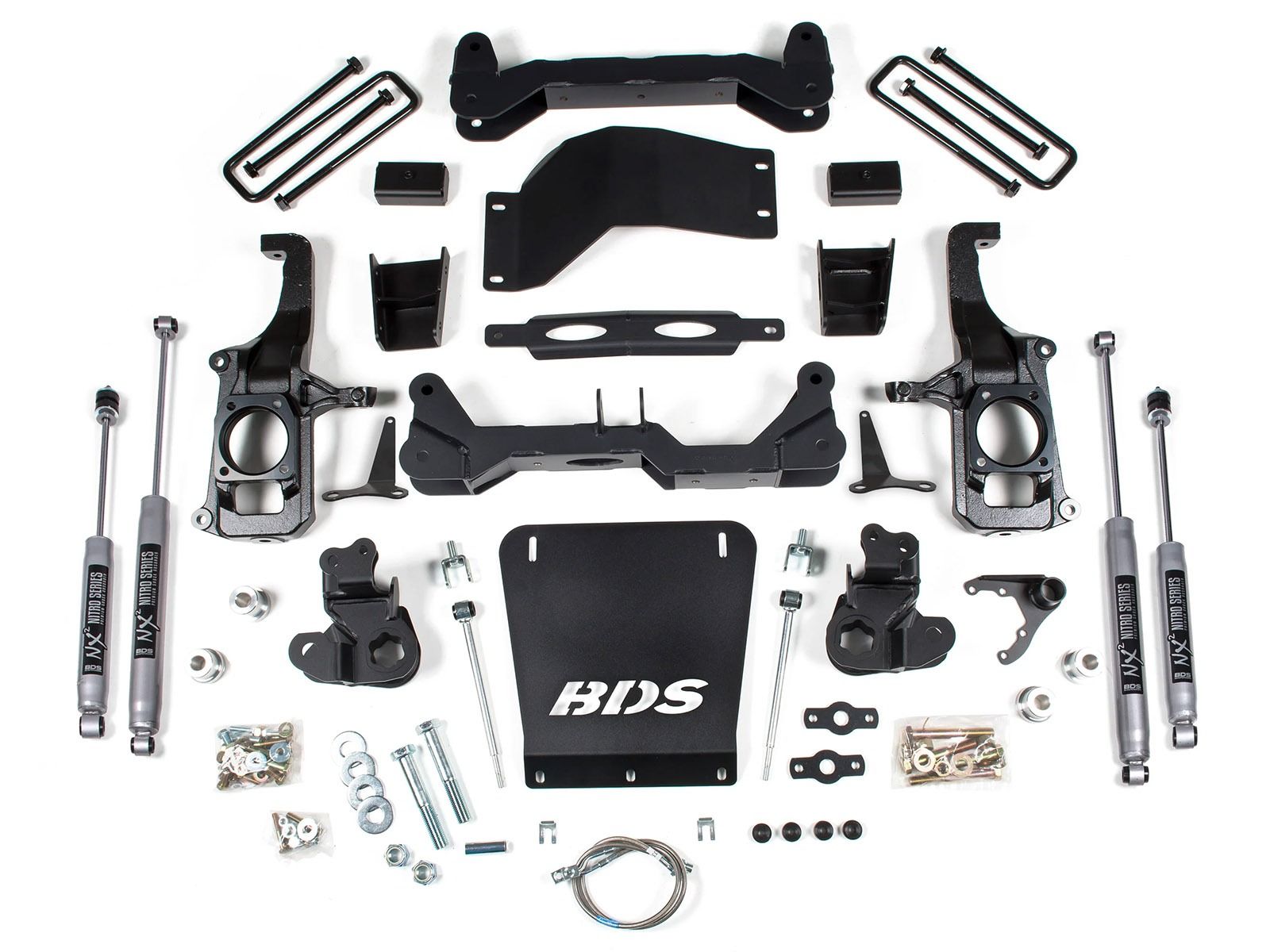

This BDS 719H 4.5 inch lift kit for the GMC Sierra 2500HD and 3500HD trucks is an awesome suspension upgrade to allow fitment of up to 35 inch diameter tires.  Once installed will give your truck a great new aggressive look.

This kit features High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles.  Also included are stainless steel front brake lines, extended sway bar links and differential drop brackets.

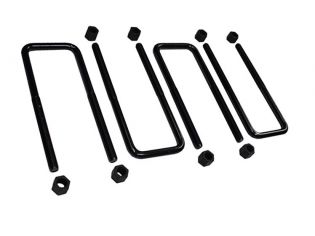

In the rear, the system comes with a 2" block and u-bolt setup that levels the vehicle perfectly. For those looking for a little more height in the rear, 3" or 4" rear block kits can be substituted in.

Top Features

  • Allows for use of 35 inch tires
  • Premium Quality Components
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Extended Sway Bar End Links
  • Made in the USA
  • Best Quality and Engineering in the Industry
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8-10 Hours

Tire & Wheel Combinations

  • 35 inch x 12.50 inch w/17 x 8 and 4 1/2" to 4 5/8" inch back spacing
  • 35 inch x 12.50 inch w/18 x 9 and 4 1/2" to 4 5/8" inch back spacing
  • 35 inch x 12.50 inch w/20 x 9 and 5" to 6" inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important Notes- Models with two piece rear driveshaft may require Carrier Bearing Drop #121612 (listed under optional accessories).
- Stock 17" and 18" wheels cannot be reinstalled. Stock 20" can be used with up to a 35.12.50 tire.
- Torsion Bar Tool required to load/unload the torsion bars.
- Requires frame bracket and differential modification
- Factory dually wheels cannot be reinstalled.
Vehicle Fitment
MakeGMC
ModelSierra 2500HD, Sierra 3500HD
Year Fitment2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number719H
Item Numberbds_719h
Product LineLift Kits
Lift Height4 inch
