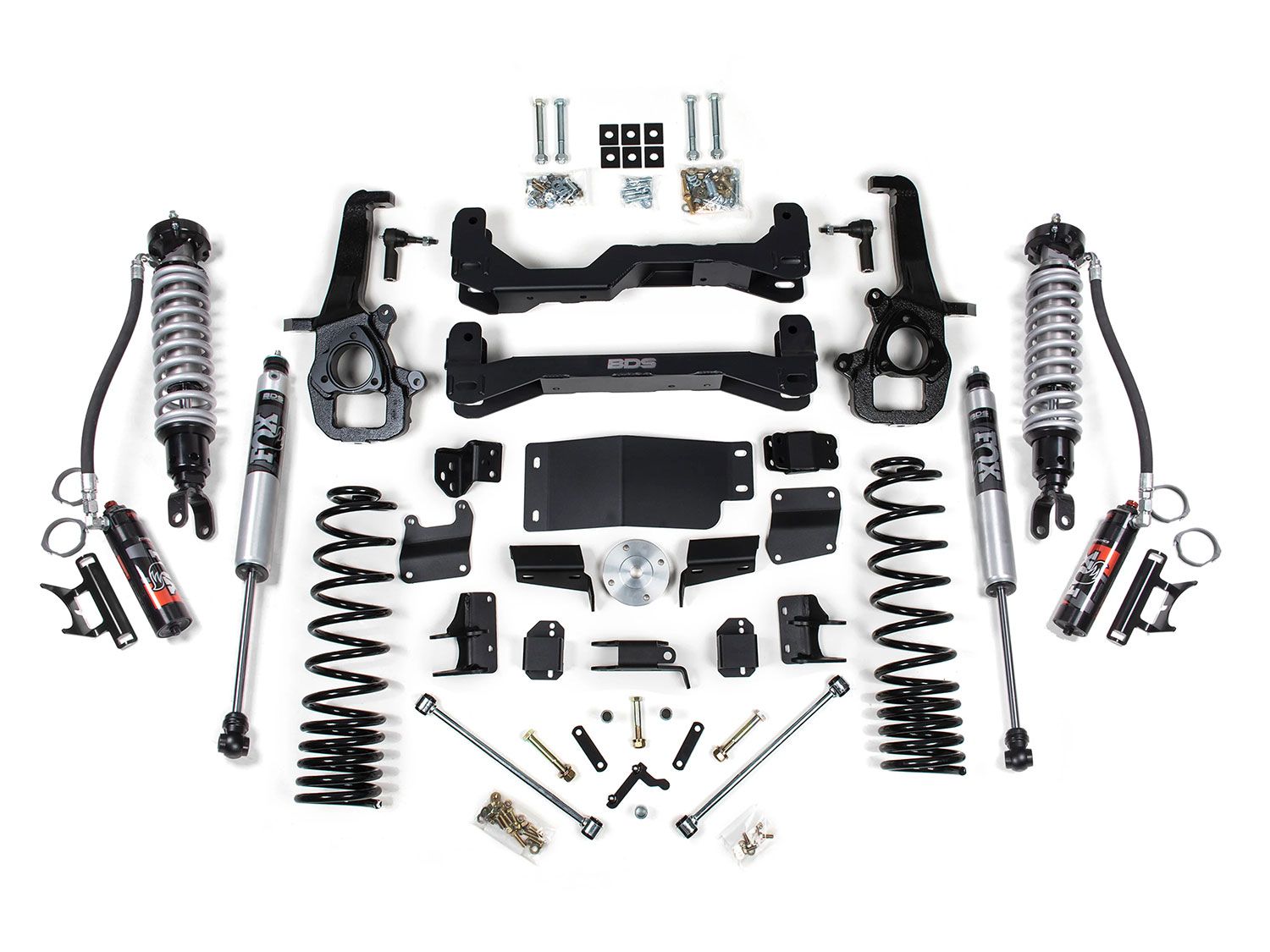

Equip your 2025 RAM 1500 with BDS's 2114F / 2115F premium coil-over suspension lift kit featuring the renowned FOX 2.5 Performance Elite Coil-over shocks, and get ready to conquer the trails. This kit enhances travel and exceptional off-road performance while maintaining smooth on-road comfort. Engineered for superior stance, performance, and capability, it provides all the necessary components to fit up to 35" tires with ease.

The BDS high-clearance design is a hallmark of this kit, offering improved ground clearance, increased strength, and robust off-road protection. The front setup includes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel cross members, multipiece differential relocation brackets, and heavy-duty skid plates for unmatched durability. The suspension and steering geometry are expertly corrected with CNC-machined ductile iron steering knuckles and replacement tie rod ends, ensuring compatibility with the ESC system. Additional components like sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, and supplied hardware make this front suspension lift a complete solution for any adventure.

In the rear, the kit features progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, and a track bar relocation bracket for precise axle positioning. Bump stop extensions and sway bar links further enhance the rear setup, completed with your choice between FOX 2.0 IFP performance series gas shocks or FOX 2.5 Performance Elite shocks, delivering improved damping performance. With this comprehensive lift kit, your RAM 1500 will be ready to tackle any terrain confidently.

Features and Benefits:

• FOX 2.5 Shocks engineered for enhanced travel and superior terrain absorption.
• DSC (Dual Speed Compression) adjuster offers versatile and precise tuning with easy knob adjustments.
• High-clearance crossmember design optimizes ground clearance.
• Robust steering knuckles ensure ESC system compliance.
• Estimated install time: 8-10 hours
• Heavy-duty skid plate system enhances off-road protection.
• Multipoint differential relocation brackets secure the front axle and improve CV angles.
• FOX Performance Series IFP rear shocks enhance ride quality and off-road performance.
• Includes Factory Protection Plus drivetrain warranty.
• Fits 37 x 12.5 tires with 18 x 9 wheels and 5 in. Backspace
• Fits 37 x 12.5 tires with 20 x 9 wheels and 5 in. Backspace

FOX 2.0 Performance Series Shocks

• 2-inch impact-extruded aluminum body with clear anodized finish
• IFP monotube design with a race-developed high-flow piston
• 5/8-inch hard chrome plated alloy steel shaft
• CNC machined 6061-T6 aluminum mounting ends
• Application-specific valving for optimized performance

FOX 2.5 Performance Elite Series Shocks

• 2.5-inch impact-extruded aluminum body with external reservoir
• 7/8-inch hard chrome plated alloy steel shaft
• DSC - Dual Speed Compression Adjuster for customizable performance
• Enhanced off-road capabilities with adjustable settings for terrain, load, and speed
• Fully serviceable for long-term use
• 1-year Manufacturer's Warranty

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you peace of mind with your purchase.

• Fits Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman, Tungsten, Warlock, and Rebel Dodge Ram 1500 models
• Compatible with 4WD models only.
• Due to a larger wheel bearing assembly, RAM models with factory 22" wheels require larger bore knuckles. Check for building code WPM or WPZ.
• Not compatible with models equipped with adjustable "air ride" suspension.
• Stock 18" wheels cannot be reinstalled due to steering interference; stock 20" wheels can be reinstalled with the factory tire size.
• Not suitable for diesel models.
• Incompatible with models featuring the Thermal Axle option (build code DSK-P). Check the differential cover for cooling lines as indicated.
• When using 18" wheels with maximum recommended backspacing, test fit the wheels on the vehicle before mounting tires to ensure proper clearance.
