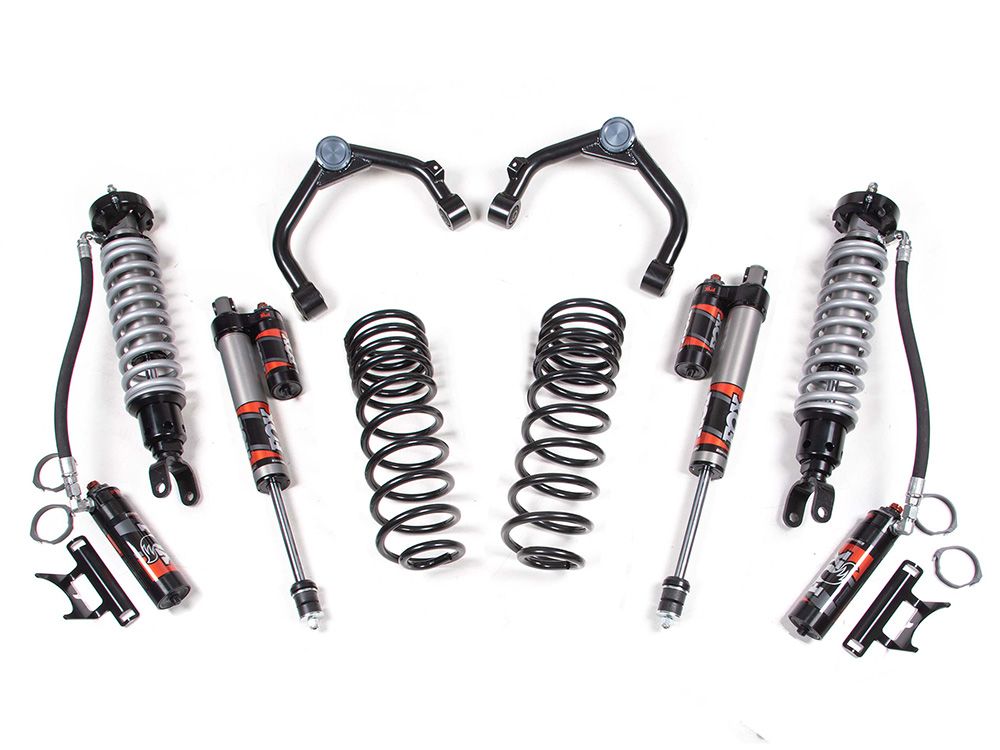

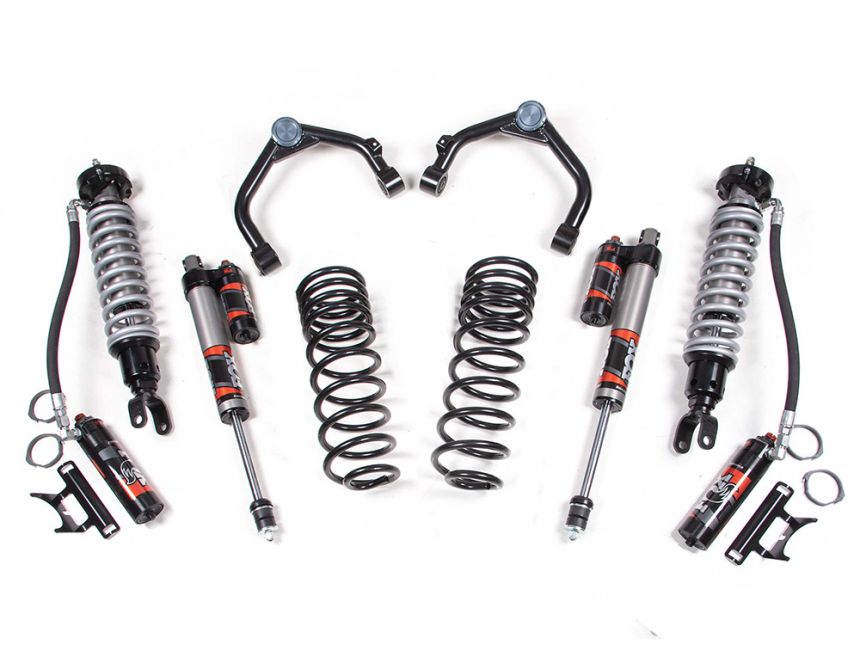

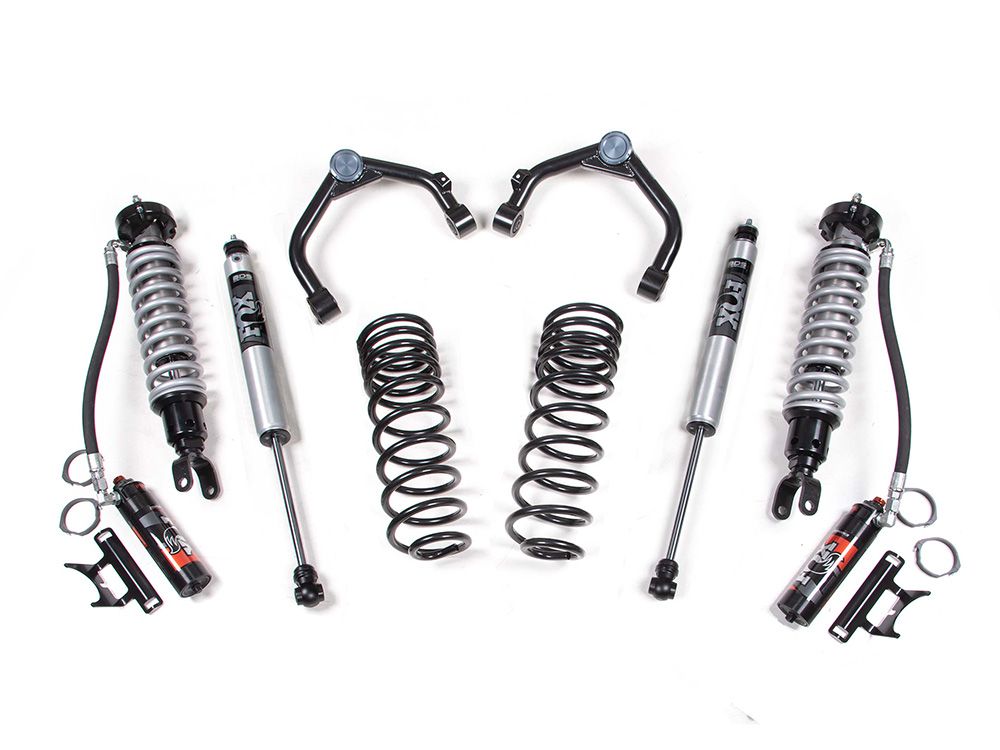

3" 2019-2023 Ram 1500 & Rebel Dodge 4wd (w/o factory air ride) Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 1709FPE / 1708FPE
As low as $3,275.40 Regular Price $3,555.80

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS 1709FPE for the Dodge Ram 1500 Rebel utilizes the Fox 2.5 Performance Elite Series Coilovers, providing improved damper performance across any and all terrains. Fox Performance Elite Series Coilovers provide: DSC (Dual Speed Compression) adjustment in order to dial in high-speed and low-speed compression settings. Heavy duty upper control arms improve suspension travel, provide superior strength and styling. Built out of 1.5" OD heavy wall tubing with integrated support gussets. BDS control arms include a brake line mounting tab and use an indexed ball joint cup in order to correct the ball joint cup which provide a neutral position at ride height.

In the rear BDS supplies a set of dual rate ProRide coil sprigns, providing 1.5" of lift to level out the truck paired with either rear Fox 2.0 IFP performance shocks or rear Fox 2.5 Performance Elite Series remote reservoir shocks with DSC.

Features and Benefits:

  • Provides 3 inch front lift / 1.5 inch rear lift
  • Superior Tubular Upper Control Arms
  • Includes Fox 2.5 Performance Elite Coilovers
  • Coilovers features DSC (dual speed compression) ride adjustments with a turn of a dial
  • Includes rear Fox shocks
  • Dual rate rear coil springs
  • Estimated Install Time: up to 4 hours
  • Difficulty Level (easy 1-5 complicated): 3
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA

Tire & Wheel Combinations:

  • 33x12.50 w/20x9 and w/4.5-5" backspacing
  • 33x12.50 w/18x9 and w/4.5-5" backspacing
  • Trimming may be required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • Will not work with stock rims with a 12.50" wide tire, tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock size tire ONLY!
  • Ball joint used is 500-1134, use this for replacement purposes if a new ball joint is ever needed. Ball joint is directional and must be installed with the 'dot' facing either inward or outward on the vehicle, otherwise damage may occur.
  • NOT designed for Air suspension models
  • Vehicle Fitment
    ModelRam 1500, Ram 1500 Rebel
    Year Fitment2023, 2022, 2021, 2020, 2019
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part Number1709FPE / 1708FPE
    Item Numberbds_1709fpe
    Product LineLift Kits
    Lift Height3 inch
