4" 2011-2016 Ford F250/F350 Super Duty 4WD (Diesel models) Fox Performance Elite Coilover Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS588FPE
$4808.43
- +
4808.43

4" 2011-2016 Ford F250/F350 Super Duty 4WD (Diesel models) Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS588FPE
From $4,808.43 Regular Price $5,061.50

4" 2011-2016 Ford F250/F350 Super Duty 4WD (Diesel models) Fox Performance Elite Coilover Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS588FPE
From $4,808.43 Regular Price $5,061.50


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

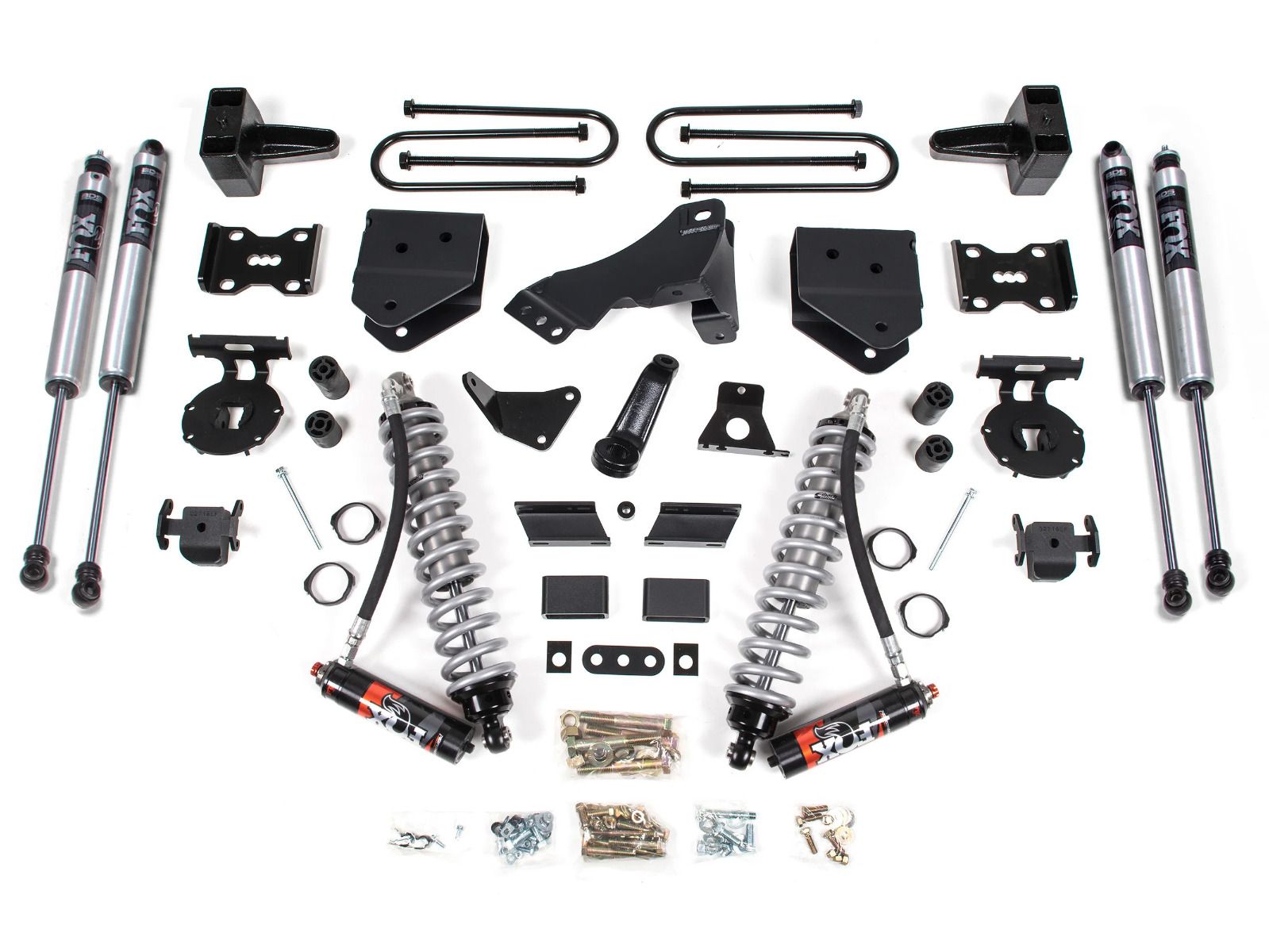

The BDS Suspension BDS588FPE 4 inch premium coilover suspension lift kit for the Ford F250 / F350 will allow for fitment of up to 35 inch diameter tires for a great off-road look. This kit uses a pair of specially tuned FOX 2.5 Performance Elite remote reservoir coilovers designed to replace the factory coil springs for greatly improved handling and suspension performance. Also included in this system are a pair of 1/4" thick, frame mounted radius arm drop brackets to reposition the arms to correct geometry. The steering is corrected with a forged drop pitman arm used in combination with a heavy duty track bar drop bracket to recenter the front axle. Rounding out these kits BDS includes sway bar relocation, brake line extensions, FOX 2.0 performance shocks and your choice of rear block kit or GlideRide replacement leaf springs.

Fox 2.5 Performance Elite Coil-overs w/DSC Remote Reservoirs - These top of the line adjustable coil-overs feature a 2.5 inch diameter CNC machined 6061-T6 hard anodized aluminum body that will resist rust and allow for excellent heat dispersion. The remote reservoir increases oil capacity and house the DSC (dual speed compression) adjuster knob. This allows you to to easily adapt your coil-overs ride softness or firmness to the current terrain and vehicle load by changing high-speed and low-speed compression settings with the turn of a dial.

Features and Benefits:

  • Premium Lift System replaces coils springs w/coilovers
  • Fox 2.5 Performance Elite remote reservoir coilovers
  • Fit up to 35 inch tires
  • Heavy duty radius arm drop brackets
  • Forged drop pitman arm for steering correction
  • Upgrade to Glide-ride rear springs for great suspension performance and traction control
  • Estimated Install Time: 8 hours
  • Difficulty Leve (easy 1-5 complicated): 3
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA
  • Fits a 35" x 12.50" tire w/17x 9and 4.5" back spacing
  • Fits a 35" x 12.50" tire w/18 x 9 and 4.5" back spacing
  • Fits a 35" x 12.50" tire w/20 x 9 and 4.5" back spacing
    • *Trimming may be required*

Fox 2.5 Performance Elite Coilover Benefits

  • Greatly improves suspension performance and ride quality in both on and off-road conditions
  • 6061 Aluminum 2.5 inch diameter body dissipates heat three times faster than a steel body
  • DSC Adjuster - Allows you to fine tune your ride with a turn of a dial (w/ multiple fast and low speed compression settings)
  • 7/8 inch chrome plated shaft
  • Application specific valving
  • Remote reservoir increases oil capacity for improved performance
  • Hard-Anodized Finish
  • Fully rebuild-able

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly built in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
  • ONLY fits Diesel models
  • Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for level to tail high stance. (Add-A-Leafs do not apply to rear leaf spring equipped systems)
  • If equipped with 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required
  • Although extremely rare, front and/or rear driveline vibration may occur.
  • If equipped with rear sway bar, #123009 required.
  • U-bolts will not work on dually.
  • Vehicle Fitment
    MakeFord
    ModelF250, F350
    Year Fitment2016, 2015, 2014, 2013, 2012, 2011
    2WD/4WD4WD
    Tech Specs
    ManufacturerBDS Suspension
    Manufacturer Part NumberBDS588FPE
    Item Numberbds_bds588fpe
    Product LineLift Kits
    Lift Height4 inch
