4" 2014-2018 Chevy Silverado 1500 4WD Fox DSC CoilOver Lift Kit by BDS Suspension

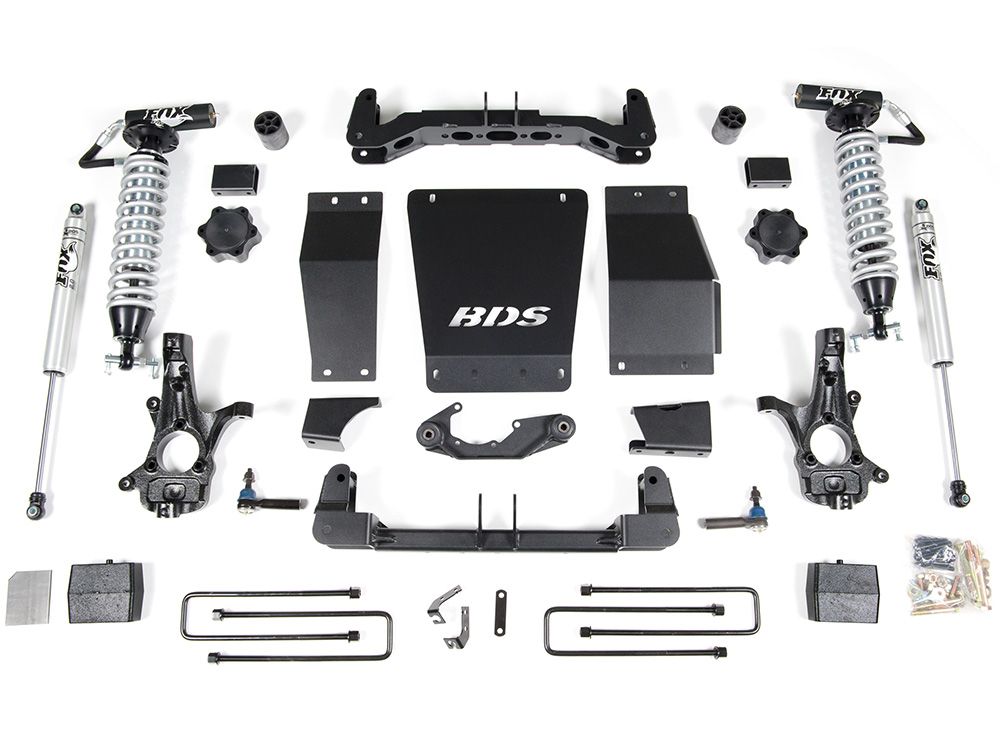

This BDS Suspension BDS712FDSC 4 inch lift kit is a premium suspension upgrade for the Chevy Silverado 1500 4wd truck that will allow fitment of up to 35 inch diameter tires while giving your truck an awesome more aggressive look. Featuring Fox 2.5 DSC Factory Series Remote Reservoir Coil-Overs that provide unmatched on and off-road performance and comfort. These coilovers are equipped with DSC (dual speed compression) adjustments that allow fine tuning of the ride with the turn of a dial. Included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles to keep proper steering angles. To lift the rear end of the truck choose from a rear axle block kit or upgrade to Glide-Ride leaf springs for improved traction control and performance.

Top Features

• Allows for use of 35 inch tires
• Premium Quality Components
• Fox 2.5 Remote Reservoir Coil-Overs with DSC (dual speed compression) adjustable ride control
• DSC adjustment for coil-overs gives ride control options with the turn of a dial
• Fox 2.0 Performance Rear Shocks
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Made in the USA
• Best Quality and Engineering in the Industry
• Powder Coated for Durability
• No Fine Print Lifetime Warranty
• Estimated Install Time: 8 Hours

Recommended Tire and Wheel Sizes

• 33 inch x 12.5 inch w/ 17 x 9 and 5 inch back spacing
• 33 inch x 12.5 inch w/ 18 x 9 and 5 inch back spacing
• 35 inch x 12.5 inch w/ 20 x 9 and 5.75 inch back spacing



Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly made in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

• You Must Verify Steel or Aluminum Steering Knuckles & Control Arms Prior To Placing Your Order
• Strut compressor required
• Requires frame bracket modification
• Requires differential modification to clear electric power steering
• Vehicles came with steel or aluminum steering knuckles and control arms, must order appropriate kit
• Trimming may be required for 35" tire clearance due to variation between tire brands
• Will not fit MagneRide magnetic ride control equipped models
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
