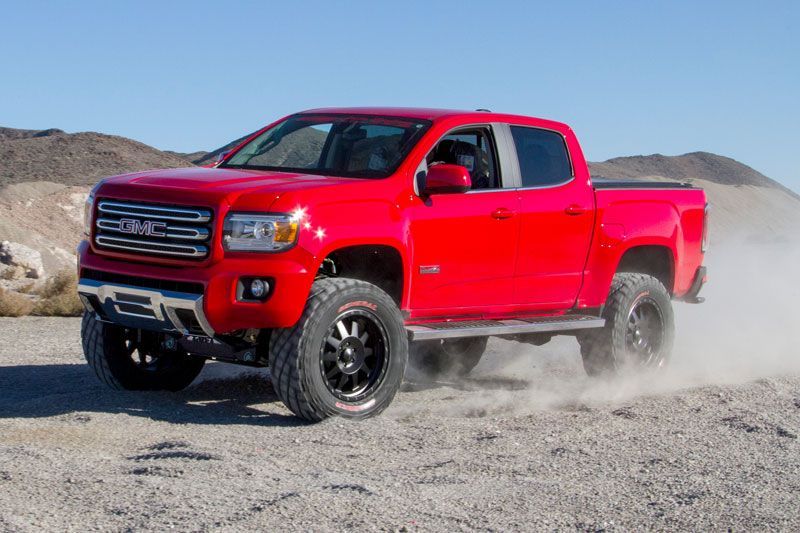

5.5" 2015-2022 GMC Canyon 4WD CoilOver Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 722F / 722FDSC
As low as $3,965.60

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

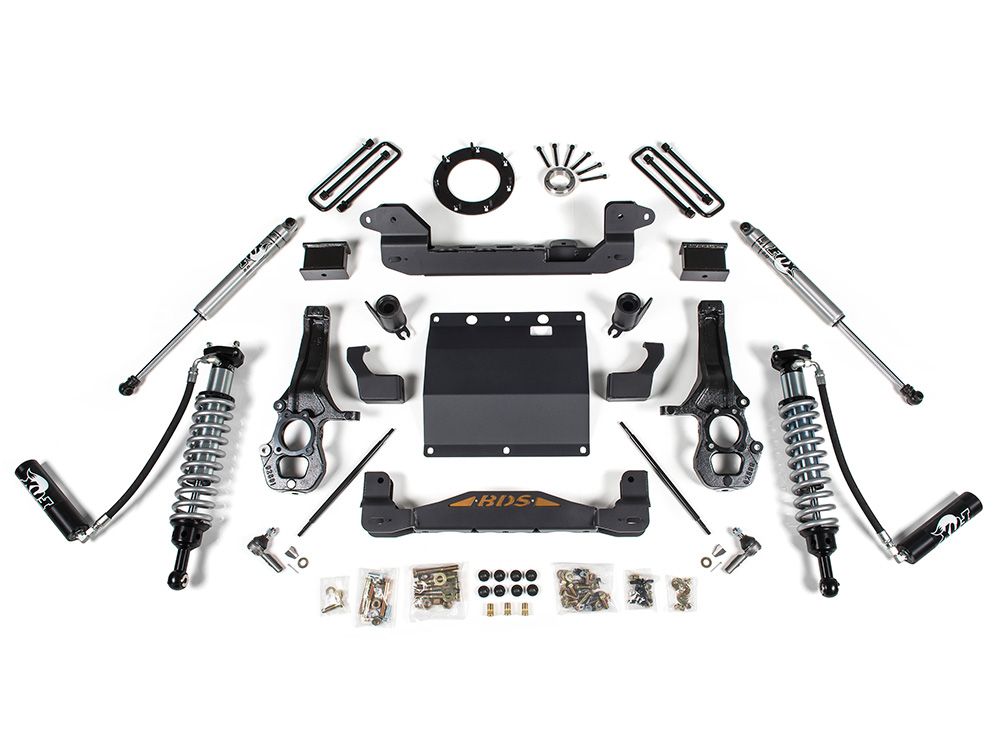

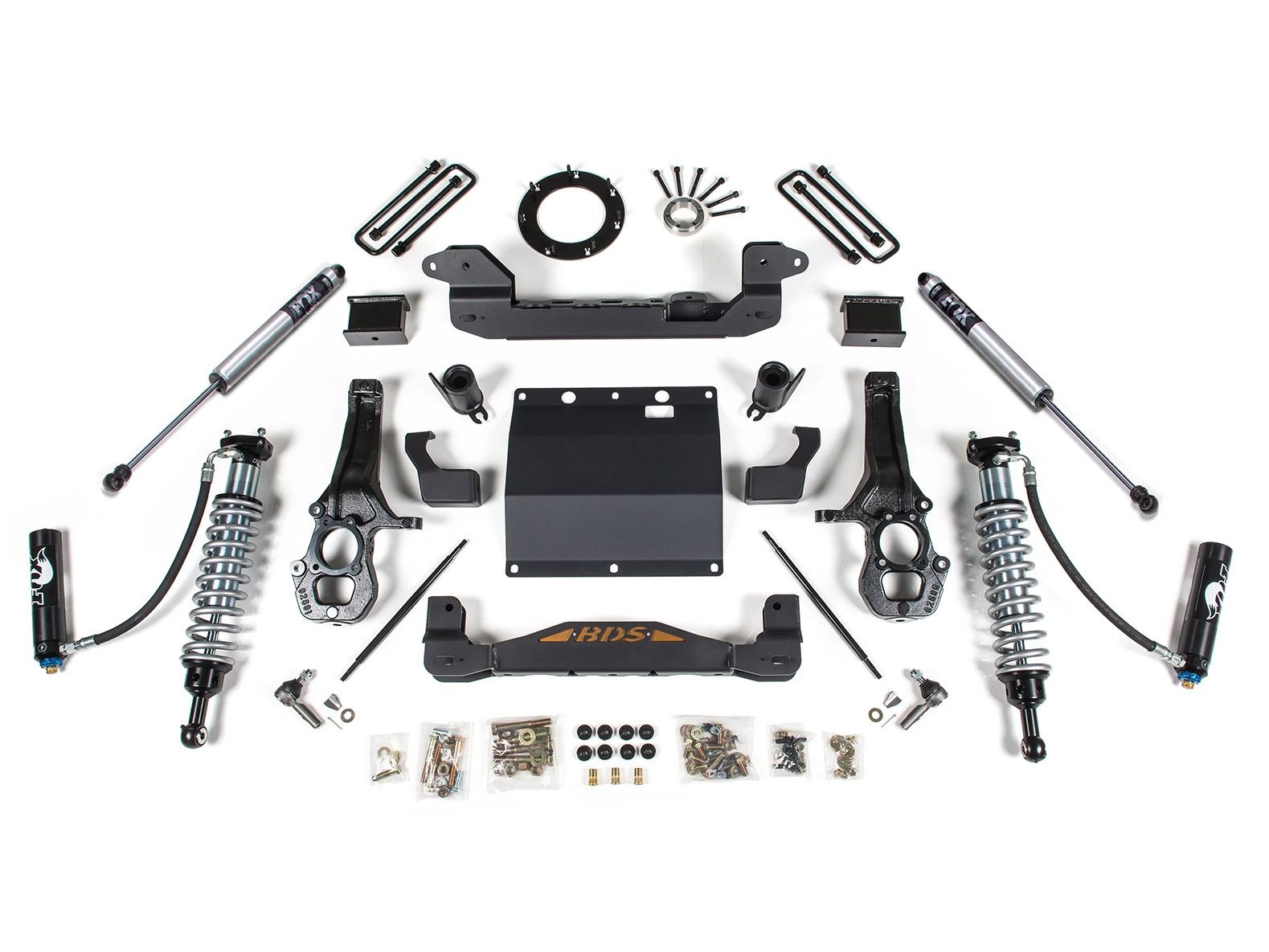

This BDS Suspension 722F / 722FDSC 5.5 inch lift kit for the 2015-2022 GMC Canyon features FOX's 2.5 remote coilovers. These specially built FOX 2.5 coilovers can be upgraded to the optional dual speed compression (DSC) adjusters for easy adjustability to the ride quality. Ideal for dialing in the trucks ride performance for any terrain while offering superior performance when you're blazing a trail through Baja. Included in this kit are also high clearance one-piece crossmembers, CNC machined ductile iron steering knuckles, full width belly skid plate, multipoint differential relocation kit, extended sway bar links, heavy duty tie rod ends and a t-case indexing ring to correct front driveline angles. In place of the factory struts this system uses precision tuned FOX 2.5 remote coilovers with DSC adjustment technology.

Top Features

  • 5.5 inch front lift / 4 inch rear lift
  • Allows use of larger diameter tires
  • Premium Quality Components
  • Fox 2.5 Remote Reservoir Coil-Overs
  • Optional DSC (dual speed compression) adjusts your ride with the turn of a dial
  • Fox 2.0 Performance Rear Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • CNC Machined Ductile Iron Steering Knuckles
  • Extended Sway Bar End Links
  • Multi-point Differential Relocation Kit
  • Made in the USA
  • Powdered Coated for Durability
  • No Fine Print Warranty

Tire & Wheel Combinations

  • 305/55R20 w/20 x 9 and 5.25" back spacing
  • 305/70R17 w/17x9 or 18x9 and 4.5" back spacing
  • 295/70R17 w/17x8 or 18x8 and 4.5" back spacing

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important NotesInner fender trimming is required.
Minor welding is required.
Electronic assisted power steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.
Actual ride height on C/O kits is closer to 6'' of lift.
Fits gas and diesel.
Vehicle Fitment
Year Fitment2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number722F / 722FDSC
Item Numberbds_722f-722fdsc
Product LineLift Kits
Lift Height5 inch
