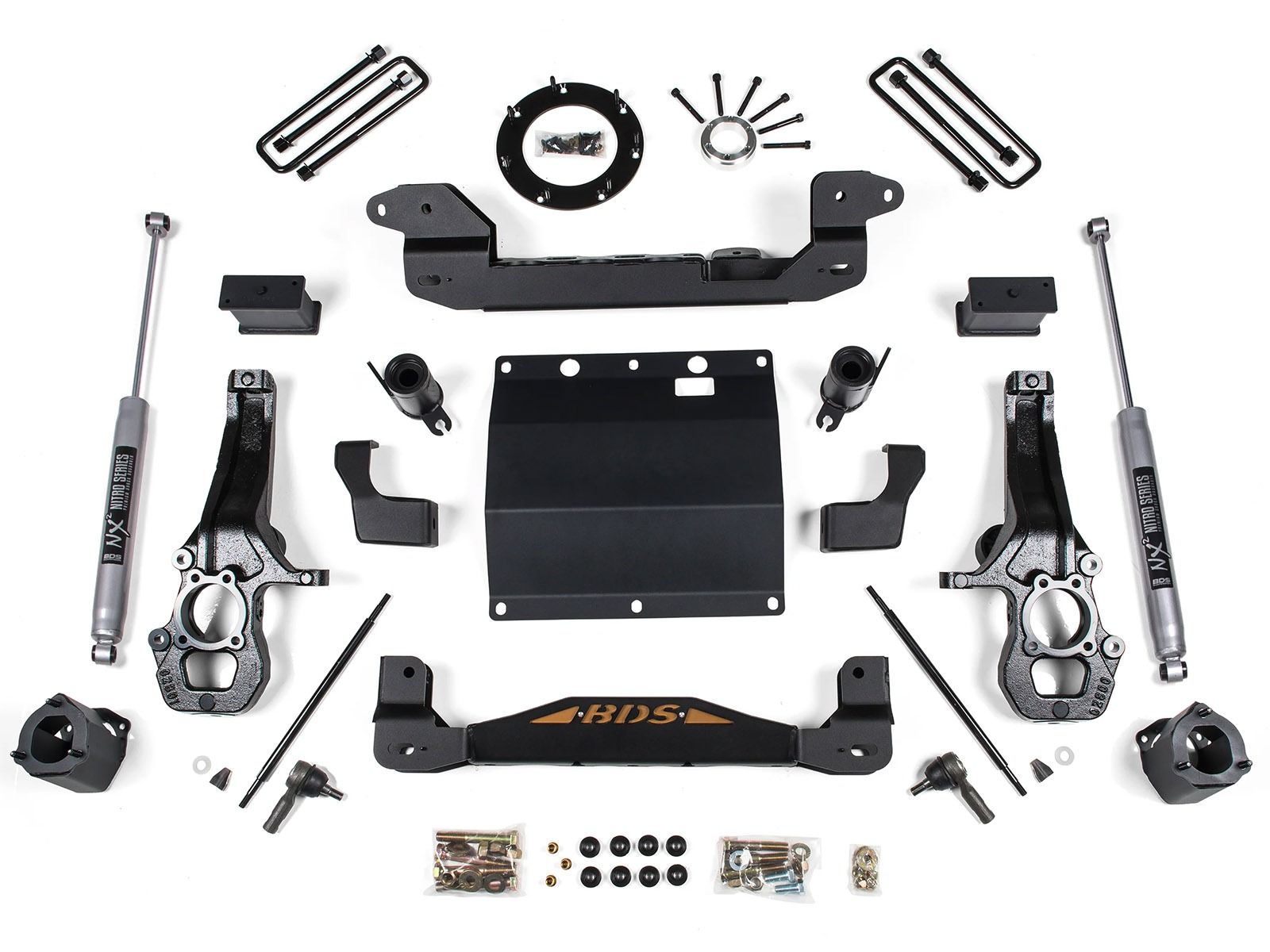

5.5" 2015-2019 GMC Canyon 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 722H
Special Price $2,079.13 Regular Price $2,188.56

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

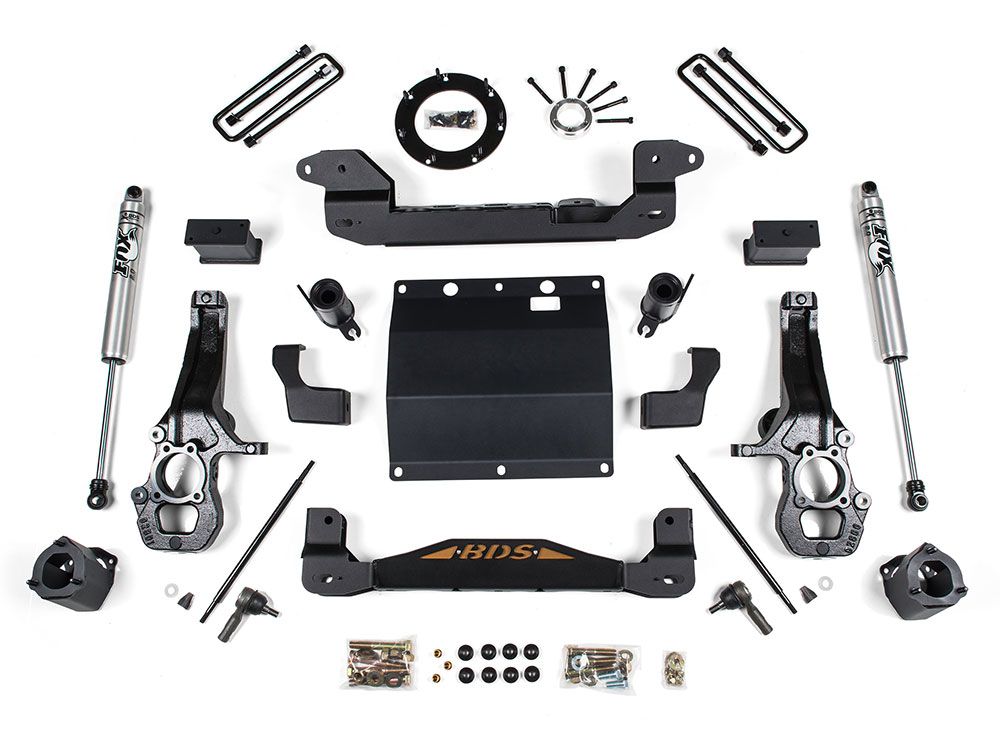

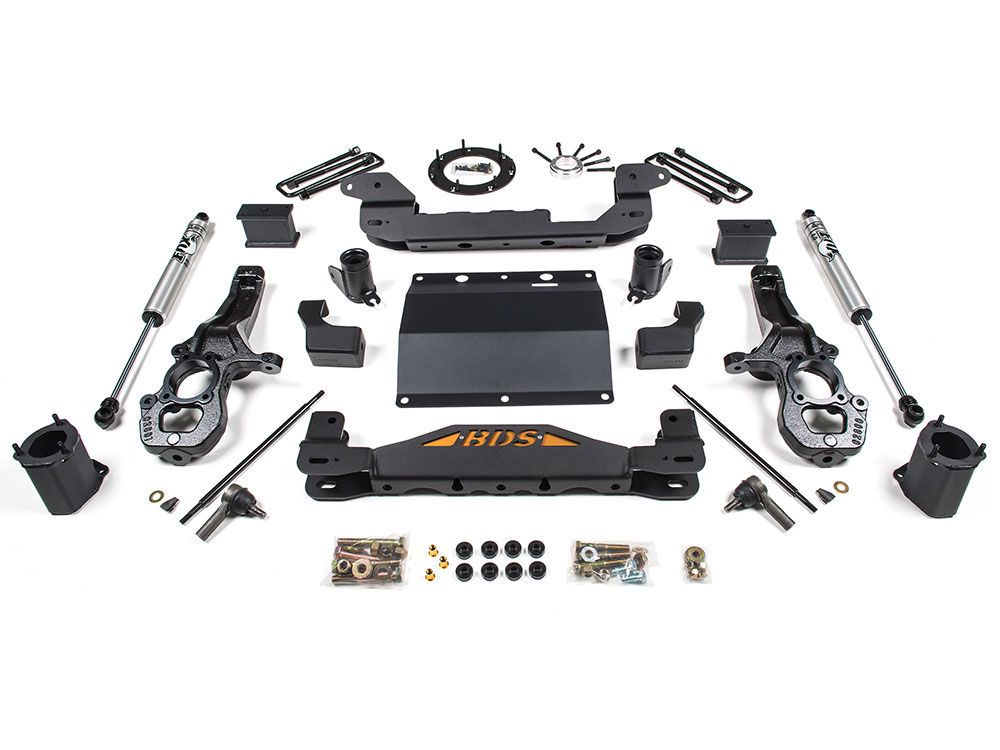

This BDS Suspension 722H 5.5 inch lift kit for the GMC Canyon is design with the tried-and-true steering knuckle and crossmember technology. The system has passed FMVSS126 testing for stability control compliance. Heavy-duty fabricated crossmembers drop the lower control arms, perfectly matching the massive ductile cast iron extended steering knuckles to gain 5.5" of lift.

The crossmembers utilize the factory alignment eccentrics and tie together with a full-width skid plate. The skid plate protects the relocated differential that has been lowered and positioned to work precisely with the included transfer case indexing ring, allowing for the factory front drive shaft to be used.

The factory front struts are relocated using upper strut extensions that do not require disassembly of the strut. Front bump stop extension and sway bar links are included as well as new Moog tie rod ends to properly set alignment without trimming the inner tie rods.

In the rear, as simple block/u-bolt combination sets the new ride height so it is level with the front. Fox 2.0 or BDS5500 rear shocks are available to finish out the back.

Tire & Wheel Combinations
- 295/70/17 on a 17x8 w/ 4-1/2 inch backspacing. Must use weld on steering stop included in kit. Cannot go to a 305 width tire on a 17 x 8.
a 305 width tire on a 17x9 w/ 4-1/2 inch backspacing should work, would possibly require additional trimming on the rear of the front fender due to the increased track width / scrub.
- Est. Installation: 8 hours
- Difficulty Level (easy 1 - 5 complicated):  4

BDS Suspension Lift Kit Warranty
All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique 'No BS Hardcore Lifetime Warranty'.
If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Installation Instructions

Important NotesThis fits tire and wheel combination: 305/55R20 w/20 x 9 and 5.25" back spacing. This is a new 6 on120 bolt pattern. Only a few wheels have been available for additional test fits. We will continue to add to these listings as we are able to test fit. Back spacing cannot be greater than 5-1/4". Less than 5-1/4" will require slightly more trimming of the lower inner fender.
Inner fender trimming required.
Minor welding required.
Fits gas and diesel.
Vehicle Fitment
MakeGMC
ModelCanyon
Year Fitment2019, 2018, 2017, 2016, 2015
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number722H
Item Numberbds_722h
Product LineSuspension Lift Kit
Lift Height5 inch
