5.5" 2015-2022 Chevy Colorado 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS722H / BDS722FS
$1890.12
- +
1890.12

5.5" 2015-2022 Chevy Colorado 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS722H / BDS722FS
From $1,890.12 Regular Price $1,989.60

5.5" 2015-2022 Chevy Colorado 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS722H / BDS722FS
From $1,890.12 Regular Price $1,989.60


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This BDS Suspension BDS722H / BDS722FS 5.5 inch lift kit for the Chevy Colorado is an awesome suspension upgrade that will allow for use of larger diameter tires that gives an aggressive off-road look.

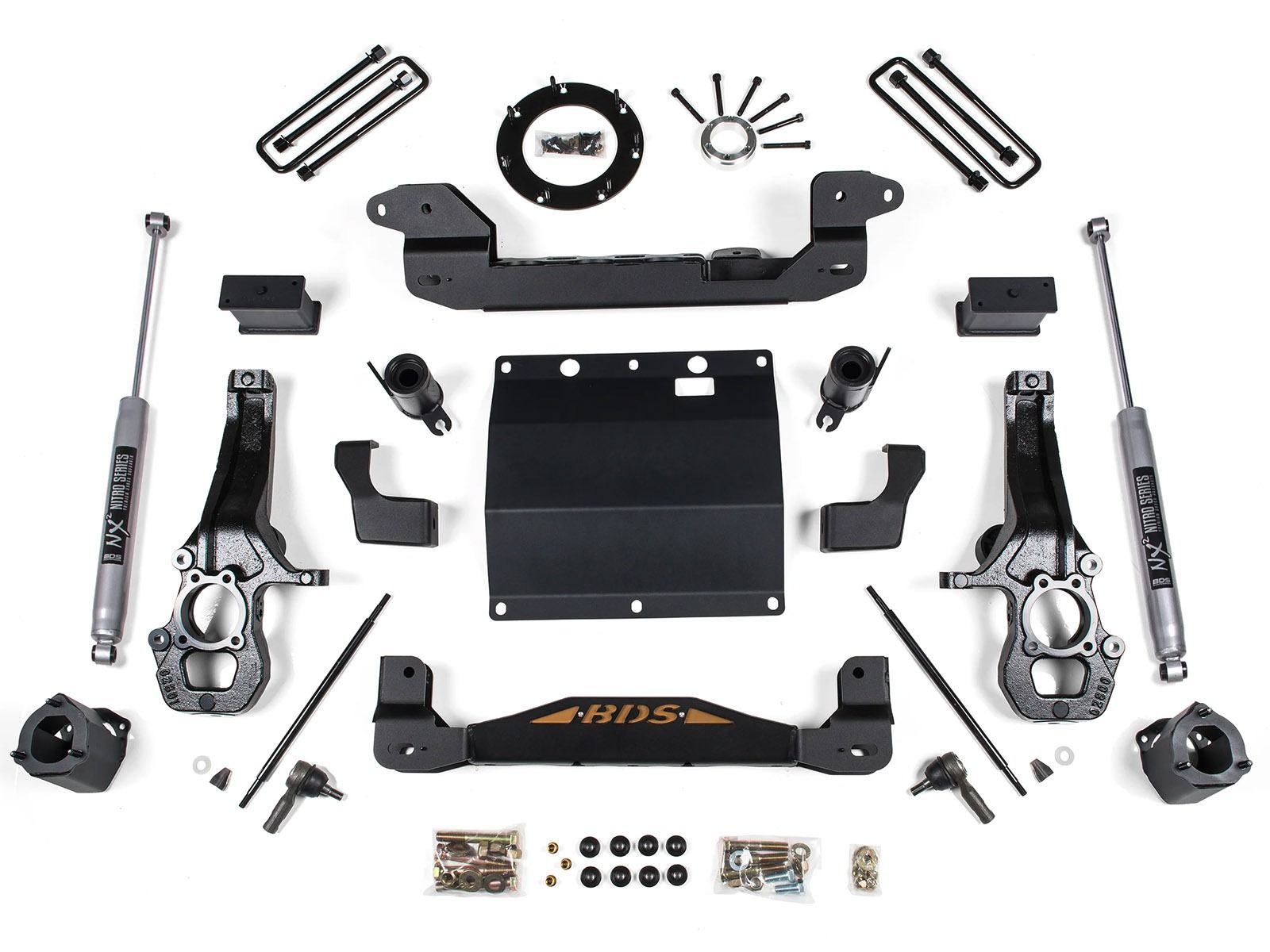

Included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles and keep the proper steering angles. The factory front struts are relocated using upper strut extensions that do not require disassembly of the strut. Front bump stop extension and sway bar links are included as well as new Moog tie rod ends to properly set alignment without trimming the inner tie rods.

The rear is lifted using a block and u-bolt kit. Choose from rear BDS NX2 Shocks or upgrade to the great Fox 2.0 Performance Series shocks.

Top Features

  • 5.5 inch front lift / 4 inch rear lift, for level stance
  • Allows for use of larger diameter tires
  • Premium Quality Components
  • Upgrade to Fox 2.0 Performance Rear Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Made in the USA
  • Best Quality and Engineering in the Industry
  • Powder Coated for Durability
  • No Fine Print Lifetime Warranty
  • Estimated Install Time: 8 Hours

Tire & Wheel Combinations

  • 295/70/17 on a 17x8 or 18x8 w/ 4-1/2‚Äù backspacing
  • 305/55R20 w/20 x 9 and 5.25" back spacing
  • 305/70R17 w/17x9 or 18x9 and 4.5" back spacing
  • Note:Trimming may required

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. Proudly made in the USA. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes
- Inner fender trimming required.
- Minor welding required.
- Fits gas and diesel.
- Will not fit ZR2 models.
- Electronic assisted power steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern tires. High speed steering wheel feedback can occur.
- Stock 17" & 18" wheels can not be reinstalled with the lift kit. Aftermarket 20" wheels with maximum of 5.25" Backspacing are recommended - certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See end of inst. sheet for details on installation.
Vehicle Fitment
MakeChevy
ModelColorado
Year Fitment2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS722H / BDS722FS
Item Numberbds_bds722h
Product LineLift Kits
Lift Height5 inch
