6" 2014-2018 GMC Denali 1500 4WD (w/Magneride) Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!

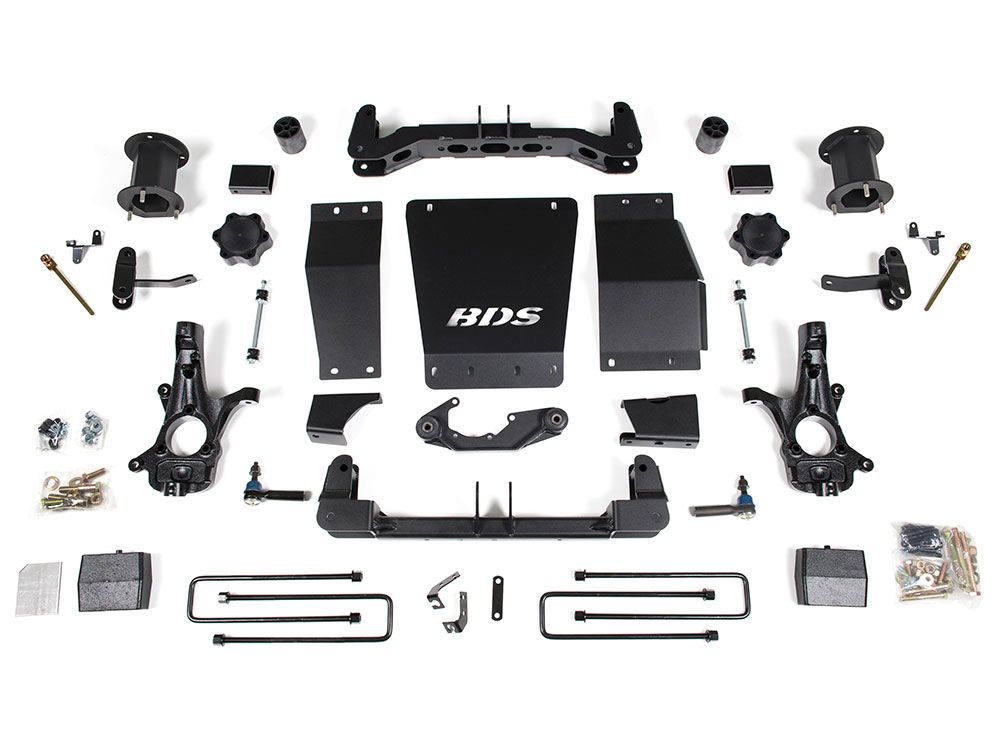

This BDS 725H 6 inch lift kit for the GMC Denali 1500 is made specifically for use with the factory Magneride magnetic ride control system. Once installed this kit will allow for use of up to 35 inch diameter tires and give your truck an awesome new look. Included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles to maintain proper steering angles. To lift the rear end of the Tundra 4 inch axle blocks, extended ubolts and brake line relocation brackets are included. Top mounted strut spacers are used to retain the Magneride struts as well as new sensor brackets to properly reposition the Magneride sensor arms. Also included for the front are replacement tie rod ends, longer sway bar links and brake line brackets.
5" cast iron lift blocks and longer u-bolts replace the factory blocks to net 4" of lift for a level stance. Rear shock relocation brackets are used at the axle mount to retain full functionality of the Magneride rear monotube shocks.
Tire and Wheel Combinations:
Premium Quality, Lifetime Warranty and Protection
BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
|Important Notes- *IMPORTANT*: GM is producing several knuckle/control arm configurations in these model trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.
- Fits Magnetic Ride Control equipped models only
- Requires frame bracket modification
- Requires differential modification to clear electric power steering
- Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
- Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
|Year Fitment||2018, 2017, 2016, 2015, 2014|
|Manufacturer Part Number||725h|
|Product Line||Lift Kits|
|Lift Height||6 inch|
