This system offers a mild lift height with easy installation for clearance of 33 inch tall tires on K1500’s w/ factory Magnetic Ride Control suspension.

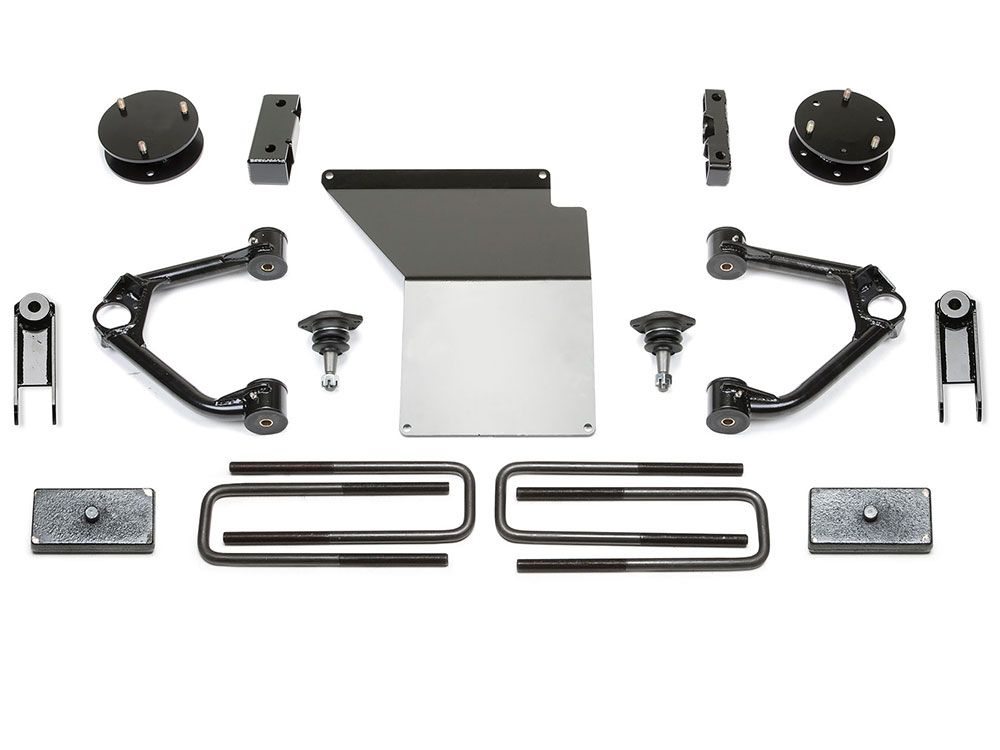

Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory.

The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles.

Rear lift is accomplished with 1-1/2 inch rear lift block and u-bolts to help level the stance of the vehicles.

Features and Benefits:
- Value priced system with Fabtech quality
- Increased ground clearance
- Extended range upper ball joints provide a smooth quiet ride
- Increased fender clearance compared to a lveling kit for 33 inch tall tires
- Suspension can be restored to stock
- Easy Installation

Tire Fitment:
33/12.50R17 tire w/ 17x8 wheels w/ 4 1/2 inch BS w/ minor trimming
275/65R18 tire w/ 18x8 wheels w/ 4 1/2 inch BS w/ minor trimming
295/55R20 tire w/ 20x9 wheels w/ 5 inch BS w/ minor trimming
