6.5" 2011-2019 Chevy Silverado 2500HD/3500HD Fox CoilOver Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply

Got Questions? We can help!
888-452-2548

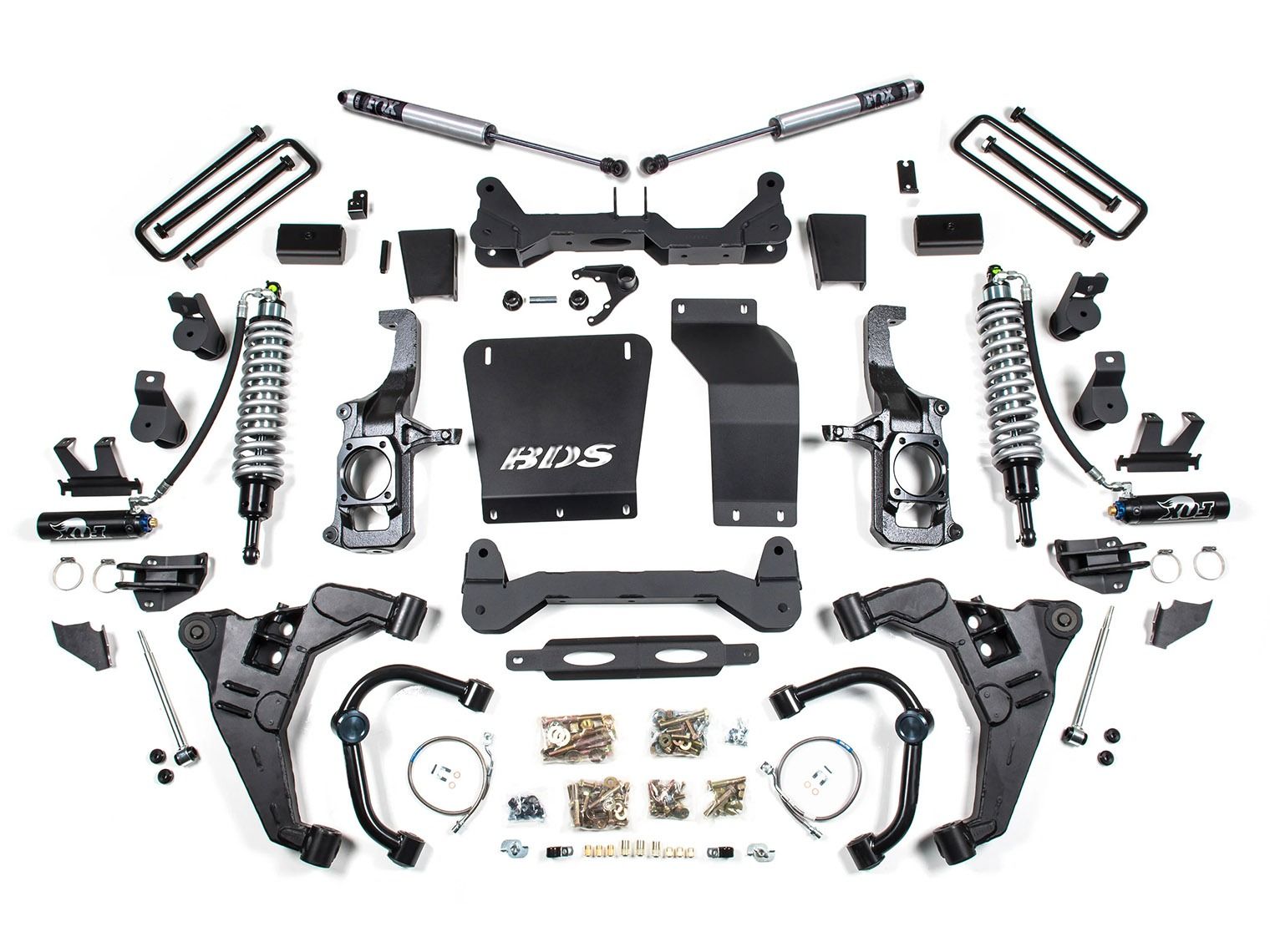

The BDS Suspension BDS727FDSC 6.5" Coil-Over Lift Kit for the Chevy Silverado 2500HD / 3500Hd trucks is a premium system that eliminates the factory torsion bar suspension and replaces them with Fox 2.5 Factory Series remote reservoir DSC coilovers. The Fox Coil-Overs greatly improve suspension dampening for on- and off-road conditions while providing a great ride for your daily commute. 12 points of adjustment for high-speed compression and 10 adjustments for low-speed compression allow you to dial in your ride quality and performance. Heavy-duty upper and lower control arms are included to improve strength and travel and accommodate the new coilovers. Two laser-cut high-clearance cross members and CNC-machined steering knuckles were used to correct front-end angles. Heavy duty front skid plate and differential skid plate to increase protection. Multipoint differential relocation brackets secure differential and correct CV axle angles. Also included are longer sway bar links and braided stainless steel extended brake lines. In the rear, BDS gives the option to use 3" or 5" rear blocks and a U-bolt kit. To match the performance of the Fox Coil-Overs, precision-tuned Fox 2.0 Performance gas shocks are used in the rear. All of the possible SKUs depending on the option selected: 727FDSC, 728FDSC, 729FDSC and 730FDSC Top Features and Benefits
Tire & Wheel Combinations
Premium Quality, Lifetime Warranty and ProtectionBDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period. Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info |
Important Notes- Torsion bar tool required to unload the torsion bars.
- Requires frame bracket and differential modification. - Minor welding required for coil-over mount installation. - Stock 17" & 18" wheels cannot be reinstalled. - Stock 20" x 8.5" wheels with 6" backspacing or less will fit with a max tire size of 35 x 12.50. - Models with two piece rear driveshaft may require carrier bearing drop kit (#121612). - Coil-over designed for Diesel trucks. Use on gas models requires reducing coil spring preload to set at 6.5" of lift. - Will NOT fit dually applications. |
Make | Chevy |
---|---|
Model | Silverado 2500HD, Silverado 3500HD |
Year Fitment | 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011 |
2WD/4WD | 2WD, 4WD |
Manufacturer | BDS Suspension |
---|---|
Manufacturer Part Number | BDS727FDSC |
Item Number | bds_bds727fdsc |
MPN(UPC) | 840416420524 |
Product Line | Lift Kits |
Lift Height | 6 inch |
