6" 2015-2019 GMC Yukon 4wd (w/Autoride) Lift Kit by BDS Suspension
6" 2015-2019 GMC Yukon 4wd (w/Autoride) Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!
888-452-2548

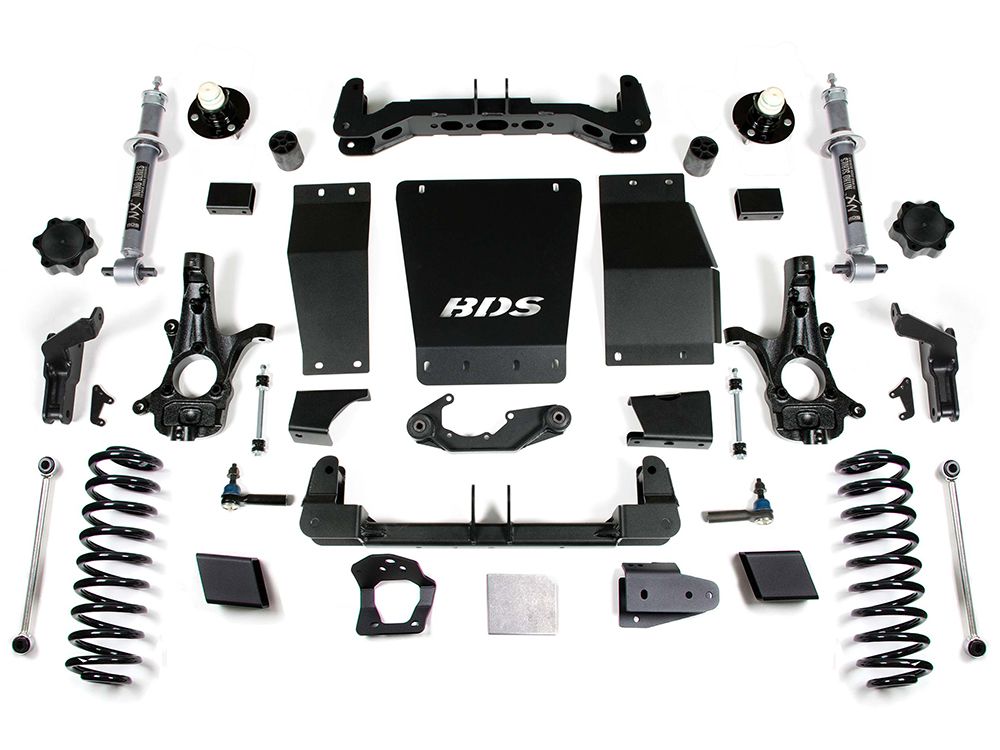

The BDS Suspension BDS737H 6 inch premium suspension lift kit for the GMC Yukon with Autoride will allow for fitment of up to 35 inch diameter tires for a great off-road look. Featured are a pair of 1/4" steel high clearance crossmembers and full width modular differential skid plate to reposition the lower arms and add protection of vital drivetrain components. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe and correct suspension and steering geometry to be compatible with the factory installed ESC system. Differential relocation brackets and CV spacers are used to correct the front axle positioning for stock-like CV axle angles and to retain use of the factory front driveshaft. In place of the stock struts, BDS supplies a pair of high pressure gas struts for improved performance and ride quality. Rounding out the front kit are a pair of replacement tie rod ends, longer sway bar links, brake line brackets, and a front laser cut BDS skid plate. In the rear a pair of a 5" ProRide coil springs are supplied to lift and level the stance. These offer improve offroad performance and more travel from the rear suspension. To correct the rear suspension geometry with the taller coils installed a pair of heavy duty adjustable upper control arms are supplied along with a track bar relocation bracket and support brace and longer sway bar links. This kit is available for all three factory control arm configurations (cast steel, stamped steel, and aluminum) so be sure to verify your factory control arm type before ordering. (see image above for details). Top Features:
Wheel Combinations
|
Important Notes1. Strut compressor required for installation. 2. Frame bracket modification and welding required. 3. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming. 4. AWD models may require front driveline modification 5. Factory 17" and 18" wheels cannot be reinstalled due to tie rod interference. 6. Will NOT work with Magneride equipped vehicles 7. Designed for models with Autoride only |
Make | GMC |
---|---|
Model | Yukon |
Year Fitment | 2019, 2018, 2017, 2016, 2015 |
2WD/4WD | 4WD |
Manufacturer | BDS Suspension |
---|---|
Manufacturer Part Number | BDS737H |
Item Number | bds_bds737h |
Product Line | Lift Kits |
Lift Height | 6 inch |
