6.5" 2001-2010 Chevy Silverado 2500HD/3500 4WD - Fox Coil-Over Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS738FDSC
$4945.89
- +
4945.89

6.5" 2001-2010 Chevy Silverado 2500HD/3500 4WD - Fox Coil-Over Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS738FDSC
From $4,945.89 Regular Price $5,046.83

6.5" 2001-2010 Chevy Silverado 2500HD/3500 4WD - Fox Coil-Over Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS738FDSC
From $4,945.89 Regular Price $5,046.83


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

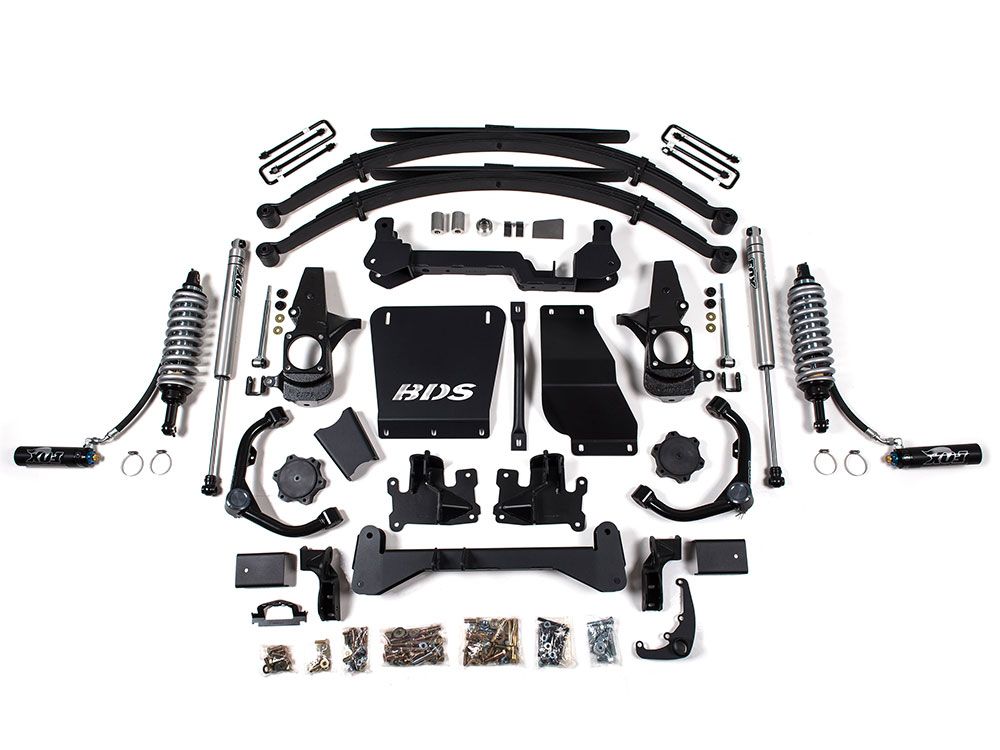

The BDS Suspension BDS738FDSC 6.5 inch lift kit for the 2001 thru 2010 Chevy Silverado 2500HD / 3500 is the ultimate premium kit to larger diameter tires and an amazing new aggressive look. Featuring Fox 2.5 Factory Series Remote Reservoir Coilovers that replace the factory torsion bars. The coilovers give vastly superior damping in both off-road on on-road conditions. DSC dual speed adjustment is include as an upgraded feature of the coilovers. BDS's high clearance crossmembers are included to improve clearance and off-road performance. Choose from 5 inch lift blocks or Pro-glide leaf springs to lift the rear.

Top Features and Benefits

  • 6.5 inch front lift / 5 inch rear lift
  • High-End Premium Lift Kit
  • Fox 2.5 Factory Series Remote Reservoir Coilovers w/DSC (adjustable)
  • Coilover replace factory torsion bars for unmatched suspension dampening
  • High Clearance Crossmembers for better off-road performance
  • CNC machined ductile iron Steering Knuckles
  • Tubular Upper Control Arms
  • Fox 2.0 Performance rear shocks
  • Made in the USA, using only premium quality components
  • Estimated Install time: 8 to 10 hours
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire and Wheel Combinations:

2001-2007 Classic Body Style
- 35 inch x 12.50 inch w/16 x 8 and 4-1/2 inch back spacing
- 35 inch x 12.50 inch w/17 or 18 x 9 and 5.5 inch back spacing
- 37 inch x 12.50 inch w/20 x 9 and 5.75 inch back spacing

2007-2010 New Body Style
- 35 inch x 12.50 inch w/16 x 8 and 4-1/2 inch back spacing
- 35 inch x 12.50 inch w/17 or 18 x 9 and 5.5 inch back spacing
- 35 inch x 12.50 inch w/20 x 9 and 5.75 inch back spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
BSD Upper Control Arms
These included high strength 1.5" OD x .120 wall tubular upper control arms feature MOOG premium ball joints, clevite rubber bushings (more durable than poly) and an indexed ball joint cup for more wheel travel.

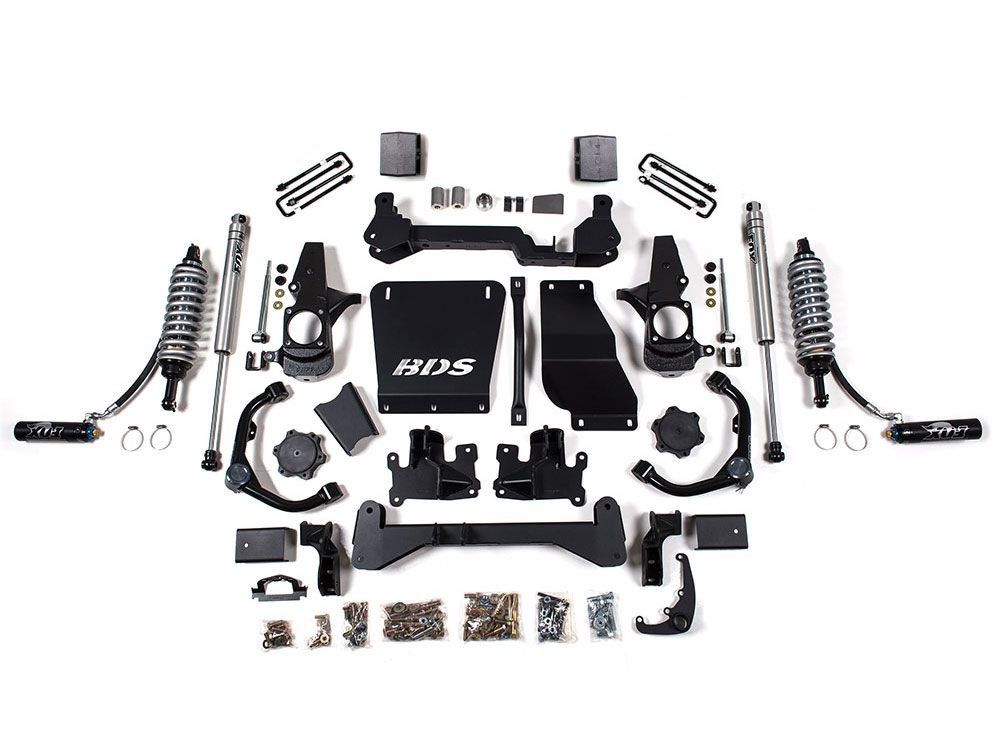

Important Notes- Image shows kit with optional rear leaf springs, kit include lift blocks
- Torsion Bar tool required to load/unload the torsion bars.
- Some welding required.
- Requires frame bracket modification and differential mount modification.
- 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
- Gas models require exhaust modification.
Vehicle Fitment
MakeChevy
ModelSilverado 2500HD, Silverado 3500
Year Fitment2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS738FDSC
Item Numberbds_bds738fdsc-config
Product LineLift Kits
Lift Height6 inch
