6.5" 2020-2024 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS753H / BDS1823FPE
$2455.42
- +
2455.42

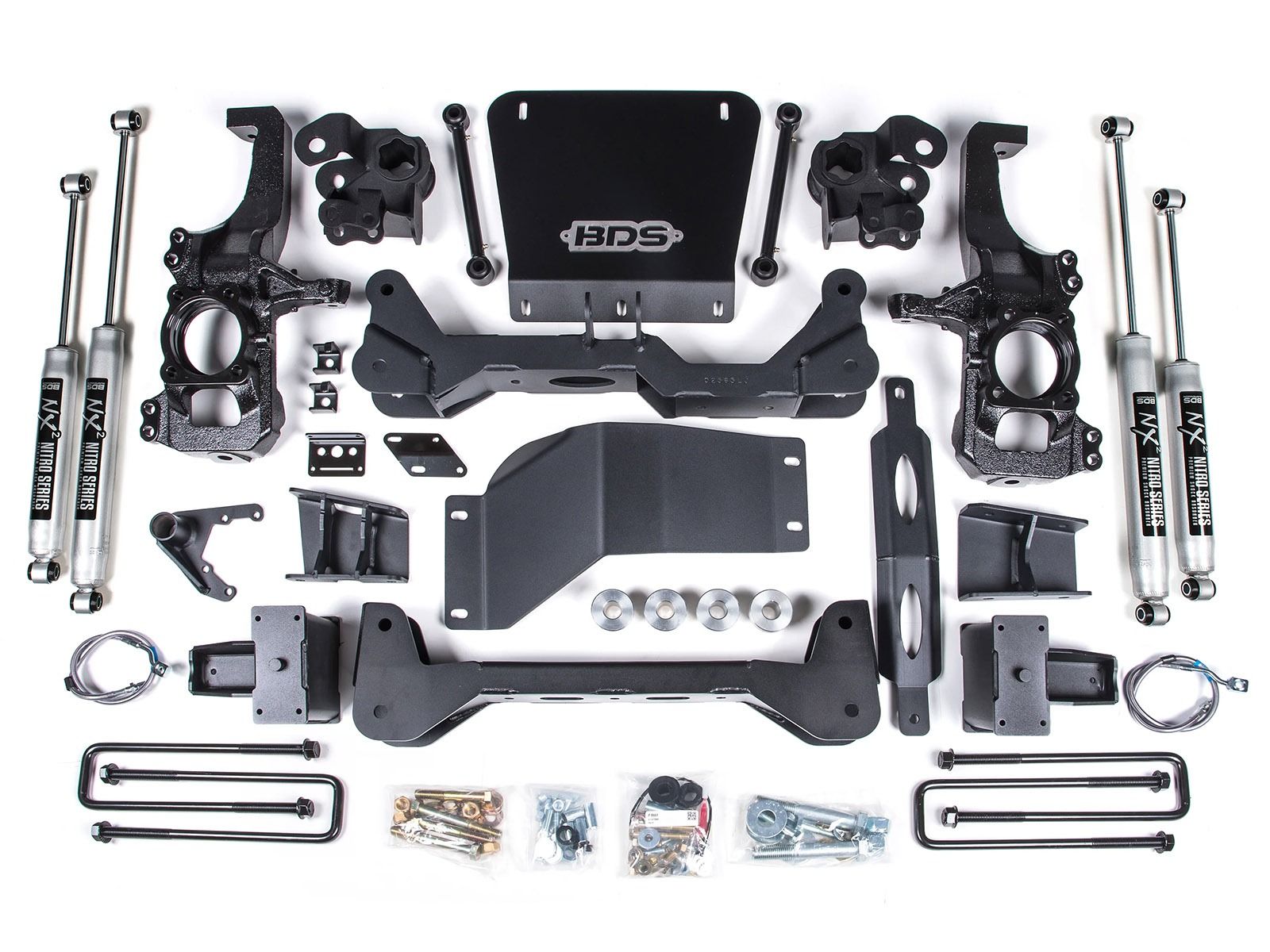

6.5" 2020-2024 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS753H / BDS1823FPE
From $2,455.42 Regular Price $2,505.53

6.5" 2020-2024 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS753H / BDS1823FPE
From $2,455.42 Regular Price $2,505.53


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

BDS Suspension's BDS753H High Clearance Lift Kit for the 2020 thru 2024 GMC Sierra 2500HD / 3500HD 4wd will raise your vehicle 6.5 inches which will allow use of 37 inch or 38 inch tires (depending on installed wheels) to improve off-roading performance while keeping great handling and ride quality.

This premium quality suspension lift kit is built around a set of 1/4 inch thick steel laser cut high clearance cross members that are designed to get maximum clearance and provide a rock solid mounting point for the factory lower control arms. A heavy duty front skid plate connects the cross members while protect steering and drive line components. Correct steering geometry is maintain using new ductile iron steering knuckles that keep the ESC system compatibility. CV axle angles are kept at a minimum using a multi-point front differential relocation system. The rear end is lifted using 5 inch tall axle blocks with extended u-bolts.

Fox 2.0 Performance IFP Shocks, BDS NX2 Shocks or Fox 2.5 Peformance Elite Adjustable Shocksare included for the front and rear.

All Possible SKU based on options selected: 753H, 753FS, 756H, 756FS, 1823FPE, 1825FPE

Top Features

  • Lifts vehicle 6.5 inch front / 5 inch rear
  • 1/4 Inch Steel High Clearance Cross Members
  • Heavy Duty Front Skid Plate
  • High Clearance design requires no torsion bar drop for max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Extended Stainless Steel Brake Lines
  • Allows use of up 38 inch tires
  • Average Install Time: 8 hours
  • Fox 2.0 Performance IFP Shocks, BDS NX2 Shocks or Fox 2.5 Peformance Elite Adjustable Shocks
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • Tires: 37 x 12.50, Wheels: 17x9, Backspacing: 4 1/2 to 4 5/8 inch
  • Tires: 37 x 12.50, Wheels: 18x9, Backspacing: 4 1/2 to 4 5/8 inch
  • Tires: 37 x 12.50, Wheels: 20x9 or 22x9, Backspacing: 4 1/2 to 6.18 inch
  • Tires: 38 x 12.50, Wheels: 20x9 or 22x9, Backspacing: 5 1/2 to 6.18 inch

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Important Notes
  • Torsion Bar Tool required to load/unload the torsion bars
  • Requires frame bracket modification
  • Models with two-piece rear driveshafts will require a carrier bearing drop kit
  • Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft
  • Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more that tested 6.5" lift height
  • U-bolts will not work vehicles equipped with top-mounted overload springs or add-a-leafs.
  • Compatible with gas or diesel models
  • Compatible with standard models as well as AT4 models
  • Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required.
Vehicle Fitment
MakeGMC
ModelSierra 2500HD, Sierra 3500HD
Year Fitment2024, 2023, 2022, 2021, 2020
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS753H / BDS1823FPE
Item Numberbds_bds753h
Product LineLift Kits
Lift Height6 inch
