5" 2020-2024 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS766H / BDS1822FPE
$2390.7
- +
2390.7

5" 2020-2024 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS766H / BDS1822FPE
From $2,390.70 Regular Price $2,516.53

5" 2020-2024 GMC Sierra 2500HD/3500HD 4WD Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS766H / BDS1822FPE
From $2,390.70 Regular Price $2,516.53


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

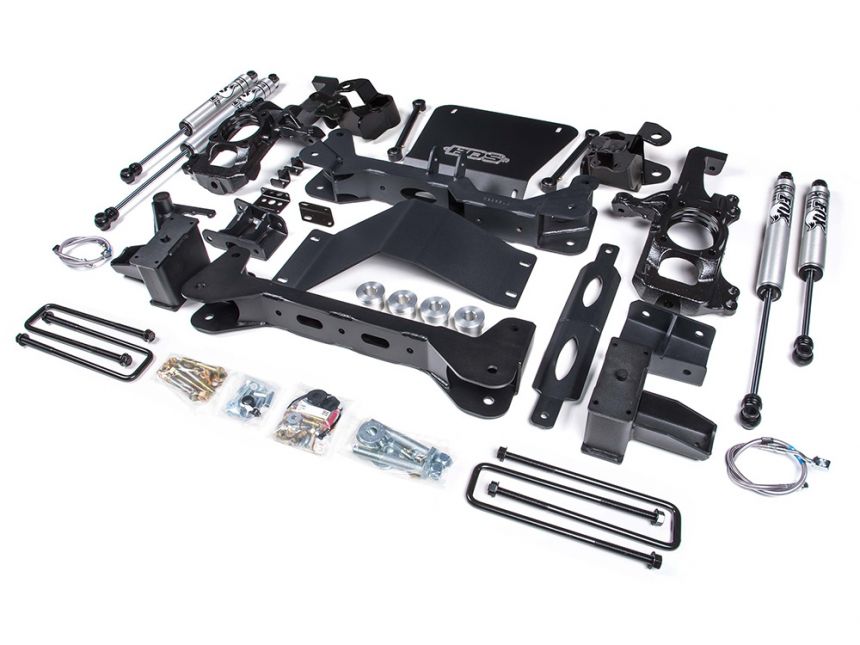

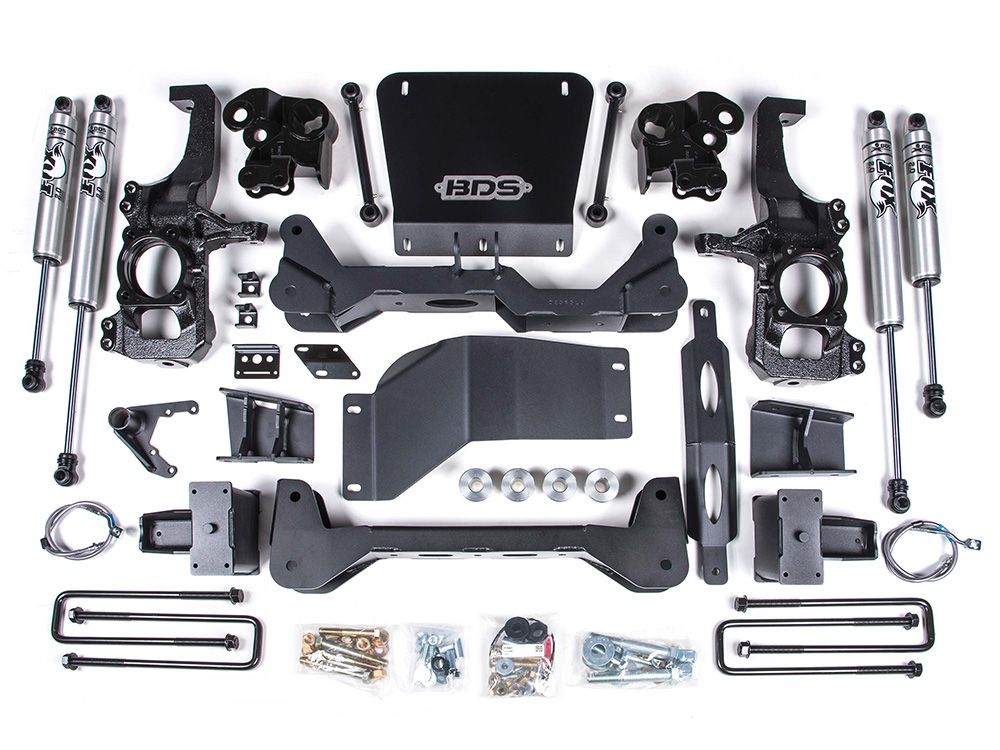

BDS Suspension's BDS766H High Clearance Lift Kit for the 2020 thru 2024 GMC Sierra 2500HD / 3500HD 4wd will raise your vehicle 5 inches which will allow use of 35 inch or 37 inch tires (depending on installed wheels) to improve off-roading performance while keeping great handling and ride quality.

At the heart of this new 5" systems BDS utilizes a pair of 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles are a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential to keep CV axle angles at a minimum. To help maximaze clearance a pair of torsion bar relocations brackets are supplied to mount to the lower control arms to retain the factory high clearance frame mounted crossmember. A pair of BDS-branded sway bar drop brackets used to correct the operating angle of the factory sway bar along with extended length braided stainless steel brake lines. Rounding out the front of this kit are FOX 2.0 performance series IFP shocks, BDS NX2 shocks or Fox 2.5 Peformance Elite Adjustable Shocks.

In the rear of this 5" lift system 3" lift blocks and longer u-bolts to lift and level the stance. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly a matching set of FOX 2.0 performance series IFP shocks, BDS NX2 shocks or Fox 2.5 Performance Elite shocks are supplied to compliment the front setup. All kits come finished in a durable textured black powdercoat and sent with all hardware packs to complete the install along with step-by-step installation instructions.

Top Features

  • Lifts vehicle 5 inch front / 3 inch rear
  • 1/4 Inch Steel High Clearance Crossmembers
  • Heavy Duty Front Skid Plate
  • High Clearance design requires no torsion bar drop for max clearance
  • Ductile Iron Heavy Duty Steering Knuckles keep ESC System compliance
  • Multi-Point Front Differential Relocation System
  • Extended Stainless Steel Brake Lines
  • Allows use of up 37 inch tires
  • Average Install Time: 8 hours

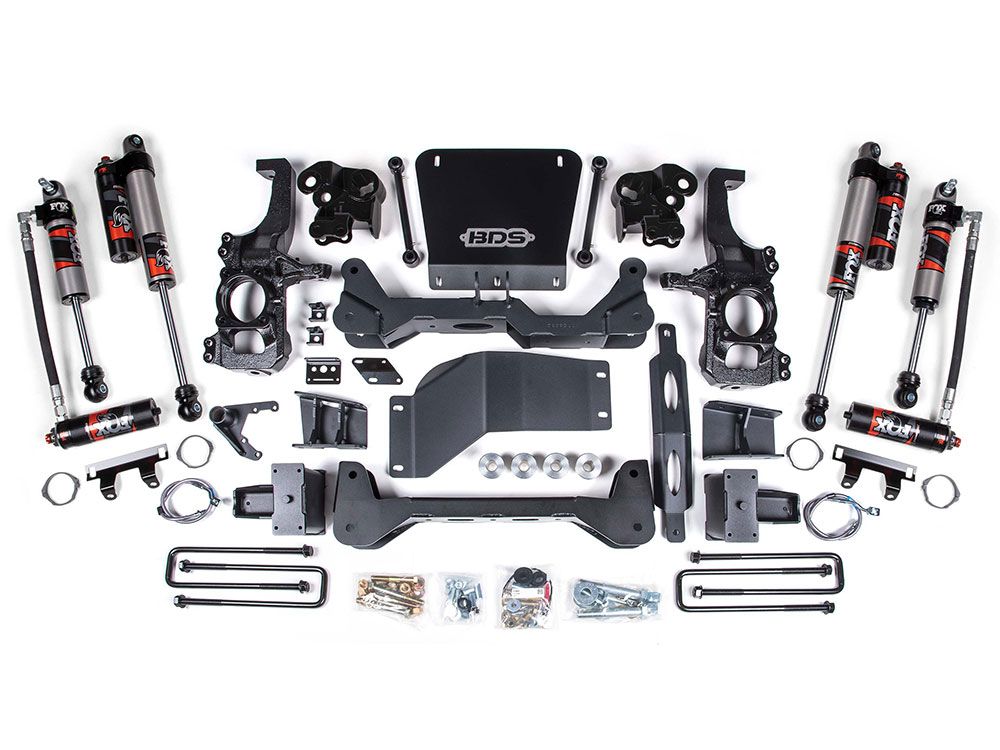

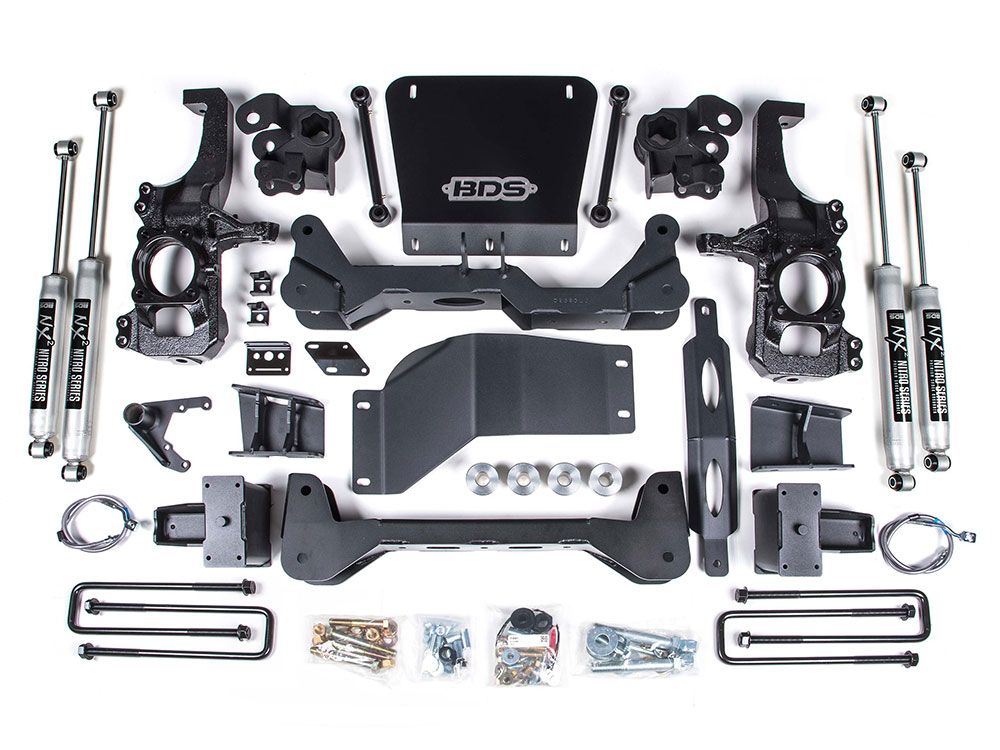

  • Fox 2.0 Performance IFP Shocks, BDS NX2 Shocks or Fox 2.5 Peformance Elite Adjustable Shocks
  • No Fine Print Lifetime Warranty
  • Factory Protection Plus

Tire & Wheel Combinations

  • Tires: 37 x 12.50, Wheels: 20 x 9, Backspacing:5" - 5.5"
  • Tires: 35 x 12.50, wheels: 20 x 10, Backspacing: 5" - 5.5"
  • Tires: 35 x 12.50, wheels: 17 x 9, Backspacing: 4.5" - 4.625"

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important Notes
  • Torsion Bar Tool required to load/unload the torsion bars
  • Requires frame bracket modification
  • Models with two-piece rear driveshafts will require a carrier bearing drop kit
  • Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire
  • In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft
  • Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more that tested 6.5" lift height
  • U-bolts will not work vehicles equipped with top-mounted overload springs or add-a-leafs.
  • Compatible with gas or diesel models
  • Compatible with standard models as well as AT4 models
  • Some minor trim will be required with certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally included the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. As a rule of thumb, deeper backspacing and shorter/narrower tires will reduce/eliminate trimming required.
Vehicle Fitment
MakeGMC
ModelSierra 2500HD, Sierra 3500HD
Year Fitment2024, 2023, 2022, 2021, 2020
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS766H / BDS1822FPE
Item Numberbds_bds766h
Product LineLift Kits
Lift Height5 inch
