5" 2020-2024 Chevy Silverado 2500HD/3500HD 4WD Lift Kit by BDS Suspension
FREE SHIPPING !!
on orders +$149, exclusions apply
Got Questions? We can help!

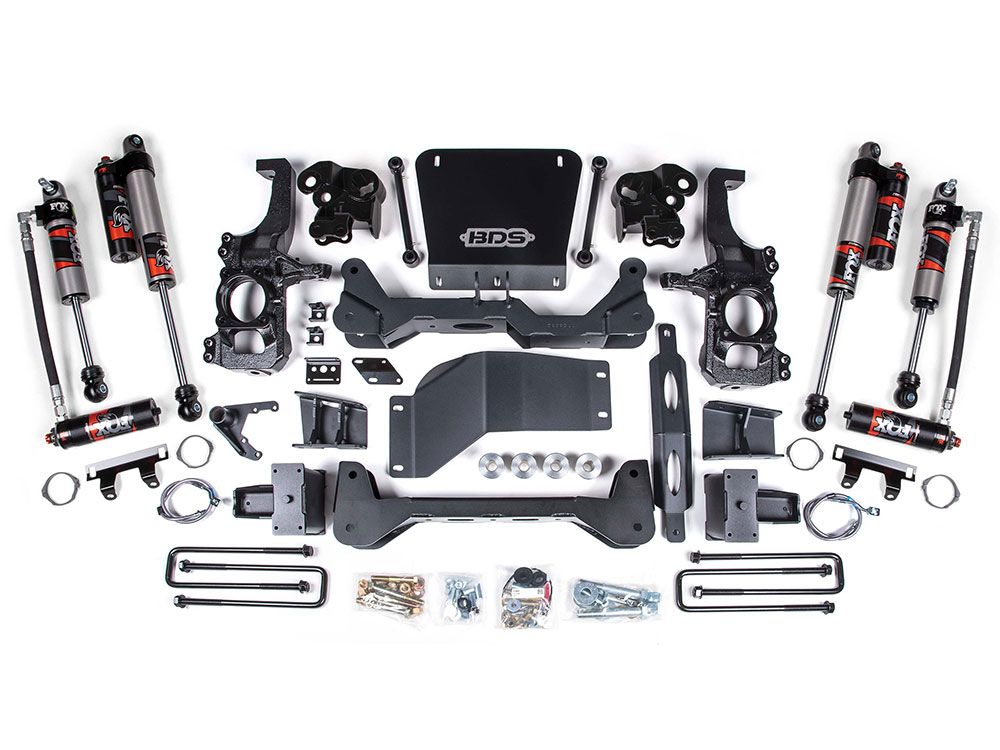

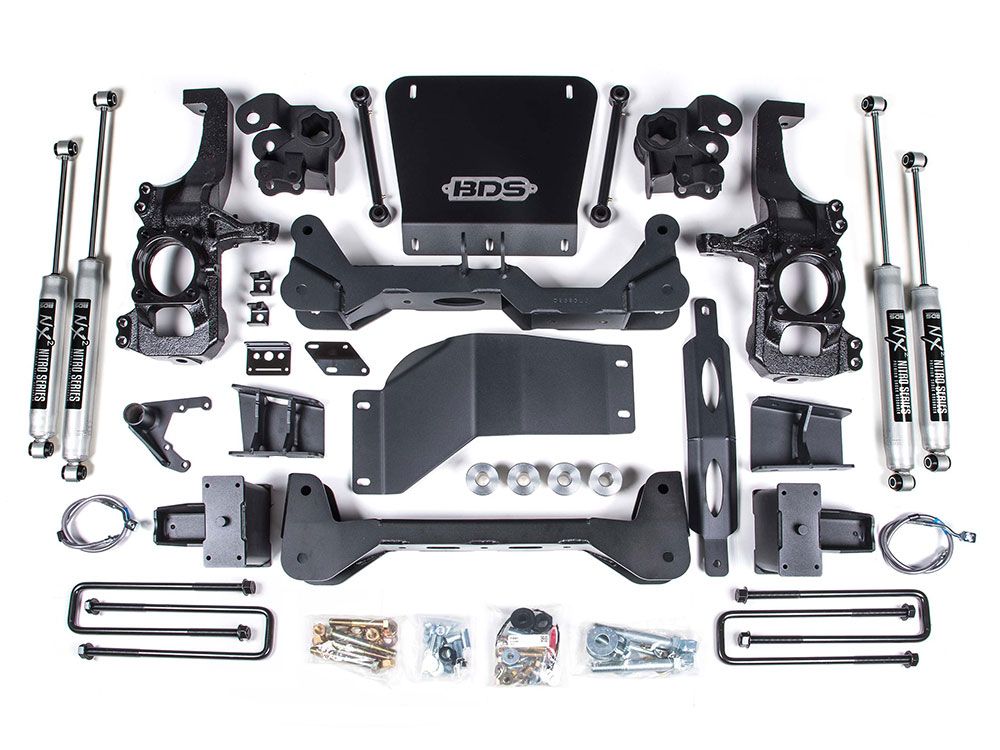

BDS Suspension's BDS766FS / BDS766H High Clearance Lift Kit for the 2020 thru 2024 Chevy Silverado 2500HD / 3500HD 4wd will raise your vehicle 6.5 inches which will allow use of 37 inch or 35 inch tires (depending on installed wheels) to improve off-roading performance while keeping great handling and ride quality.
At the heart of this new 5" systems BDS utilizes a pair of 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles are a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential to keep CV axle angles at a minimum. To help maximaze clearance a pair of torsion bar relocations brackets are supplied to mount to the lower control arms to retain the factory high clearance frame mounted crossmember. A pair of BDS-branded sway bar drop brackets used to correct the operating angle of the factory sway bar along with extended length braided stainless steel brake lines. Rounding out the front of this kit are FOX 2.0 performance series IFP shocks, BDS NX2 shocks or Fox 2.5 Peformance Elite Adjustable Shocks.
In the rear of this 5" lift system 3" lift blocks and longer u-bolts to lift and level the stance. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly a matching set of FOX 2.0 performance series IFP shocks, BDS NX2 shocks or Fox 2.5 Performance Elite shocks are supplied to compliment the front setup.
Tire & Wheel Combinations
All Possible SKUs Depending on Options Selected: BDS766H, BDS766FS, BDS767H, BDS767FS, BDS1822FPE, BDS1824FPE
Premium Quality, Lifetime Warranty and Protection
BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
GM High Clearance Crossmembers
Utilized in this kit are high clearance crossmembers. These integrate with a heavy duty skid plate to form a solid sub-frame while dramatically increasing ground clearance at the front crossmebmers.
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
|Model||Silverado 2500HD, Silverado 3500HD|
|Year Fitment||2024, 2023, 2022, 2021, 2020|
|Manufacturer Part Number||BDS766H / BDS 766FS / BDS1822FPE|
|Product Line||Lift Kits|
|Lift Height||5 inch|
