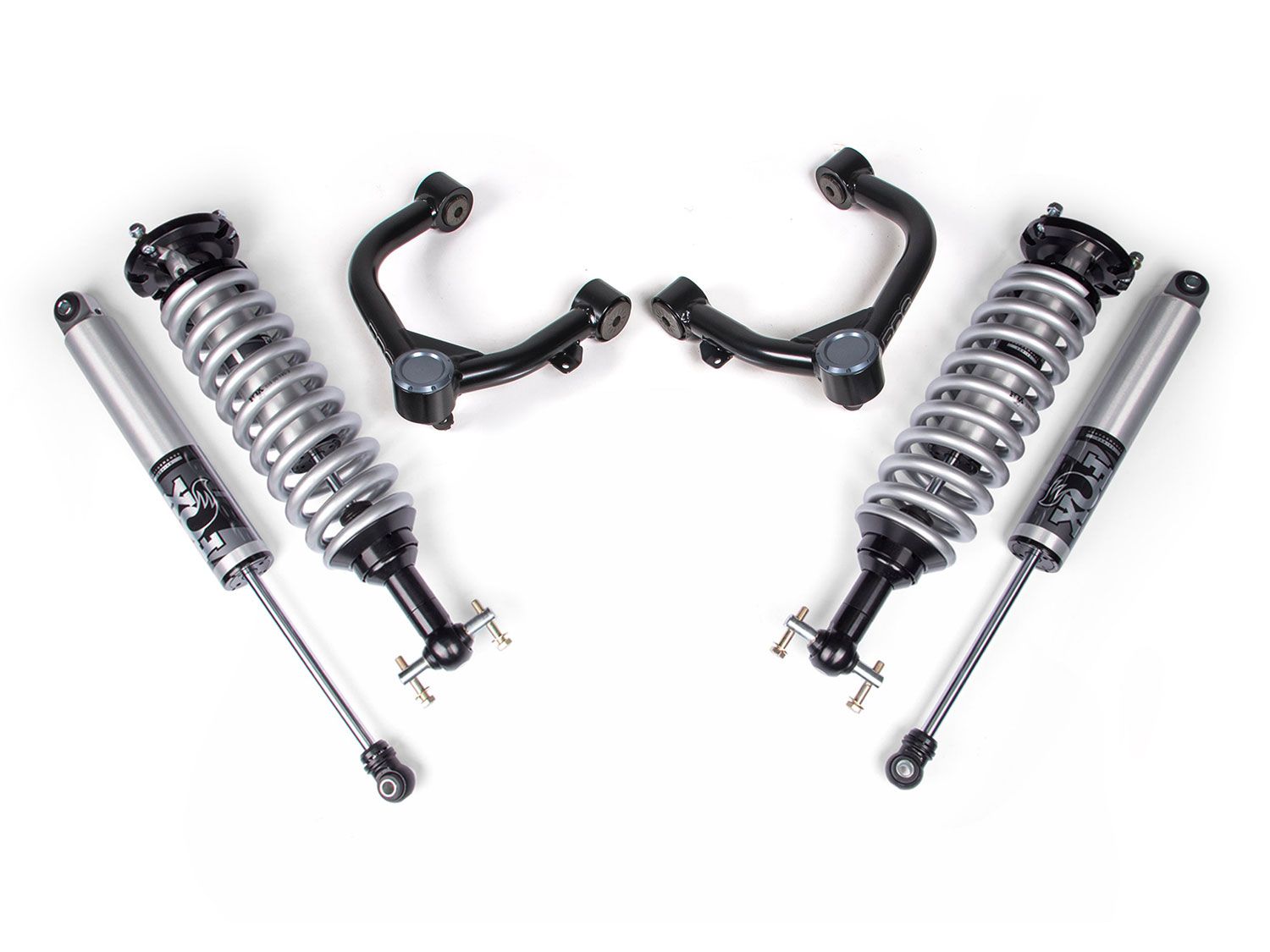

3.5" 2019-2024 GMC Sierra 1500 4WD Fox 2.5 Performance Coilover Lift Kit by BDS Suspension

The BDS BDS772FPS 3.5-Inch Lift Kit with FOX 2.5 Performance Series Coilovers and Shocks for 2019-2024 GMC Sierra 1500 trucks is a performance-focused suspension system designed to improve stance, ride quality, suspension strength, and off-road capability. This system combines heavy-duty BDS tubular upper control arms with FOX 2.5 Performance Series front coilovers and matching FOX 2.5 Performance Series rear shocks, creating a complete suspension package with application-specific damping and improved suspension control. The 3.5-inch lift provides additional ground and tire clearance while maintaining comfortable, predictable everyday drivability.

BDS tubular upper control arms replace the factory components to provide increased strength and an improved range of suspension motion. High-strength ball joints are designed to withstand greater loads than the factory components, while optimized ball joint positioning improves operating angles at the increased ride height. This geometry allows additional suspension travel while helping maintain proper alignment and controlled suspension movement for both street and off-road use.

FOX 2.5 Performance Series coilovers provide vehicle-specific front suspension tuning with increased fluid capacity and improved heat management for consistent damping under demanding conditions. Matching FOX 2.5 Performance Series rear shocks balance the suspension package from front to rear, providing fade-resistant damping and improved stability. Together, the FOX coilovers and shocks improve ride quality, handling, and suspension control for daily driving, towing, and off-road terrain.

The BDS772FPS can accommodate up to 33x12.50 tires with the recommended wheel specifications, although trimming may be required depending on the wheel and tire combination. Recommended configurations include 17x9, 18x9, or 20x9 wheels with 5.5 inches of backspacing. Installation is rated as easy, with an estimated four-hour installation time, and requires basic hand tools plus a ball joint separation tool.

Features and Benefits:

• Provides 3.5 inches of suspension lift for increased ground clearance and an aggressive stance
• FOX 2.5 Performance Series front coilovers provide application-specific damping and improved suspension control
• FOX 2.5 Performance Series rear shocks provide balanced front-to-rear ride and handling performance
• Large 2.5-inch FOX shock bodies provide increased fluid capacity and improved heat management
• Fade-resistant FOX damping provides consistent performance during demanding on-road and off-road use
• Improves ride quality, handling, stability, and suspension control
• Provides improved suspension performance for daily driving, towing, and off-road use
• Heavy-duty BDS tubular upper control arms provide increased strength over factory components
• High-strength upper control arm ball joints provide increased durability under demanding suspension loads
• Optimized ball joint positioning improves operating angles at the increased ride height
• Upper control arms provide an increased range of motion and additional suspension travel
• Designed to maintain comfortable and predictable everyday drivability
• Accommodates up to 33x12.50 tires with recommended wheel specifications
• Recommended wheel sizes include 17x9, 18x9, or 20x9 with 5.5 inches of backspacing
• Estimated installation time: 4 hours
• Installation difficulty: Easy
• Requires basic hand tools and a ball joint separation tool for installation
