7" 2016-2021 Toyota Tundra 4wd & 2wd Fox Coil Over Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS818F / BDS818FDSC
$3901.6
- +
3901.6

7" 2016-2021 Toyota Tundra 4wd & 2wd Fox Coil Over Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS818F / BDS818FDSC
From $3,901.60 Regular Price $4,106.95

7" 2016-2021 Toyota Tundra 4wd & 2wd Fox Coil Over Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS818F / BDS818FDSC
From $3,901.60 Regular Price $4,106.95


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

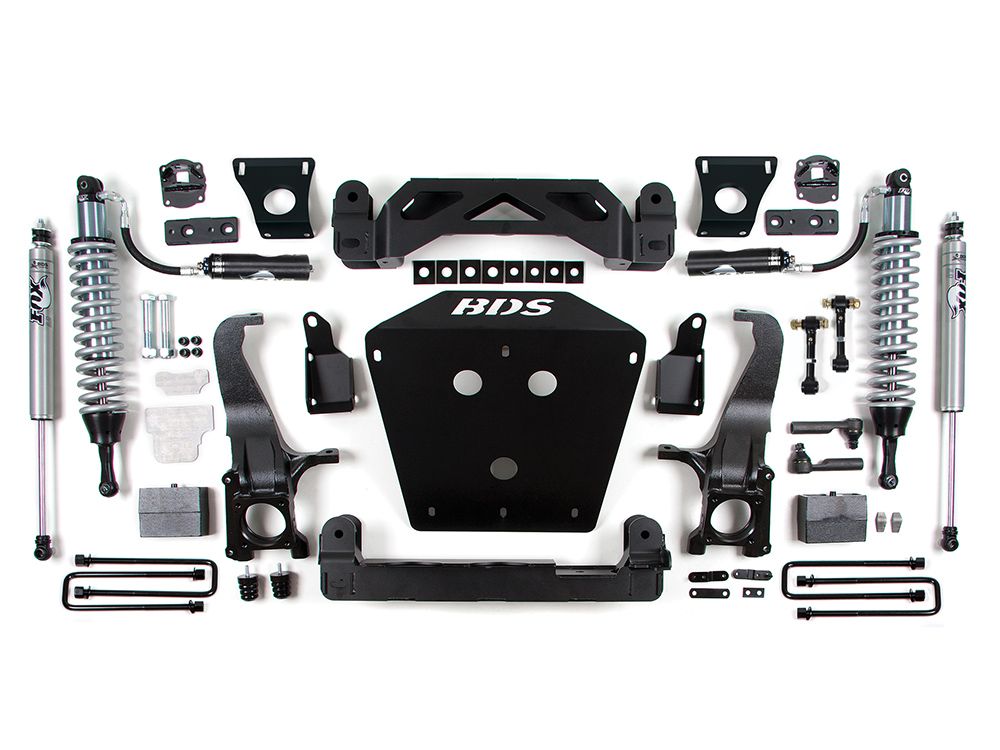

This premium quality BDS Suspension BDS818F 7 inch lift kit for the Toyota Tundra is built around Fox 2.5 remote reservoir coilovers for the ultimate suspension system for on and off-road performance. Included are High Clearance one-piece front & rear crossmembers built from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the crossmembers while providing protection for the front differential. Heavy duty machined and cast steering knuckles replace the light-duty factory knuckles. To lift the rear end of the Tundra 4 inch axle blocks, extended ubolts and brake line relocation brackets are included.

Nothing complements this BDS Suspension better than the race proven design of Fox 2.5" remote reservoir coil-over front shocks. These have been specifically engineered to fit the BDS Suspension system and feature an external reservoir for increased oil cooling capacity and nitrogen volume for a more consistent and comfortable ride. These have also been pre-set by BDS to the correct ride height for an easy installation, but can also be fined tuned to your liking. These are paired with Fox 2.0 Performance rear shocks.

Top Features

  • 7 inch front lift / 4 inch rear lift, for level stance
  • Premium Quality Components
  • Fox 2.5 Remote Reservoir Coil-Overs
  • Fox 2.0 Performance Rear Shocks
  • High Clearance Crossmembers for Maximum Clearance
  • Heavy Duty Skid Plate Protects Front Differential
  • Machined Cast Iron Knuckles
  • Extended Sway Bar End Links
  • Made in the USA
  • Powder Coated for Durability
  • No Fine Print Warranty
  • Free Supplemental Drivetrain Protection on Qualified Vehicles
  • Estimated Install Time: 8 Hours

Tire & Wheel Combinations

  • 35 x 12.50 w/ 18x9 and 5-1/2 inchback spacing
  • 35 x 12.50 w/ 20x9 and 5-1/2 inch back spacing
  • 37 x 12.50 w/ 20x9 and 6-1/4 inchback spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

Product Highlights

Fox 2.0 Performance Series
Fox 2.0 Performance Series shocks are included in this kit or offered as an upgrade option. These awesome shocks feature a 2 inch clear anodized aluminum one-piece body. Designed as a gas mono-tube with an internal floating piston (IFP) that has application specific valving for great on and off-road performance.
Fox Coil-Over DSC Adjustment
The included Fox coil-overs can be upgrade or include the awesome DSC (dual speed compression) adjuster. This feature allows you the ability to control how soft or stiff your coil-overs will ride at both low and high speeds. Simply turn one of two dials, each with over 10 click positions.
Steering Knuckles
Included are two heavy duty steering knuckles. These CNC-machined ductile iron steering knuckles replace the lighter duty factory knuckles. Powder coated to survive the elements. Providing a safe and stable method to correct steering geometry on a lifted vehicle.
Important Notes
  • Requires frame bracket modification and welding on 4wd models
  • Stock 18" wheels can not be installed. Factory 20" wheels with more than 6.25" backspacing can not be installed
  • Models with two piece rear drive line would require rear drive shaft modification
  • Models equipped with 6 piston calipers require modification.
  • Will not fit TRD Pro models
  • On 2wd models only fits 2016 thru 2017
Vehicle Fitment
MakeToyota
ModelTundra
Year Fitment2021, 2020, 2019, 2018, 2017, 2016
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS818F / BDS818FDSC
Item Numberbds_bds818f
Product LineLift Kits
Lift Height7 inch
