7" 2016-2021 Toyota Tundra - Fox 2.5 Performance Elite CoilOver Lift Kit by BDS Suspension

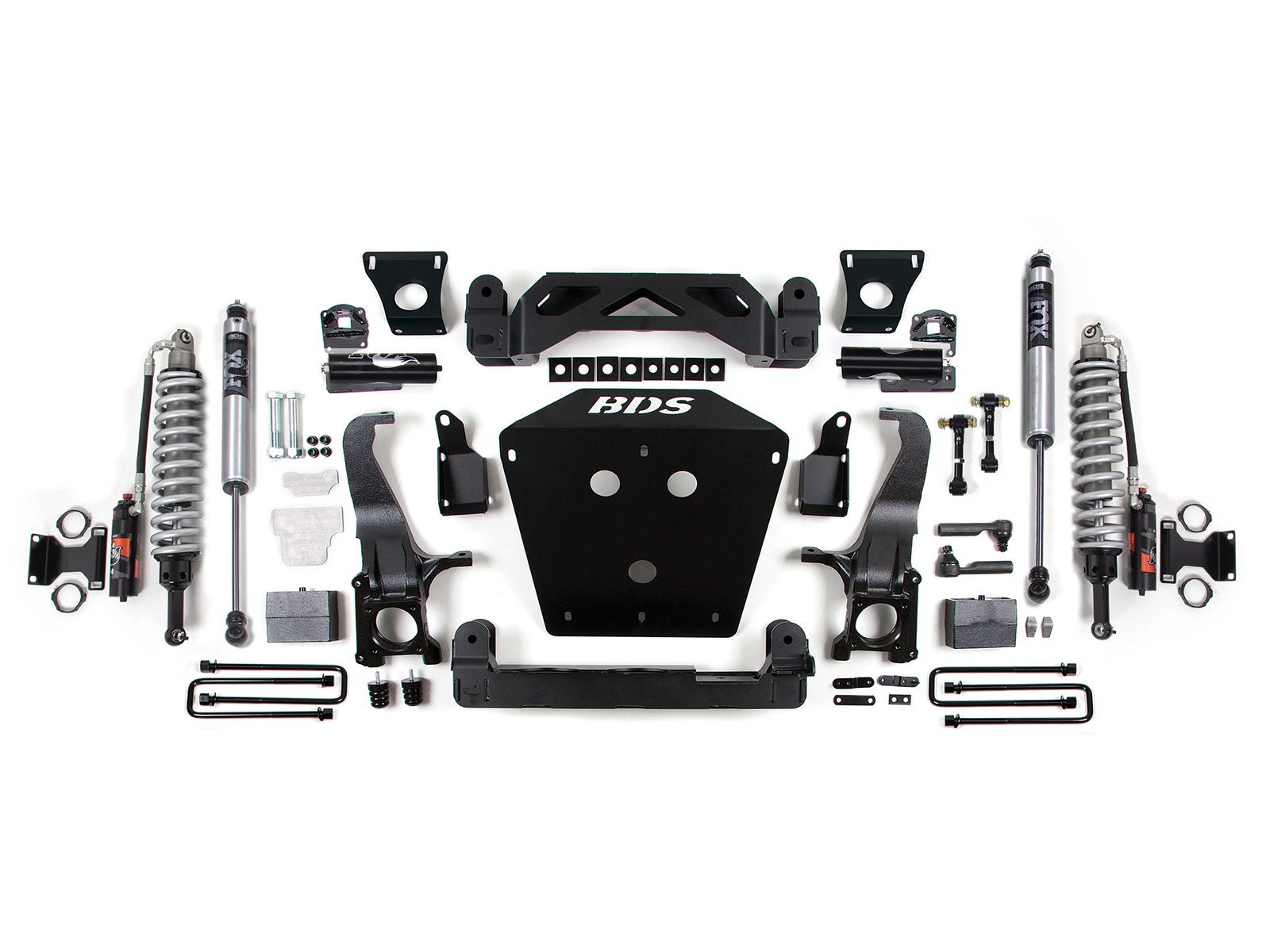

This premium quality BDS Suspension BDS818FPS / BDS818FPE 7-inch lift kit for the Toyota Tundra is built around Fox 2.5 Performance Elite remote reservoir coilovers for the ultimate suspension system for on and off-road performance. High-Clearance one-piece front & rear cross-members are made from 1/4 inch laser cut steel and designed for maximum ground clearance. A massive skid plate connects the cross members while protecting the front differential. Heavy-duty machined and cast steering knuckles replace the light-duty factory knuckles. To lift the rear end of the Tundra, 4-inch axle blocks, extended bolts, and brake line relocation brackets are included.

Choose the rear shocks that are right for you! Fox 2.0 Performance Shocks are a great option, using a 2-inch aluminum body and monotube gas design. Upgrade to the awesome Fox Performance Elite 2.5 shocks with DSC adjustment. Featuring a 2.5-inch aluminum body and remote reservoirs. Each reservoir houses a DSC adjustment knob that gives you control of your ride, with adjustments from smooth to firm.

Top Features

• 7-inch front lift / 4-inch rear lift, for a level stance
• Allows for use of up to 37-inch tires
• Premium Quality Components
• Fox 2.5 Performance Elite Remote Reservoir Coil-Overs w/DSC Adjusters in coilover reservoirs allow you to adjust ride from soft to firm with the turn of a dial
• REAR Fox 2.0 Performance Shocks or 2.5 Performance Elite Shocks (adjustable)
• High Clearance Crossmembers for Maximum Clearance
• Heavy Duty Skid Plate Protects Front Differential
• Machined Cast Iron Knuckles
• Extended Sway Bar End Links
• Made in the USA
• Powder Coated for Durability
• No Fine Print Warranty
• Estimated Install Time: 8 Hours

Tire & Wheel Combinations

• 35 x 12.50 w/ 18x9 and 5-1/2 inchback spacing
• 35 x 12.50 w/ 20x9 and 5-1/2 inch back spacing
• 37 x 12.50 w/ 20x9 and 6-1/4 inchback spacing

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase. Click here for more info

• Vehicles with 2-piece rear driveshaft need to order carrier bearing shim kit BDS 128409
• No strut disassembly required
• Optional 1-inch rear shackle can be ordered BDS 128109
• Stock 18" wheels can not be installed. Factory 20" wheels with more than 6.25" backspacing can not be installed
• Models equipped with 6 piston calipers require modification.
• Will NOT fit TRD Pro (Bilstein and Fox PIggyback Strut) models
