4" 2016-2023 Toyota Tacoma Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS822FS
Special Price $2,104.87 Regular Price $2,215.65


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

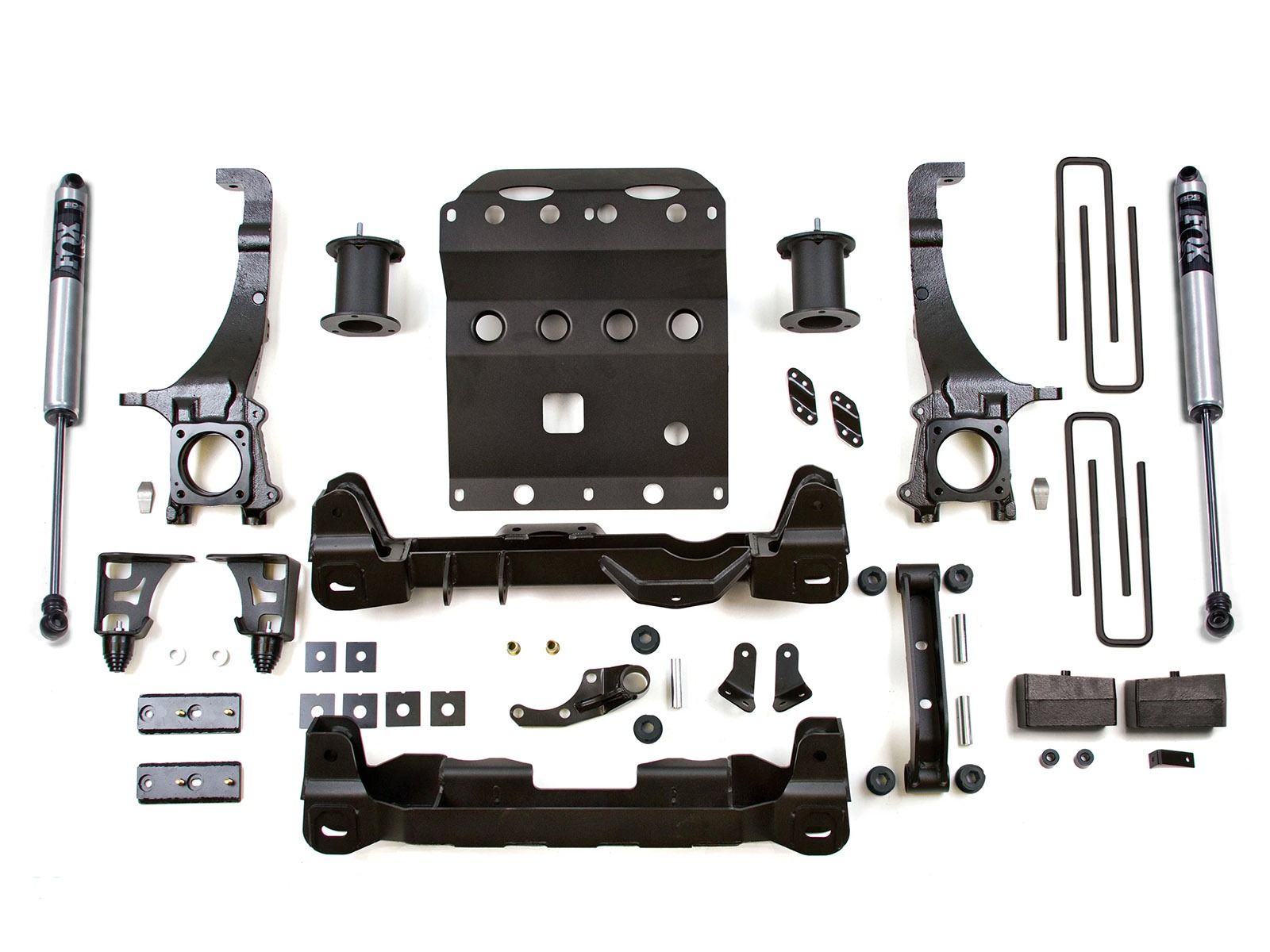

This BDS Suspension BDS822FS for the Toyota Tacoma allows for larger diameter tires (33 inch) and gives your truck an aggressive off-road looking. Designed around full 1 piece front & rear crossmembers paired with machined cast iron steering knuckles. The steering knuckles are designed to work within the factory traction control constraints and provide stock-like handling characteristics. The factory front struts are retained with the kit utilizing a top strut spacer to gain the proper lift height.

The rear of the kit comes with 3" blocks and u-bolts to level the truck and all of the necessary brake line relocation brackets needed.

Included are Fox 2.0 Performance rear shocks. These feature a one-piece aluminum body that will never rust.

This system will also fit 2wd PreRunner models, but will not work on the standard 2wd model.

Top Features

  • 4 inch front lift / 3 inch rear lift
  • Maintains factory like handling
  • 1-piece front and rear crossmembers, 1/4 inch steel
  • Heavy duty belly pan skid plate
  • Differential mounts drop front diff for optimal CV & driveshaft angles
  • Top strut spacers
  • Fox 2.0 rear shocks
  • Powder coated for durability
  • Premium quality and engineering
  • Made in the USA
  • Limited Lifetime Warranty
  • Rear blocks and ubolts
  • Install Time: 6 to 8 hours
  • Difficulty level (1 - 5): 3

Tire & Wheel Combinations

  • 33 x 12.50 - w/18 x 9 and 4.5" Max. backspacing
  • 33 x 12.50 - w/ 20 x 9 and 4.5" max. back spacing
  • Trimming may be required

Warranty & Protection

Top Warranty - BDS Suspension Products are backed by their "No Fine Print Warranty". Their products feature some of the finest quality and engineering in the automotive industry. Do not settle for anything less than the best suspension lift kit on the market.

If you are the original purchaser of any BDS lift kit and it breaks, they give your a new part.

Drivetain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) gives you piece of mind with your purchase. Click here for more info

Important Notes
  • Will not work on TRD Pro Models
  • Minor welding required
  • Requires frame bracket modification
  • Stock wheels cannot be reinstalled
  • System will work on 2WD PreRunner models
  • Can not use 17" wheels
Vehicle Fitment
MakeToyota
ModelTacoma
Year Fitment2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016
2WD/4WD4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS822FS
Item Numberbds_bds822fs
MPN(UPC)840416421637
Product LineLift Kits
Lift Height4 inch



Warning - Cancer and Reproductive HarmWARNINGCancer and Reproductive Harm. www.p65warnings.ca.gov/
