6" 2016-2023 Toyota Tacoma 4wd Lift Kit by BDS Suspension Brand: BDS Suspension | SKU: BDS823FS
$2156.17
- +
2156.170000

6" 2016-2023 Toyota Tacoma 4wd Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS823FS
Special Price $2,156.17 Regular Price $2,269.65

6" 2016-2023 Toyota Tacoma 4wd Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: BDS823FS
Special Price $2,156.17 Regular Price $2,269.65


free shipping truck FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

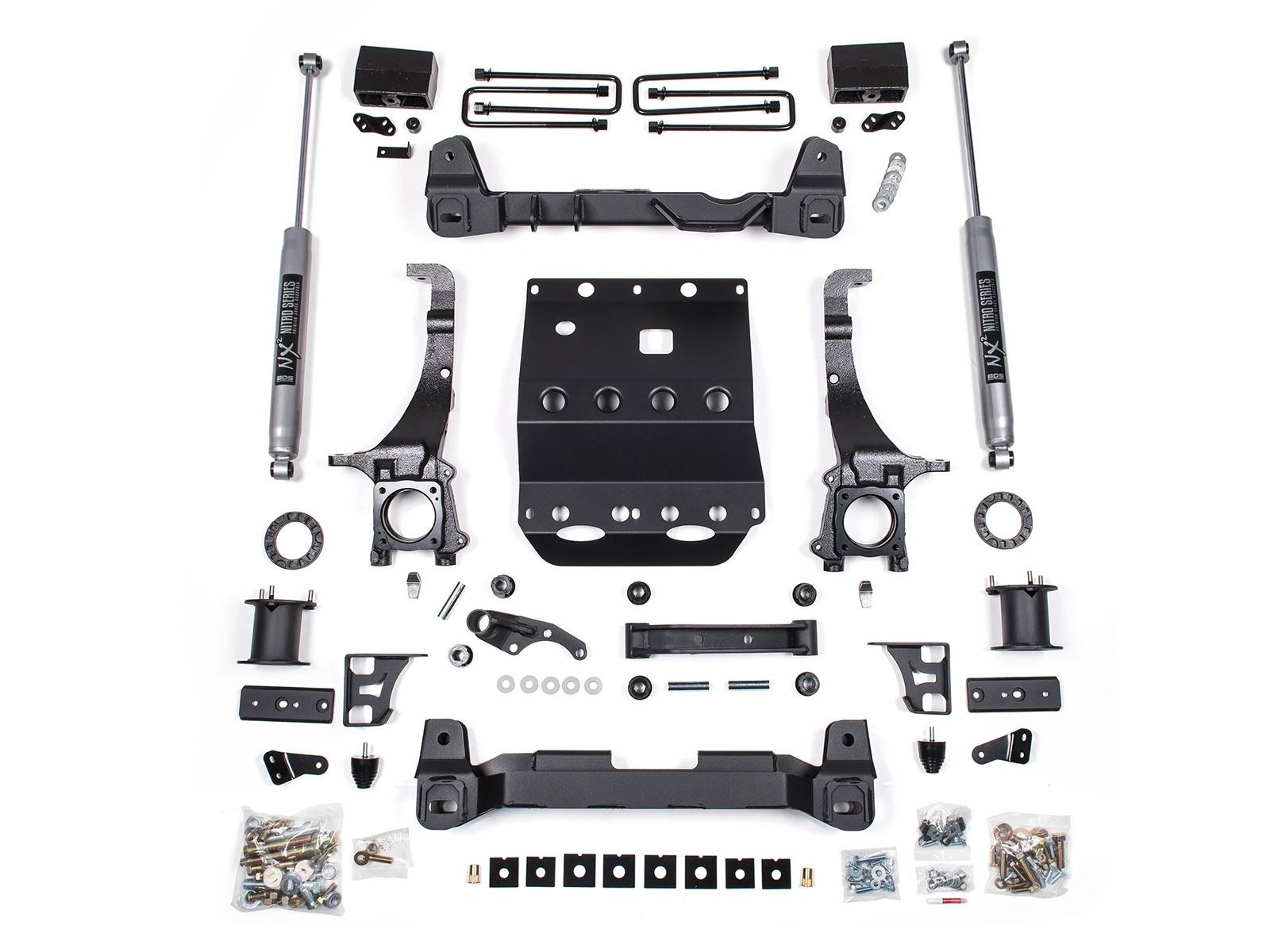

This BDS Suspension BDS823FS 6 inch lift kit for the Toyota Tacoma is a premium system that allows for use of larger diameter tires. Following BDS proven design standards, the system utilizes full 1 piece front & rear crossmembers coupled with precision machined ductile cast iron steering knuckles. The steering knuckles are designed to work within the factory traction control constraints and provide stock-like handling characteristics. The knuckles are also considerably more robust in both the mass and strength categories over the rather light-duty stock components.

The crossmembers are built from ¼" steel plate and have integrated differential mounts that work with the new provided differential mounts to properly drop and reposition the front differential for optimal CV and front driveshaft angles.

The whole package is protected by a new belly pan skid plate that runs from the front to rear crossmember and integrates cleanly with the factory front skid/splash guard.

The factory front struts are retained with the kit utilizing both a preload spacer and top strut spacer to gain the proper lift height.

The rear of the kit comes with 4" blocks and u-bolts to level the truck and all of the necessary brake line relocation brackets needed.

Top Features

  • Heavy Duty Cast Iron Steering Knuckles
  • One-Piece Front & Rear Crossmembers
  • Belly Pan Skip Plate Included
  • 6 inch Front Lift / 4 inch Rear Lift
  • Rear Fox 2.0 Performance Shocks
  • Rear Blocks and Extended U-bolts
  • Estimated Install Time: 6 to 8 hours
  • No Fine Print Lifetime Warranty (you break it, we replace it)
  • Best Quality and Engineering in the Industry
  • Proudly Made in the USA

Tire & Wheel Combinations

  • 35 x 12.50 w/18 x 9 and 4.5" Max. backspacing
  • w/ 20 x 9 and 4.5" max. back spacing

*Trimming may be required*

Premium Quality, Lifetime Warranty and Protection

BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.

Important Notes- Will not work on TRD Pro Models
- Minor welding required
- Requires frame bracket modification
- Strut compressor required for installation
- Stock wheels cannot be reinstalled
- System will work on 2WD PreRunner models
- Can not use 17" wheels.
Vehicle Fitment
MakeToyota
ModelTacoma
Year Fitment2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part NumberBDS823FS
Item Numberbds_bds823fs
Product LineLift Kits
Lift Height6 inch
