5.5" 2017-2020 Toyota Tacoma TRD Pro Lift Kit by BDS Suspension

Brand: BDS Suspension | SKU: 834H
Special Price $2,356.67 Regular Price $2,454.86

free shipping truck FREE SHIPPING !!
on orders +$99, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Overview
More Information

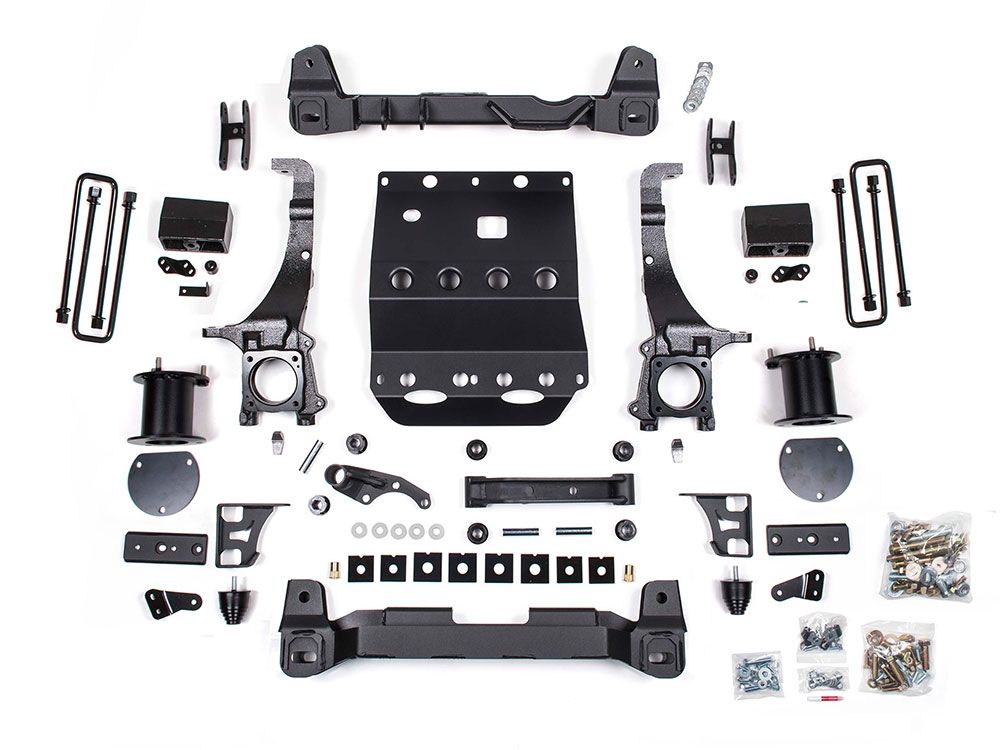

This BDS Suspension 834H 5.5" lift kit for the Toyota Tacoma TRD Pro allows for larger diameter tires (35 inch) and gives your truck an aggressive off-road looking while retaining the factory FOX internal bypass coilovers and shocks.

Built for strength and durabilty this kit features front and rear heavy crossmembers that are paired with a full width belly skid plate to form a solid subframe and improved off-road protection. with machined cast iron steering knuckles. The included high strength ductile iron steering knuckles give optimal on-road handling with ESC System compatibility along with improved ground clearance for better off-road performance. Additionally this kit includes bump stop brackets, sway bar relocation, lower control arm cams and brake line brackets. Top mounted strut spacers to use with the OE coilovers.

The rear of the kit comes with 4" blocks and u-bolts to level the truck and all of the necessary brake line relocation brackets needed.

Top Features

  • 5.5 inch front lift / 4 inch rear lift
  • Keeps factory Fox Coilovers and shocks
  • Maintains factory like handling
  • Heavy duty front and rear crossmembers, 1/4 inch steel
  • High clearance design
  • Full width belly pan skid plate
  • Differential mounts drop front diff for optimal CV & driveshaft angles
  • Top strut spacers
  • Powder coated for durability
  • Premium quality and engineering
  • Made in the USA
  • Limited Lifetime Warranty
  • 4' Rear blocks and ubolts
  • Install Time: 6 to 8 hours
  • Difficulty level (1 - 5): 3

Tire & Wheel Combinations

  • 35 x 12.50 -  w/18 x 9 and 4.5" Max. backspacing
  • 35 x  12.50 - w/ 20 x 9 and 4.5" max. back spacing
  • Trimming may be required

Warranty & Protection

Top Warranty - BDS Suspension Products are backed by their "No Fine Print Warranty". Their products feature some of the finest quality and engineering in the automotive industry.  Do not settle for anything less than the best suspension lift kit on the market.

If you are the original purchaser of any BDS lift kit and it breaks, they give your a new part.

Drivetain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) gives you piece of mind with your purchase.  Click here for more info


Important Notes
  • Will work on TRD Pro models only
  • Minor welding required
  • Requires frame bracket modification
  • Stock wheels cannot be reinstalled
  • Can not use 17" wheels
Vehicle Fitment
Year Fitment2020, 2019, 2018, 2017
Tech Specs
ManufacturerBDS Suspension
Manufacturer Part Number834H
Item Numberbds_834h
Product LineLift Kits
Lift Height5.5 inch


Warning - Cancer and Reproductive HarmWARNINGCancer and Reproductive Harm. www.p65warnings.ca.gov/
