Ram 1500 2019-2023 Dodge 4wd - Bilstein FRONT 5100 Series Adjustable Height Shock (0-2.6" Front Lift) Brand: Bilstein | SKU: 24-300872
- +

Ram 1500 2019-2023 Dodge 4wd - Bilstein FRONT 5100 Series Adjustable Height Shock (0-2.6" Front Lift)

Brand: Bilstein | SKU: 24-300872
Special Price $157.00 Regular Price $218.90

free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply


See Set of 4 Bilstein 5100 for Ram 1500

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

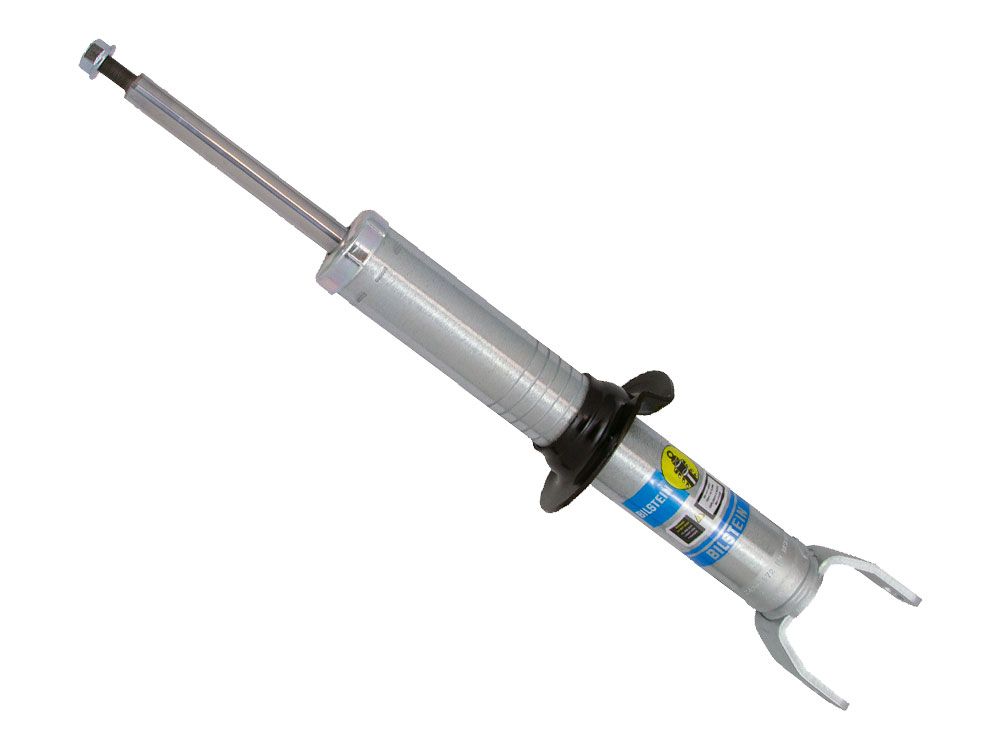

Bilstein 24-300872 B8 5100 (Ride Height Adjustable) front shock absorbers designed for the Dodge Ram 1500 4WD feature multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.6 inches of front lift with OE springs. These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting. Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle and a great alternative to traditional leveling and lift kits.

Features & Benefits

  • Adjustable Lift Height, Multiple Positions
  • Great Solution to Level Vehicle
  • High-Pressure Monotube Design
  • Replaces Factory Struts, Keeps Coil Springs
  • Zinc Plated Finish with Clear Coat for Maximum Protection
  • Superior to spacer lifts
  • 46mm Monotue design for fade-free operation on all types of terrain with great ride quality
  • Digressive valving - shocks will internally react and adjust to driving conditions
  • Limited Lifetime Warranty

Adjustable Ride Height

The ability to adjust the ride height of these Bilstein shocks is a significant selling point. Each Adjustable 5100 has multiple snap-ring grooves carved into the shock body, allowing the spring seat to be set in different positions. Before installation, choose the best height for your situation. The included instructions will explain the height each groove will provide.

  • Seven positions or settings for Ram 1500
  • Standard Ram models lift height settings: Stock height to 2.6 inches (stock, 0.5 inches, 0.9 inches, 1.3 inches, 1.7 inches, 2.2 inches, and 2.6 inches)
  • Rebel or Off-Road Package Models settings:  Stock height to 2" (stock, 0.5 inch, 1 inch, 1.5 inch, 2 inch)

Are Bilstein 5100 Shocks Worth the Money?

For most Ram 1500 owners, the answer is yes. Bilstein shocks are known for their durability and performance. They are designed to provide improved handling, stability, and control for off-road vehicles and trucks. They are giving a substantial upgrade over factory OEM struts. The ability to adjust the ride height is a bonus that makes the decision pretty easy.

Important Notes1. Sold individually, quantity (2) required.
2. Fits new body style only, excludes DS models (old body style)
3. Price shown is for quantity (1) shock absorber. Quantity (2) shock absorbers are required for most applications.
3. Replaces old part number 24-232003
4. Rebel and models with Off-Road package will be lifted a maximum of 2 inches.
5. Alignment recommended after installation
Vehicle Fitment
ModelRam 1500
Year Fitment2023, 2022, 2021, 2020, 2019
Tech Specs
Manufacturer Part Number24-300872
Item Numberbil_24-300872
Product LineShock Absorbers
Shock SeriesBilstein 5100 Series
