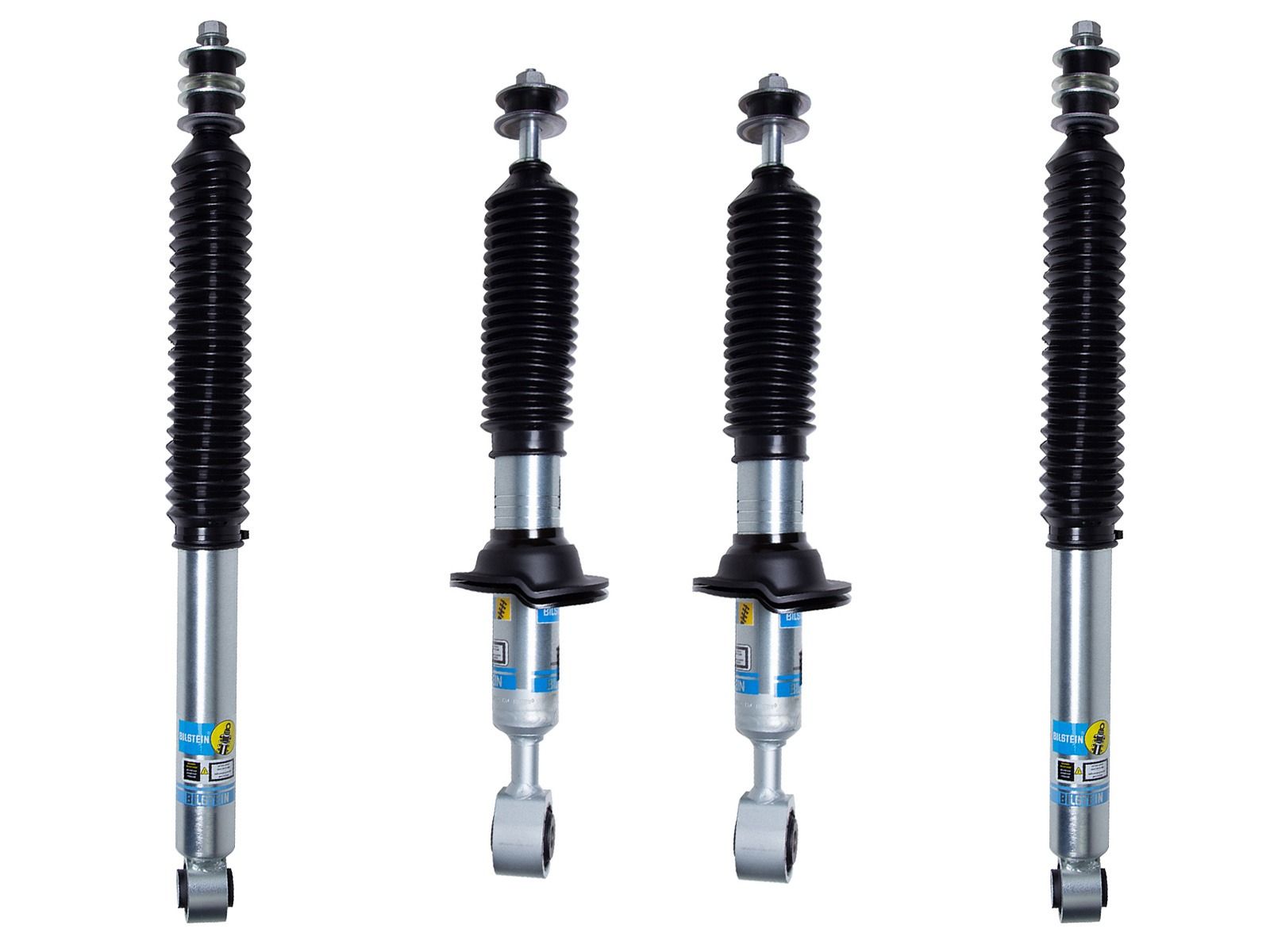

Tundra 2022-2024 Toyota 4WD & 2WD - Bilstein 5100 Series Adjustable Height Shocks (0-2.4" Front Lift / Set of 4)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers designed for the Toyota Tundra 4WD & 2WD (3rd Gen) feature multiple snap-ring grooves in the body to allow for different spring seat positions, providing 0-2.4 inches of front lift with OE springs (depending on application). These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting.  Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein Adjustable Height 5100 Series shocks are perfect for trucks and SUVs to add a small lift and oversized tires.  This kit addresses the extra demands of larger tires, and a taller stance requires more suspension performance.  Bilstein's patented digressive valving is perfect for these conditions.

This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4.

Features & Benefits

• Adjustable Front Lift Height, Multiple Positions
• Great solution to level your vehicle (superior to coil/strut spacers found in many leveling kits)
• Improved off-road performance
• Front shocks adjust from 0 to 2.4 inches (6 positions)
• Rear shocks fit with 0 to 1 inches of lift
• Mono-Tube Gas Design
• Replaces Factory Struts, Keeps Coil Springs
• Zinc Plated Finish with Clear Coat for Maximum Protection
• Complete set of 4 matching shocks
• Limited Lifetime Warranty

All Front LIft Height Settings:

• Position #1: Stock (4WD & 2WD)
• Position #2: .7 inch (4WD), .6 inch (2WD)
• Position #3: 1.3 inch (4WD), 1.1 inch (2WD)
• Position #4: 1.8 inch (4WD), 1.5 inch (2WD)
• Position #5: 2.3 inch (4WD), 2.0 inch (2WD)
• Position #6: Do not use (4WD), 2.4 inch (2WD)

Shock Specs

• Front Shock Extended Length: 20.22 inches
• Front Shock Compressed Length: 15.91 inches
• Rear Shock Extended Length: 25.06 inches
• Rear Shock Compressed Length: 16.59 inches
• Finish: Zinc Plated
• Piston: 46mm
• Body Size: 46mm ID
• Coil Springs: Not included, uses factory springs
