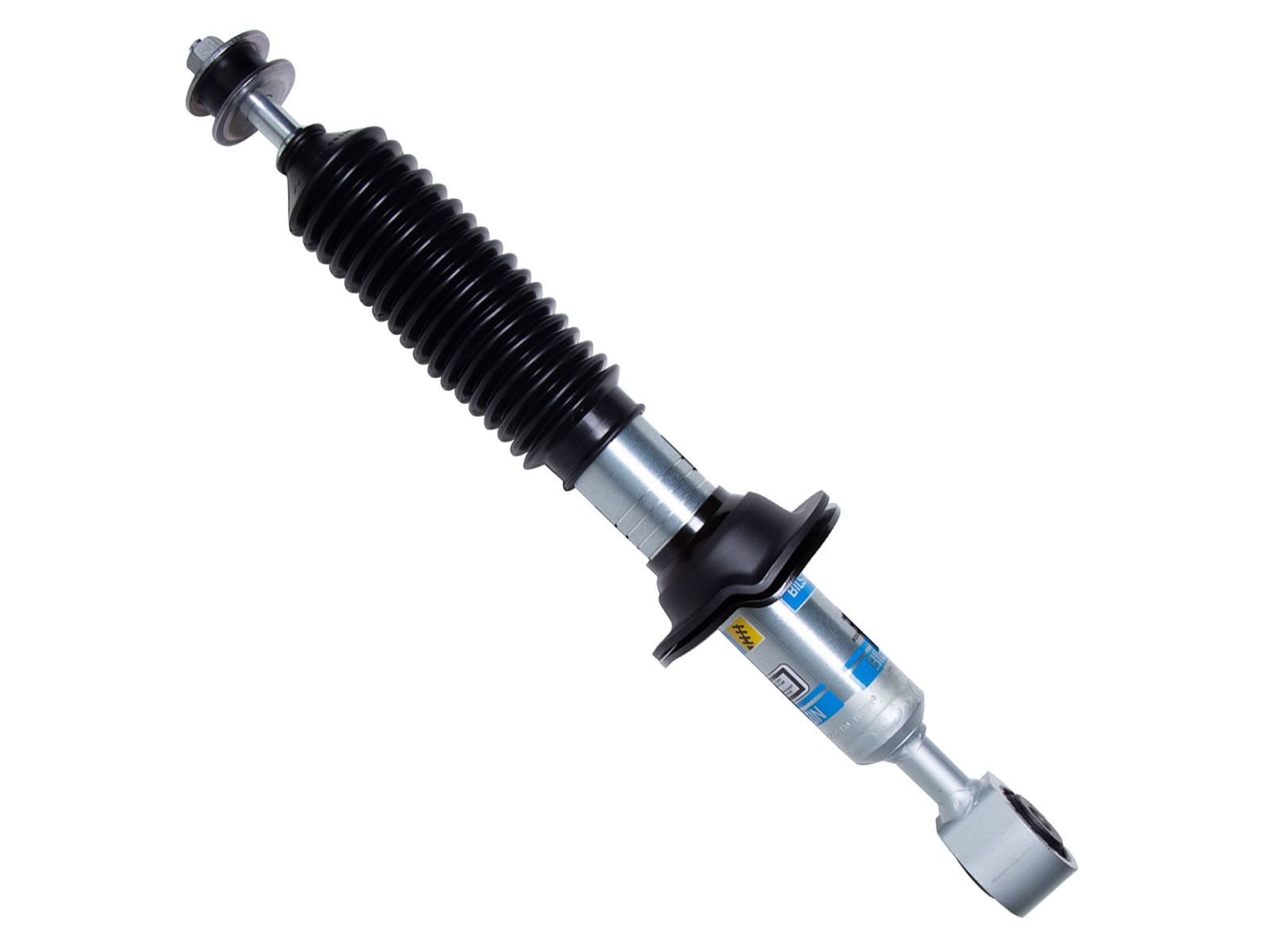

Tundra 2022-2024 Toyota 4WD & 2WD - Bilstein FRONT 5100 Series Adjustable Height Shock (0-2.4" Front Lift)

Brand: Bilstein | SKU: 24-329200
Special Price $160.00 Regular Price $223.60


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

Bilstein B8 5100 (Ride Height Adjustable) 24-329200 shock absorbers designed for the Toyota Tundra 4wd & 2wd feature multiple snap-ring grooves in the body to allow for different spring seat positions, providing 0 to 2.4 inches of front lift with OE springs (depending on application). These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting.  Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein Adjustable Height 5100 Series shocks are perfect for trucks and SUVs to add a small lift and oversized tires.  The extra demands larger tires and a taller stance require more suspension performance.  Bilstein's patented digressive valving is perfect for these conditions.

Features & Benefits

  • Adjustable Lift Height, Multiple Positions
  • Great solution to level vehicle
  • Front shocks adjust from 0 to 2.4 inches of front lift height
  • High-Pressure Mono-Tube Design
  • 46mm digressive piston with a self-adjusting deflective disc valve setting
  • Replaces Factory Struts, Keeps Coil Springs
  • Snap-ring grooves (6 total) in the body allow included spring seat to sit at multiple locations
  • Zinc Plated Finish with Clear Coat for Maximum Protection
  • Limited Lifetime Warranty

Shock Specs

  • Extended Length: 20.22 inches
  • Compressed Length: 15.91 inches
  • Finish: Zinc Plated
  • Body: Snap Ring Grooved
  • Body Diameter: 46mm

All LIft Height Settings:

  • Position #1: Stock (4WD & 2WD)
  • Position #2: .7 inch (4WD), .6 inch (2WD)
  • Position #3: 1.3 inch (4WD), 1.1 inch (2WD)
  • Position #4: 1.8 inch (4WD), 1.5 inch (2WD)
  • Position #5: 2.3 inch (4WD), 2.0 inch (2WD)
  • Position #6: Do not use (4WD), 2.4 inch (2WD)
Important Notes1. Price shown is for quantity (1) shock absorber. Quantity (2) shock absorbers are required for most applications.
2. Fits models without Adaptive Variable Suspension (AVS)
Vehicle Fitment
MakeToyota
ModelTundra
Year Fitment2024, 2023, 2022
2WD/4WD2WD, 4WD
Tech Specs
ManufacturerBilstein
Manufacturer Part Number24-329200
Item Numberbil_24-329200
MPN(UPC)651860910031
Product LineShock Absorbers
Shock SeriesBilstein 5100 Series
Front/RearFront
