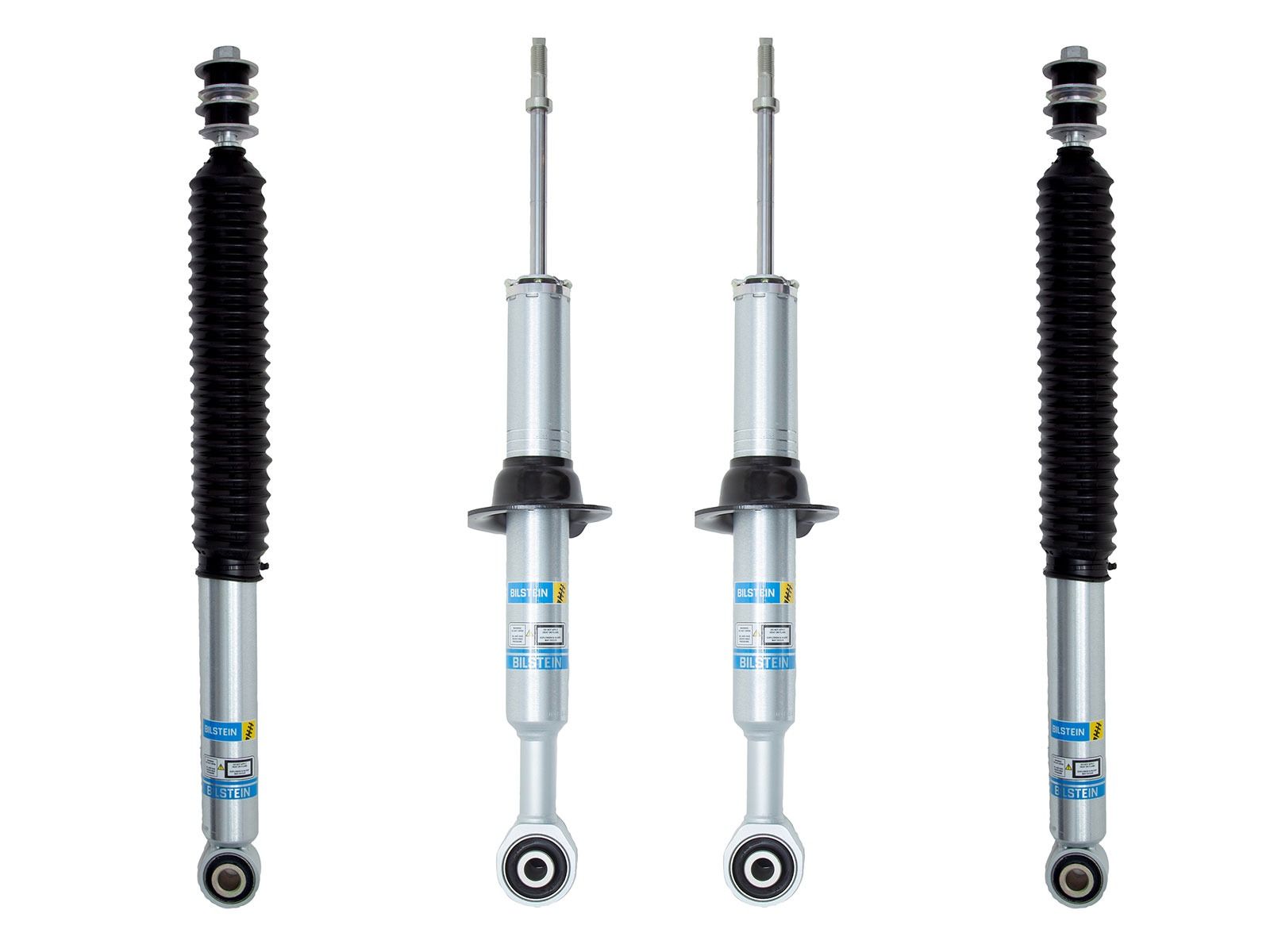

Tacoma 2024-2025 Toyota 4WD & 2WD - Bilstein 5100 Series Adjustable Height Shocks (1-2.5" Front Lift / Set of 4)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers designed for the Toyota Tacoma 4WD & 2WD (4th Gen) feature multiple snap-ring grooves in the body to allow for different spring seat positions, providing 1-2.5 inches of front lift with OE springs (depending on application). These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting.  Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein Adjustable Height 5100 Series shocks are perfect for trucks and SUVs to add a small lift and oversized tires.  This kit addresses the extra demands of larger tires, and a taller stance requires more suspension performance.  Bilstein's patented digressive valving is perfect for these conditions.

This package includes both front and rear shocks (rear are non-adjustable) for a complete set of 4.

Features & Benefits

• Adjustable Front Lift Height, Multiple Positions
• Great solution to level your vehicle (superior to coil/strut spacers found in many leveling kits)
• Improved off-road performance
• Front shocks adjust from 1 to 2.5 inches (5 positions)
• Rear shocks fit with 0 to 1.5 inches of lift
• Mono-Tube Gas Design
• Replaces Factory Struts, Keeps Coil Springs
• Zinc Plated Finish with Clear Coat for Maximum Protection
• Complete set of 4 matching shocks
• Limited Lifetime Warranty

All Front LIft Height Settings:

• Tacoma 4WD with coil spring rear suspension: 1 inch, 1.4 inch, 1.8 inch, 2.1 inch and 2.5 inch
• Tacoma RWD with coil spring rear suspension: .7 inch, 1.2 inch, 1.6 inch, 2 inch and 2.5 inch
• Tacoma RWD with leaf spring rear suspension: 1 inch, 1.5 inch, 2 inch, 2.5 inch

Shock Specs

• Front Shock Extended Length: 24.13 inches
• Front Shock Compressed Length: 19.24 inches
• Rear Shock Extended Length: 25.44 inches
• Rear Shock Compressed Length: 15.78 inches
• Finish: Zinc Plated
• Piston: 46mm
• Body Size: 46mm ID
• Coil Springs: Not included, uses factory springs
