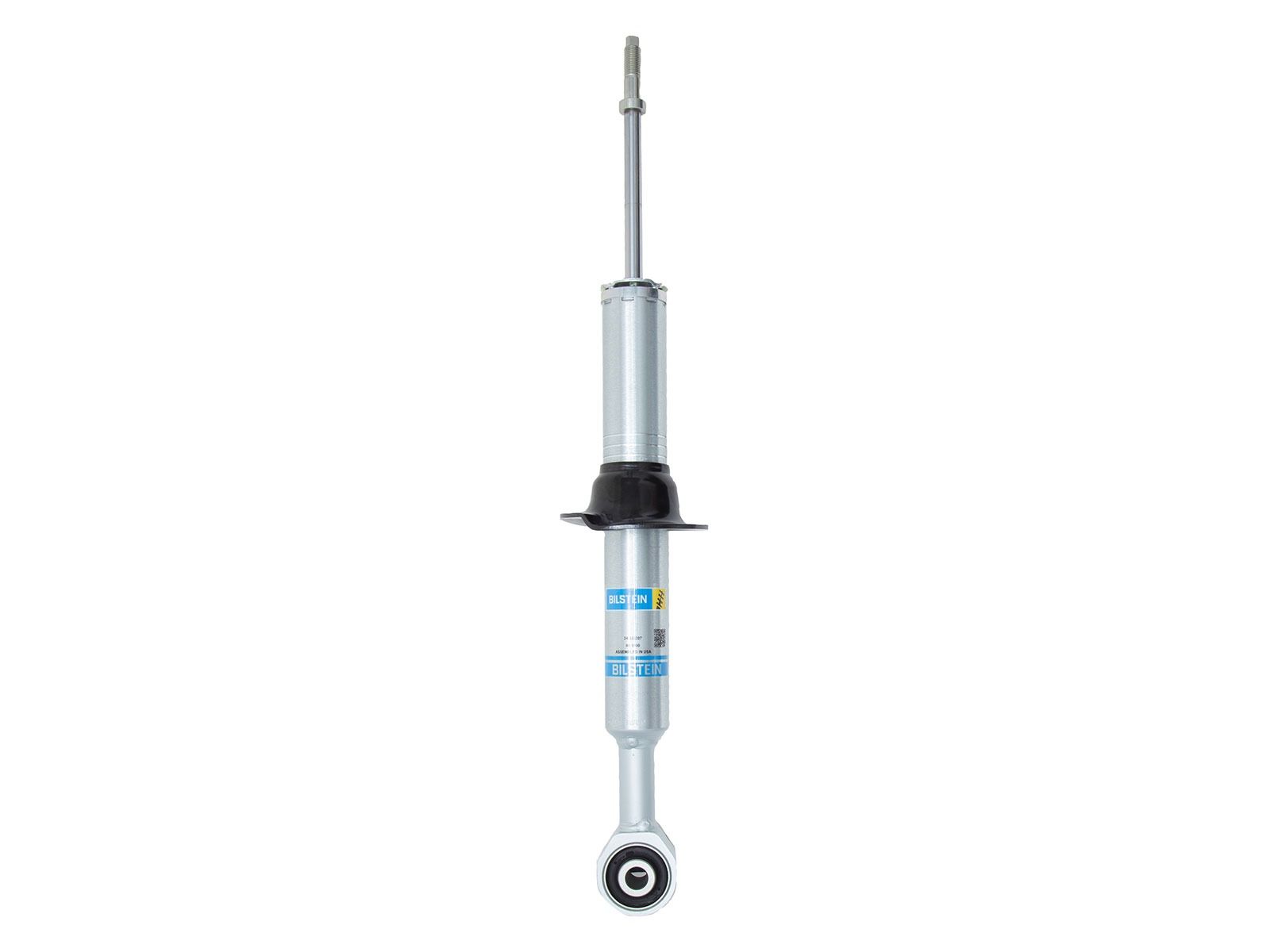

Tacoma 2024-2025 Toyota 4WD & 2WD - Bilstein FRONT 5100 Series Adjustable Height Shock (1-2.5" Front Lift)

Bilstein B8 5100 (Ride Height Adjustable) 24-333207 shock absorbers designed for the Toyota Tacoma 4WD & 2WD (4WD models with rear coil spring suspension only) feature multiple snap-ring grooves in the body to allow for different spring seat positions, providing 1 to 2.5 inches of front lift with OE springs (depending on application). These monotube shock absorbers have a 46mm digressive piston with a self-adjusting deflective disc valve setting.  Bilstein 5100 shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 shock absorber is the easiest way to level out your vehicle.

Bilstein Adjustable Height 5100 Series shocks are perfect for trucks and SUVs to add a small lift and oversized tires.  The extra demands of larger tires and a taller stance require more suspension performance.  Bilstein's patented digressive valving is perfect for these conditions.

Features & Benefits

• Adjustable Lift Height, Multiple Positions
• Great solution to level the vehicle
• Front shocks adjust from 1 to 2.5 inches of front lift height
• High-Pressure Mono-Tube Design
• 46mm digressive piston with a self-adjusting deflective disc valve setting
• Replaces Factory Struts, Keeps Coil Springs
• Snap-ring grooves (5 total) in the body allow the included spring seat to sit at multiple locations
• Zinc Plated Finish with Clear Coat for Maximum Protection
• Limited Lifetime Warranty

Shock Specs

• Extended Length: 24.13 inches
• Compressed Length: 19.24 inches
• Finish: Zinc Plated
• Body: Snap Ring Grooved
• Body Diameter: 46mm

All Lift Height Settings:

• Tacoma 4WD with coil spring rear suspension: 1 inch, 1.4 inch, 1.8 inch, 2.1 inch and 2.5 inch
• Tacoma RWD with coil spring rear suspension: .7 inch, 1.2 inch, 1.6 inch, 2 inch and 2.5 inch
• Tacoma RWD with leaf spring rear suspension: 1 inch, 1.5 inch, 2 inch, 2.5 inch
