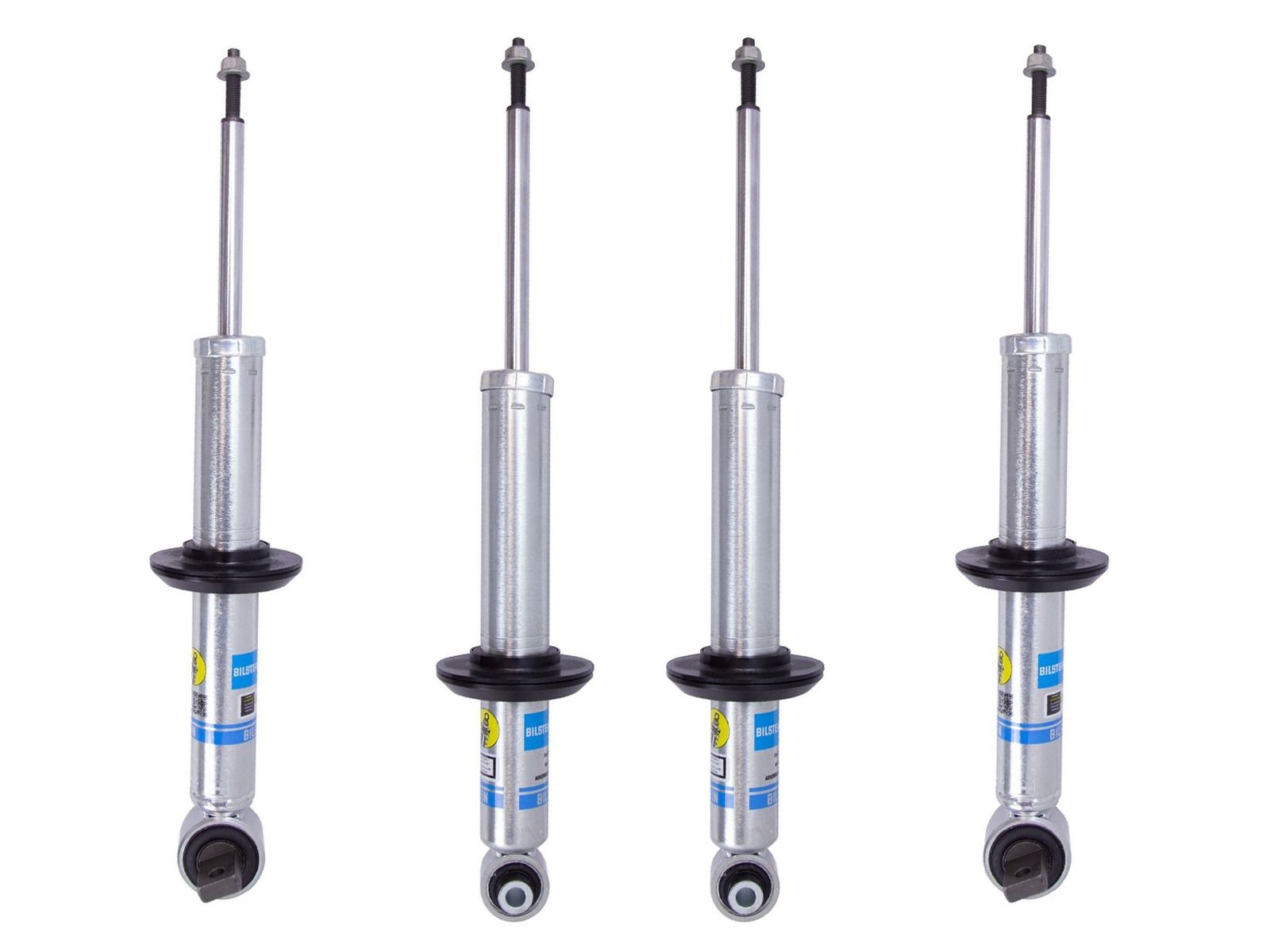

Expedition 2014-2026 Ford - Bilstein 5100 0-1.6" Front & Rear Adjustable Height Lift Shocks (Set of 4)

Upgrade the ride quality, handling, and stance of your 2014 and up Ford Expedition with this complete set of Bilstein B8 5100 Ride Height Adjustable Shocks. This package includes Bilstein 24-336901 front shocks and 24-336918 rear shocks, providing a complete suspension upgrade for both 2WD and 4WD models.

The Bilstein B8 5100 front and rear shocks feature multiple snap-ring grooves that allow the spring seats to be repositioned, providing up to 1.6 inches of front lift (up to 1 inch on 2014–2017 models) and up to 1.5 inches of rear lift using your factory coil springs (includes new spring seats). This makes them an excellent solution for leveling / lifted your Expedition, improving ground clearance, or compensating for additional weight without replacing the factory springs.

Built around Bilstein's proven 46mm high-pressure monotube design, these shocks utilize patented digressive valving that automatically adapts to changing road conditions. The result is improved ride control, reduced body roll, better handling, and increased stability, whether you're commuting, towing, or exploring off-road.

Unlike factory shocks, Bilstein 5100s are engineered to handle the additional demands of larger tires, mild lift heights, and heavier loads while maintaining excellent ride comfort. Their zinc-plated body with a durable clear coat finish provides outstanding corrosion resistance for long service life in all climates.

This complete set includes both front and rear Bilstein 5100 adjustable shocks, making it one of the easiest and most effective ways to improve the appearance, capability, and performance of your Ford Expedition.

Features & Benefits

• Fits 2014–up Ford Expedition 2WD & 4WD
• Complete set of (4) Bilstein B8 5100 shocks
• Up to 1.6" of front lift (1" on 2014–2017 models)
• Up to 1.5" of rear lift
• Multiple snap-ring positions allow adjustable ride height
• Reuses factory coil springs
• Ideal for leveling or mildly lifting your Expedition
• 46mm high-pressure monotube construction
• Bilstein patented digressive valving improves ride and handling
• New spring seats are included
• Increases suspension control and wheel travel
• Zinc-plated body with clear coat for corrosion resistance
• Excellent choice for stock or larger tire applications
• Limited Lifetime Warranty

Front Lift Heights

• Circlip #1 (2014-2017 models): not recommended
• Circlip #2 (2014-2017 models): stock ride height
• Circlip #3 (2014-2017 models): 1" front lift
• Circlip #1 (2018-up models): stock ride height
• Circlip #2 (2018-up models): .8" front lift
• Circlip #3 (2018-up models): 1.6" front lift

Rear Lift Heights

• Circlip #1: stock height
• Circlip #2: 0.4 inches
• Circlip #3: 0.7 inches
• Circlip #4: 1.1 inches
• Circlip #5: 1.5 inches

Shock Specs

• Extended Length (front): 20.94 inches
• Compressed Length (rear): 16.10 inches
• Extended Length (front): 20.95 inches
• Compressed Length (rear): 15.0 inches
• Spring Seats Included: YES
