Expedition 2014-2026 Ford 4wd & 2WD - Bilstein Front B8 5100 Ride Height Adjustable Shock Absorber (0-1.6" Front lift)

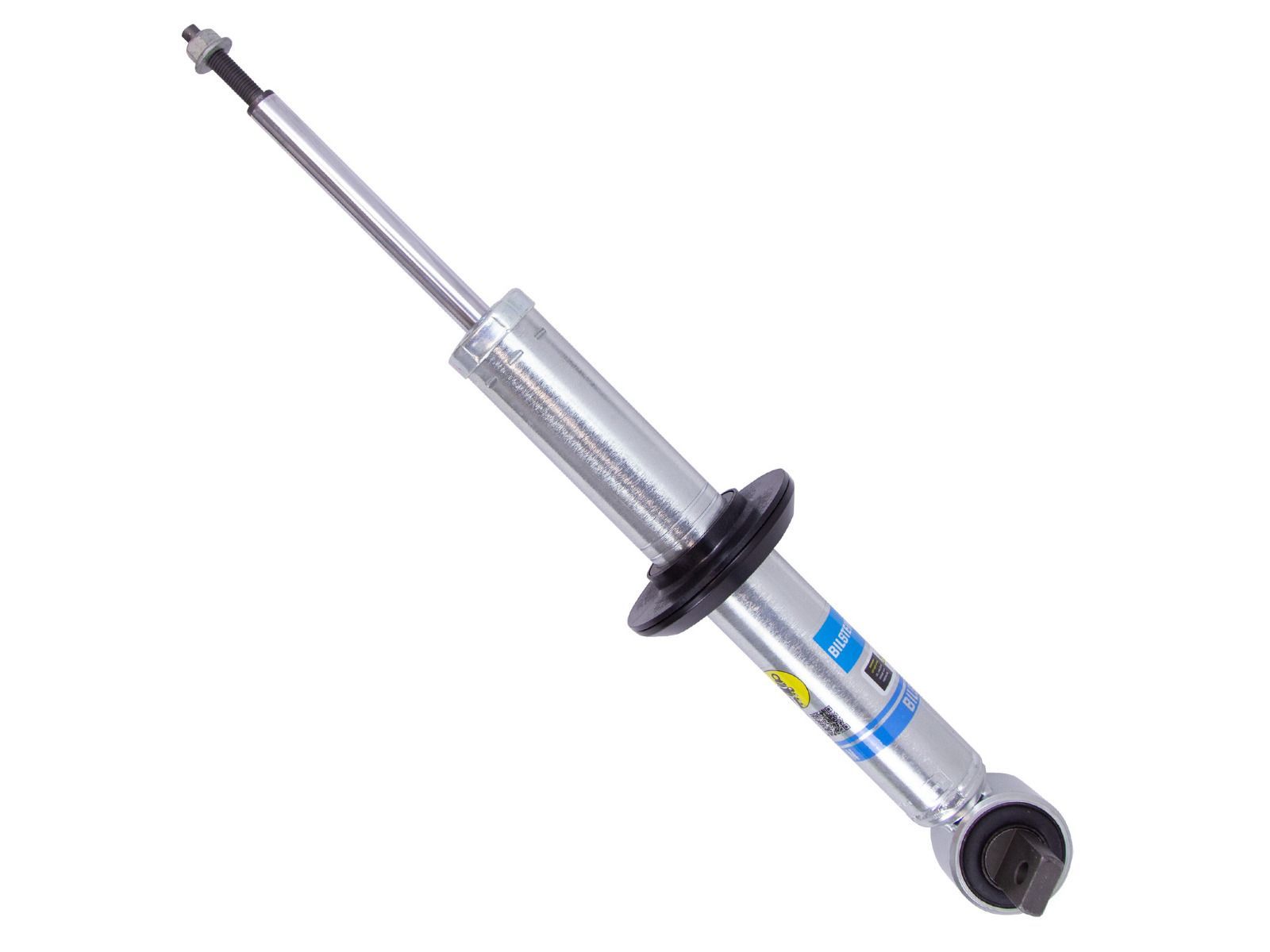

Bilstein's 24-336901 B8 5100 Ride Height Adjustable shock absorbers offer a simple, effective solution for leveling Ford Expeditions equipped with front OE coilover-style suspension. Designed with multiple snap-ring grooves, these shocks allow the spring seat to be positioned at various heights, providing up to 0–1.6 inches of front lift using the factory coil springs (application-dependent). This gives you the flexibility to fine-tune your vehicle’s stance without additional components.

Built around Bilstein’s proven monotube design, each shock features a 46mm digressive piston with self-adjusting deflective disc valving for consistent performance across varying terrain and driving conditions. The result is improved handling, increased wheel travel, and a more controlled, confident ride both on and off the road. As one of the easiest and most reliable ways to achieve a leveled stance, the Bilstein B8 5100 Ride Height Adjustable shock absorber delivers the lift capability, durability, and performance enhancement enthusiasts expect from the Bilstein name.

Top Features and Benefits

• Provides 1.6-inches of front lift height for better ground clearance
• Significantly improves ride quality, handling, and comfort
• Uses OEM Springs
• Simple direct-fit installation
• Vehicle-specific tuned
• Velocity-sensitive digressive piston
• Allows for alignment at factory specs to avoid abnormal tire wear
• Reacts to changing road conditions
• Limited lifetime warranty

Need all Four Shocks?

Replacing shocks at both ends of your Expedition? This Bilstein 24-336901 front shock is also available as part of a complete package with two front and two matching rear B8 5100 shocks. The complete set provides adjustable ride height at both ends while improving overall ride control, handling, and stability. View the Bilstein 5100 shock set of 4 for the 2014–up Ford Expedition.
