Ram 2500 / Ram 3500 2003-2009 Dodge 4WD (w/2.5-3" Suspension Lift) Billet High Clearnace Extended Control Arms by Carli Suspension Brand: Carli Suspension | SKU: CS-DBCA-03
$1360
- +
1360

Ram 2500 / Ram 3500 2003-2009 Dodge 4WD (w/2.5-3" Suspension Lift) Billet High Clearnace Extended Control Arms by Carli Suspension

Brand: Carli Suspension | SKU: CS-DBCA-03
$1,360.00

Ram 2500 / Ram 3500 2003-2009 Dodge 4WD (w/2.5-3" Suspension Lift) Billet High Clearnace Extended Control Arms by Carli Suspension

Brand: Carli Suspension | SKU: CS-DBCA-03
$1,360.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

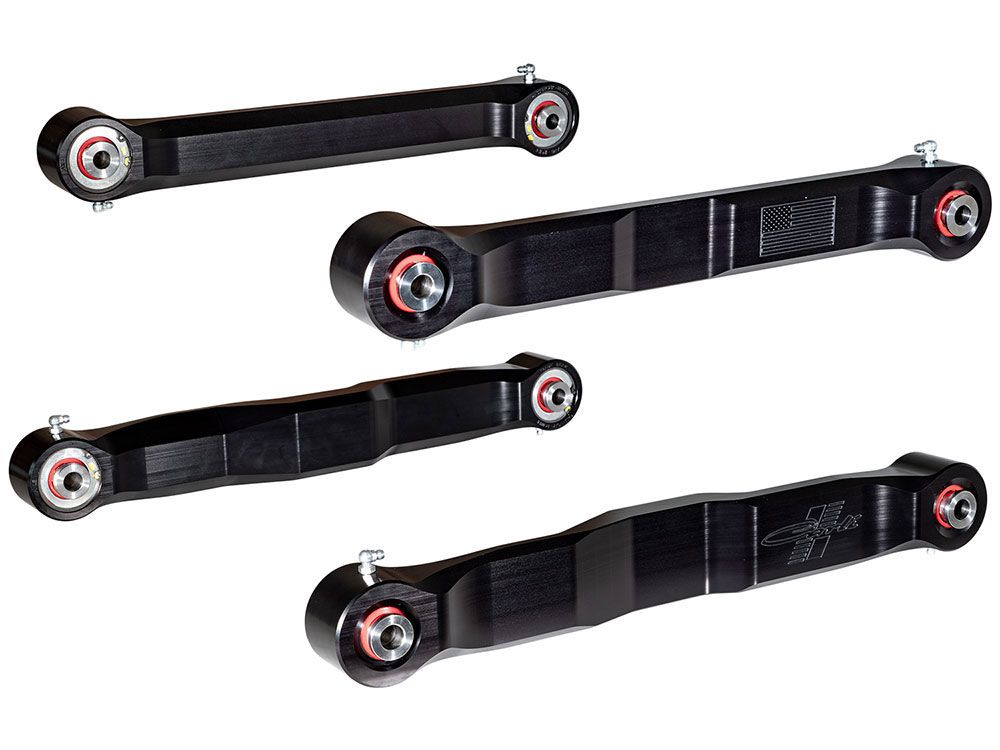

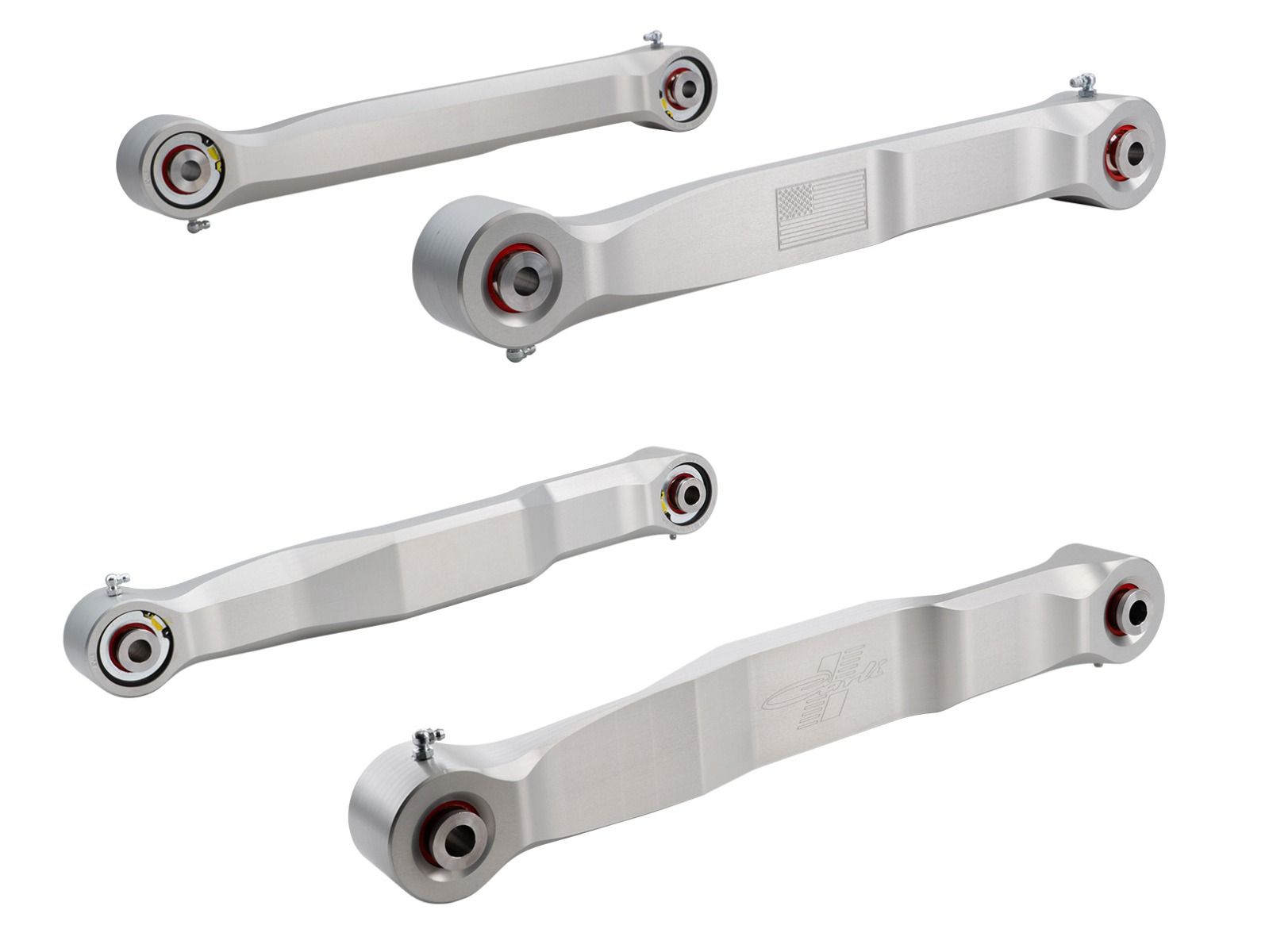

Carli Suspension's CS-DBCA-03 High Clearance Extended Control Arm Kit for the Dodge Ram 2500 are designed for models lifted 3 inches in the front to re-center the front axle while maximizing tire clearance.

The 1994-2013 Ram 2500/3500 features a 5-Link front suspension with upper and lower control arms that stabilize the axle's fore/aft position, while the track bar reduces lateral movement. Raising the front end of a straight axle truck pushes the axle away from the frame at ride height. However, this can lead to an off-center front axle unless the appropriate linkages are addressed. Carli designed systems provide 2.5"-3" of front lift. A 3-inch lift shifts the axle 3/4 inch toward the driver’s side and 1/2 inch back toward the cab. While factory control arms and track bars work, Carli recommends an adjustable track bar for improved axle positioning and extended control arms for better axle centering.

Carli Suspension precision-machine these arms from 6061 Billet blocks, ensuring tire clearance, strength, and a sleek design. Their unique feature is the focus on joint quality. In a market dominated by hat-bushing arms, their spherical bearing arms excel. The Ram's non-linear axle movement challenges standard 3-piece hat bushings, especially with lateral shifts from the track-bar design. Carli's solution is a spherical joint design that accommodates vertical, fore/aft, and lateral movement. The core is our in-house machined 17-4 Stainless ball center, with proprietary bushings and joint washers, secured with a snap-ring and a zerk fitting for easy maintenance. They machined ball centers from 17-4 Stainless bar-stock for strength and resistance. These stood up to stresses that caused fractures in Currie joints under Ram's torque specs. Also increased mating surface size for better contact with control arm frame and axle mounts, surpassing Currie joints by 0.050". Partnering with Energy Suspension, they developed innovative RED bushings with grease channels for easy lubrication and improved joint articulation, distinguishing them from older interlocked designs.

Features & Benefits:

  • Re-centers front axle on 3" suspension kits
  • Joint assembly machined with a 17-4 Stainless ball center
  • Includes Energy Suspension bushings
  • 6061 Billet Aluminum Construction
  • Arms are designed for maxiumum tire clearance
  • Allows for 37 inch diameter tires (9" wide wheel, 5.75" BS) on 3 inch lift kits
  • Includes 4 Arms, 2 upper, 2 lower
  • Zerk fittings for ease of servicing
  • Serviceable, Vibration damping joints with stainless ball centers
  • Carli provides a Limited Lifetime Warranty
Important Notes
  • Prior to installation, carefully inspect the vehicles steering and drive train components. Be sure to check ball joints, tie rod ends, pan-rod bar, and control arm bushings. Everything must be tight and in good working condition.
  • Vehicle Fitment
    MakeDodge
    ModelRam 2500, Ram 3500
    Year Fitment2009, 2008, 2007, 2006, 2005, 2004, 2003
    2WD/4WD4WD
    Tech Specs
    ManufacturerCarli Suspension
    Manufacturer Part Number CS-DBCA-03
    Item Numbercar_cs-dbca-03
    MPN(UPC)883584146483
    Product LineControl Arms
