2.5" 2014-2018 Dodge Ram 2500 4wd (w/Diesel Engine & Factory Rear Air Suspension) Pintop Leveling System by Carli Suspension Brand: Carli Suspension | SKU: CS-DPT25-LVL-1419-D-AR
$4715
- +
4715

2.5" 2014-2018 Dodge Ram 2500 4wd (w/Diesel Engine & Factory Rear Air Suspension) Pintop Leveling System by Carli Suspension

Brand: Carli Suspension | SKU: CS-DPT25-LVL-1419-D-AR
$4,715.00

2.5" 2014-2018 Dodge Ram 2500 4wd (w/Diesel Engine & Factory Rear Air Suspension) Pintop Leveling System by Carli Suspension

Brand: Carli Suspension | SKU: CS-DPT25-LVL-1419-D-AR
$4,715.00


free shipping truck  FREE SHIPPING !!
on orders +$149, exclusions apply



View all Options Available for this Kit

- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-DPT25-LVL-1419-D-AR Pintop 2.5 inch front leveling system for the Dodge Ram 2500 4wd diesel models with factory rear air suspension is the ultimate performance leveling kit to get your truck sitting level with the rear. Designed to greatly improve ride quality in on-road conditions and while supremely enhancing off-road performance with the use of custom tuned King 2.5" Remote Reservoir Shocks.

Featured in this leveling system are 2.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are King 2.5" Remote Reservoir Shocks. These custom Carli King shocks use a unique 17-4 stainless shaft that is machined and polished. Meaning there is no finish or coating to wear off. The 2.5 inch diameter body houses a custom piston designed for heavy-duty truck models. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

In the rear Carli uses a 1 inch spacer for the factory air bags. The 2 piece design allows for a seamless install. Fabricated rear bump stop spacers are included to drop the factory stops 1 inch. Also included are extended machined sensor links.

Features & Benefits:

  • 2.5 inch front lift / 1 inch rear lift
  • Ultimate Performance Leveling Kit on the market today
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • King 2.5 Remote Resi Front and Rear Shocks - 2.5" diameter aluminum body with remote reservoir
  • Remote reservoir increases oil capacity for better heat management and better overall performance
  • Designed to improve ride quality for on-road, highway, towing/hauling and slow to high speed off-road
  • Adjustable Track Bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
  • Rear 1 inch steel air bag spacers use 2-piece design for simple install
  • Front Travel = 9" / Rear Travel = 9"
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 35 inch x 12.5 tires

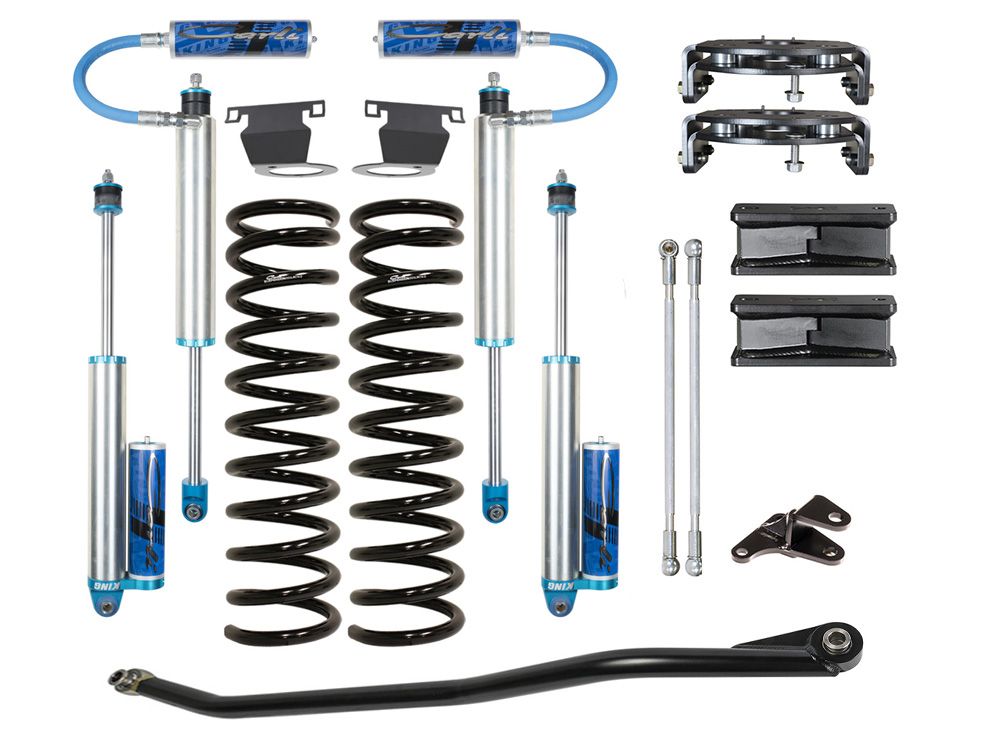

Components Included:

  • CS-DLRC-14-LVL-D: Front Coil Springs
  • CS-DPT25SPKG-LVL-14-D-AR: Carli Tuned King 2.5 Remote Resi Front & Rear Shocks, with Resi Mounts and Brakeline Tabs
  • CS-DATB-1419: Adjustable Track Bar
  • CS-DAR-14-LVL-BLOCK: Factory Air Bag Spacer
  • CS-DRBD-1.875: Rear Bump Stop Spacer
  • CS-DAR-14-LVL-LINK: Extended Rear Senor Link

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Important Notes1. Works with factory rear air suspension only.
2. Fits with diesel engine only

Available Options

Front Torsion Sway Bar
Ram 2500 2014-2024 Dodge 4WD (w/2.5-4" of Front Lift) Torsion Sway Bar by Carli Suspension

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
Read More

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
$835
Low-Mount Steering Stabilizer
Ram 2500 2014-2024 Dodge 4WD Low Mount Steering Stabilizer by Carli Suspension

This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.

  • Direct bolt-in replacement
  • Corrects left tire pull, adjustable
Read More

This bolt-on replacement for the factory stabilizer is adjustable ranging from 70 to 200 psi, allowing you to achieve a neutral steering feel at 70 psi or counter the natural left-hand pull often associated with tires like Nitto Trail Grapplers at 200 psi. For those seeking the pinnacle of steering control, consider pairing it with the Carli High Mount for the ultimate dual, opposing steering stabilizer setup that offers infinite adjust-ability.

  • Direct bolt-in replacement
  • Corrects left tire pull, adjustable
$340
High-Mount Steering Stabilizer
Ram 2500 2014-2018 Dodge 4WD High Mount Steering Stabilizer by Carli Suspension

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.

  • Simple, Bolt-in Installation
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Please note that this is not a primary stabilizer and must be used in conjunction with either a Carli or OEM lower stabilizer in the factory location for optimal performance.

  • Simple, Bolt-in Installation
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
$525
Radius Arms
Ram 2500 2014-2024 Dodge 4WD (w/2.5" lift) Fabricated Radius Arm System by Carli Suspension

These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.

  • Massive Strength Upgrade vs. Stock Arm
  • Improved ride quality and control
  • Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
  • 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
Read More

These heavy duty radius arms are a huge strength improvement over factory arm. Featuring 17-4 Stainless Spherical Joints that eliminates the factory bushings that have the kinetic “kick” as they wind up with energy.

  • Massive Strength Upgrade vs. Stock Arm
  • Improved ride quality and control
  • Internal X-Bracing & Serviceable 17-4 Stainless Spherical Joints
  • 12" Quad Wrap Limit Straps, For 3.25" Lift Systems
$1685
Radius Arm Drop Brackets
Ram 2500 2014-2018 Dodge 4WD (w/2.5-4" of Lift) Radius Arm Drop Brackets by Carli Suspension

The Carli Leveling Systems do not come with radius arm drop brackets because the 2.5" lift height allows for proper caster adjustment using the factory caster adjustment. However, incorporating these Radius Arm Drop Brackets will lower the pivot point of the arms to accommodate the lift height. This action opens up the full range of caster adjustment and rectifies spring pressures, preventing any bowing of the coil spring. While not mandatory, it is strongly recommended to include these brackets for an optimal suspension setup.

  • Maintains critical geometries with 2.5-4" Front Lift
  • Heavy-Duty Construction
  • Bolt-On installation, no welding required
Read More

The Carli Leveling Systems do not come with radius arm drop brackets because the 2.5" lift height allows for proper caster adjustment using the factory caster adjustment. However, incorporating these Radius Arm Drop Brackets will lower the pivot point of the arms to accommodate the lift height. This action opens up the full range of caster adjustment and rectifies spring pressures, preventing any bowing of the coil spring. While not mandatory, it is strongly recommended to include these brackets for an optimal suspension setup.

  • Maintains critical geometries with 2.5-4" Front Lift
  • Heavy-Duty Construction
  • Bolt-On installation, no welding required
$670
Front Differential Guard
Ram 2500 2014-2024 Dodge 4WD Front Differential Guard by Carli Suspension

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
Read More

Protect your trucks front differential when on your off-road adventures. Made of 1/4 inch steel and quickly bolt-on in minutes.

  • Protection for your Ring-Gear
  • Bolts On In Minutes
  • 1/4" Wall Cold-Rolled Steel Construction
  • Grade 8 Hardware
$225
Heavy Duty Ball Joints
Ram 2500 2014-2024 Dodge 4WD Extreme Duty Upper & Lower Ball Joints by Carli Suspension

These ultra heavy duty ball joints could be last you will need to purchase for your truck. They are that good.

  • Set of Upper and Lower Ball Joints
  • LIFETIME Advanced-Replacement Warranty
  • Copper Plated, Carburized and Dry-Lubed
  • Includes a tube of Redline CV2 Grease
Read More

These ultra heavy duty ball joints could be last you will need to purchase for your truck. They are that good.

  • Set of Upper and Lower Ball Joints
  • LIFETIME Advanced-Replacement Warranty
  • Copper Plated, Carburized and Dry-Lubed
  • Includes a tube of Redline CV2 Grease
$940
Vehicle Fitment
MakeDodge
ModelRam 2500
Year Fitment2018, 2017, 2016, 2015, 2014
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-DPT25-LVL-1419-D-AR
Item Numbercar_cs-dpt25-lvl-1419-d-ar
MPN(UPC)883584151326
Product LineLeveling Kits
Lift Height2.5 inch
