4.5" 2017-2019 Ford F250/F350 4wd (w/Diesel Engine) Backcountry System by Carli Suspension Brand: Carli Suspension | SKU: CS-F45-BC-CS-17
$3495
- +
3495

4.5" 2017-2019 Ford F250/F350 4wd (w/Diesel Engine) Backcountry System by Carli Suspension

Brand: Carli Suspension | SKU: CS-F45-BC-CS-17
From $3,495.00

4.5" 2017-2019 Ford F250/F350 4wd (w/Diesel Engine) Backcountry System by Carli Suspension

Brand: Carli Suspension | SKU: CS-F45-BC-CS-17
From $3,495.00
- +
Expert Image
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Top Rated service
Product Description
More Information

This Carli Suspension CS-F45-BC-CS-17 4.5 inch Backcountry lift system for the Ford F250 / F350 4wd diesel models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 13.5 inch tires.  It is perfect for Ford owners wanting the best ride quality during on-road, highway, towing/hauling along with slow to mid speed off road use.

Featured in this lift kit system are 4.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 Remote Reservoir Shock Absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. Remote reservoirs will increase oil capacity, giving better heat dispersion and performance in extreme conditions. 5/8 inch diameter hardened steel chrome plated shafts are also used.

Radius arm drop brackets lower the factory radius arms which rotates the axle back to factory angles to maintain proper caster and geometry. Made from 1/4 inch cold rolled steel these heavy duty brackets will provide a solid link between the arms and chassis.

To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank.

Completing the front-end enhancements, this package incorporates Caster Shims to enhance steering responsiveness. Additionally, a custom High-Clearance Bump Stop Drop is provided to ensure the springs maintain proper clearance from the factory bump stop.

In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however for a level ride you will want to choose between the Carli progressive rate 3" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 3" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec.

Features & Benefits:

  • 4.5 inch front lift / 0 to 3 inch rear lift (optional rear lift)
  • Premium lift kit optimized for all conditions: on-road road quality, towing and slow to medium speed off-roading
  • Front linear rate coil springs - with reduced linear rate to improve ride quality
  • Carli SPEC 2.0 Remote Resi Front and Rear Shocks - 2" diameter aluminum body with remote reservoir
  • Shocks are fully serviceable and rebuild-able
  • Designed to improve ride quality and suspension performance
  • Radius arm drop brackets keep proper front caster
  • Optional Rear Add-a-Pack - Replaces factory overload springs, transforming the factory leaf spring pack into a progressive system (F250 only)
  • Optional Rear Progressive Leaf Springs - Provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec
  • Adjustable track bar - keeps front axle centered and dampens vibrations. Uses FK heim joint with huge 1" shank
  • Stainless steel braided extended front brake hoses
  • Front Travel = 11.3" / Rear Travel = 13.8"
  • Lifetime warranty on components, 1 year warranty on shocks
  • Allows use of up to 37 inch x 12.5

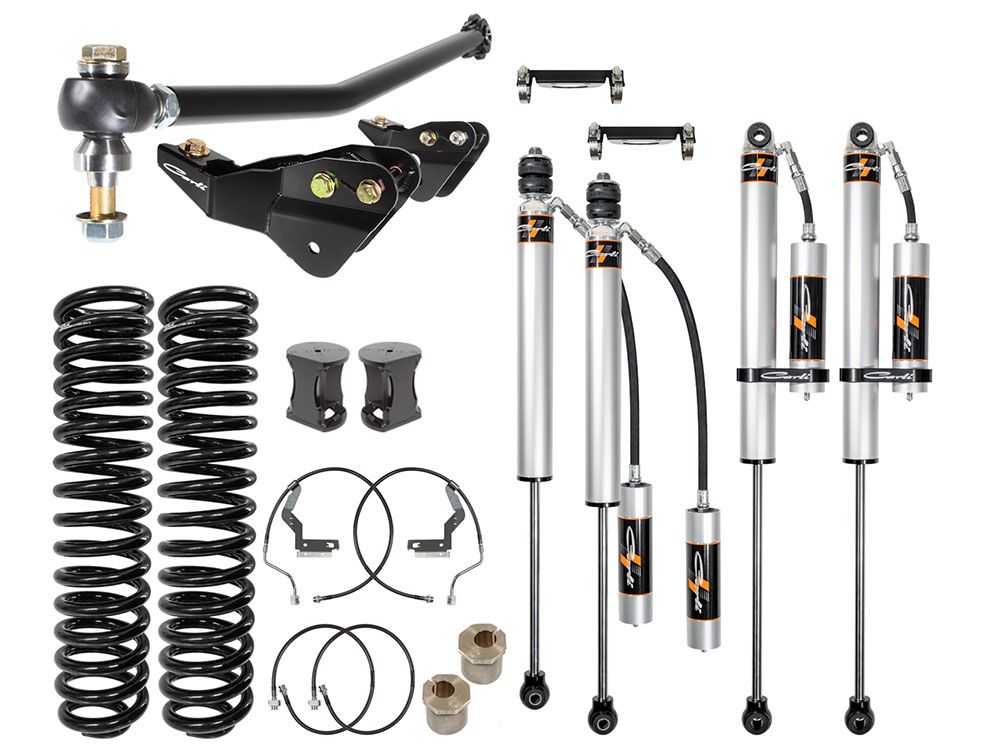

Components Included:

  • CS-FMRC-05: Front Coil Springs
  • CS-F45SPKG-CS20RR-A: Carli SPEC 2.0 Remote Resi Shocks, Front and Rear, Resi Mounts
  • CS-FATB-17: Adjustable Track Bar
  • CS-FORDBBL-45-17: Brake Lines
  • CS-FCASTERSHIM-45: 1 degree Caster Shims
  • CS-FBDF-45-17: High Clearance Front Bump Stops
  • CS-FRAD-17: Radius Arm Drop Brackets

Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below.

Required Sway Bar Selection - While Carli does not include a front sway bar correction in this kit it is required to install this lift kit properly. The drop bracket kit works great as a more economical solution. However, for truck owners wanting a HUGE improvement in ride quality the Carli Torsion Sway Bar is your solution and is an amazing upgrade. Designed to allow the front suspension to move more freely without giving up control.

Important Notes1. Note: While this kit can purchased without a rear lift method this system will not achieve a proper rear high stance without the installation of the add-a-pack or progressive leaf springs; it will sit slightly rear low with no rear option added. Add-a-packs only recommended for F250 models. Add-a-Packs are NOT recommended for the F350 (or any F250 equipped with the High Capacity Tow or Tremor Package)
2. Recommend 17”-18” wheels, no more than 9” wide with 5” of backspacing with 37 inch diameter tires.
3. It is not advisable to use factory wheels with oversized tires, as this can lead to issues such as rubbing against the radius arm, sway bar, and, most importantly, the brake lines.

Available Options

Front Sway Bar (required)
1 of 2 options
F250 / F350 2017-2023 Ford 4WD (w/4.5-5.5" Front Lift) Sway Bar Drop Bracket w/Extended End Links by Carli Suspension

Carli Suspension's Sway Bar Drop Kit w/Extended End Links for the Ford F250 / F350 is designed to to correct sway bar geometry on 5.5" Carli Suspension Systems. Included are fabricated drop brackets and a set of Extended Sway Bar End Links! These premium stainless steel end links are meticulously crafted from top-tier 17-4 stainless material, ensuring their durability for a lifetime of use. Each individual end link undergoes a meticulous five-stage machining procedure. These end links are capped with a robust 1/2 inch FK nylon lined bearing, a substantial upgrade from the factory's less sturdy ball and socket design.

  • Intended for vehicles with 5.5" Carli Systems
  • Combines End Links and Drop Brackets for the perfect sway bar position
  • Greaseable and fully rebuildable links
  • Provides excellent articulation
  • Links are crafted out of top tier 17-4 stainless material
Read More

Carli Suspension's Sway Bar Drop Kit w/Extended End Links for the Ford F250 / F350 is designed to to correct sway bar geometry on 5.5" Carli Suspension Systems. Included are fabricated drop brackets and a set of Extended Sway Bar End Links! These premium stainless steel end links are meticulously crafted from top-tier 17-4 stainless material, ensuring their durability for a lifetime of use. Each individual end link undergoes a meticulous five-stage machining procedure. These end links are capped with a robust 1/2 inch FK nylon lined bearing, a substantial upgrade from the factory's less sturdy ball and socket design.

  • Intended for vehicles with 5.5" Carli Systems
  • Combines End Links and Drop Brackets for the perfect sway bar position
  • Greaseable and fully rebuildable links
  • Provides excellent articulation
  • Links are crafted out of top tier 17-4 stainless material
$650
2 of 2 options
F250 / F350 2017-2023 Ford 4WD (w/4.5-5.5" of Front Lift) Torsion Sway Bar by Carli Suspension

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
Read More

For optimal ride quality, the Torsion Sway Bar is a great choice. This enhanced sway bar effectively reduces the front sway bar's spring rate, resulting in a ride experience akin to independent suspension.

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
$1450
Leaf Spring Shackle
F250 / F350 Super Duty 2005-2023 Ford 4WD Fabricated Rear Leaf Spring Shackle Kit by Carli Suspension

Carli Suspension's Fabricated Leaf Spring Shackle kit is built from 1/4 inch steel construction and are greaseable and rebuildable. In contrast to the factory vulcanized bushings (which can significant portion of the rough ride experienced in Rams), the Carli shackle bushing assembly utilizes more bushing material and a thinner sleeve to prioritize ride damping. Moreover, the bushings are serviceable. You can droop the rear end and grease them through the protected zerk fitting. These heavy duty Carli shackles are a cost-effective method to improve the ride on the rear end of your truck, and works wonders by offering both serviceability and rebuildability. It is a worthwhile upgrade for your truck, even if you have factory leaf springs.

  • Carli utilize superior bushings over OEM
  • Greaseable and Rebuildable
  • Far better ride than factory shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
  • Carli provides a Limited Lifetime Warranty



Read More

Carli Suspension's Fabricated Leaf Spring Shackle kit is built from 1/4 inch steel construction and are greaseable and rebuildable. In contrast to the factory vulcanized bushings (which can significant portion of the rough ride experienced in Rams), the Carli shackle bushing assembly utilizes more bushing material and a thinner sleeve to prioritize ride damping. Moreover, the bushings are serviceable. You can droop the rear end and grease them through the protected zerk fitting. These heavy duty Carli shackles are a cost-effective method to improve the ride on the rear end of your truck, and works wonders by offering both serviceability and rebuildability. It is a worthwhile upgrade for your truck, even if you have factory leaf springs.

  • Carli utilize superior bushings over OEM
  • Greaseable and Rebuildable
  • Far better ride than factory shackle
  • 1/4" Steel Construction
  • Fits Factory and Carli Springs
  • Carli provides a Limited Lifetime Warranty



$265
2 Degree Pinion Shim
F250 / F350 2005-2023 Ford 4WD 2 Degree Shim (3" Wide) by Carli Suspension

Carli Suspension CS-FPSKIT-3X2, a high quality Pinion and Shim Kit is designed to fix driveline vibration found in the 05-23 Ford F250 / F350's. The recommended pinion angle for standard applications falls within the 1°-3° range, a guideline we have adhered to consistently. However, Carli encountered several instances where customers reported driveline vibrations occurring at approximately 70mph when power was applied to the rear driveline. Surprisingly, all of these customers provided measurements within the specified 1°-3° range.

  • 2 Degree Pinion Shim Kit
  • Includes New Center Pin
  • Fixes driveline vibrations
Read More

Carli Suspension CS-FPSKIT-3X2, a high quality Pinion and Shim Kit is designed to fix driveline vibration found in the 05-23 Ford F250 / F350's. The recommended pinion angle for standard applications falls within the 1°-3° range, a guideline we have adhered to consistently. However, Carli encountered several instances where customers reported driveline vibrations occurring at approximately 70mph when power was applied to the rear driveline. Surprisingly, all of these customers provided measurements within the specified 1°-3° range.

  • 2 Degree Pinion Shim Kit
  • Includes New Center Pin
  • Fixes driveline vibrations
$80
Long Travel Air Bags
1 of 3 options
F250 / F350 2017-2022 Ford 4WD (w/2-3" rear lift & 3.5" rear axle) Long Travel Air Spring System by Carli Suspension

The Carli Suspension CS-FLTB-17-35 Long Travel Air Bag System for the Ford F250 / F350 are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.

  • Restores factory payload to Carli full progressive springs
  • Designed for 3.5" Diameter Axles
  • Works with Carli 4.5 inch and 5.5 inch lift systems (2 to 3 inches or rear lift)
  • Adjustable rear loaded height, 2000lb capacity per bag at 100psi
  • Includes 1/4" Airline, fittings and Schrader valves
  • Supports up to 12" of travel
  • Works on both diesel and gas engines
  • Carli provides a Limited Lifetime Warranty
Read More

The Carli Suspension CS-FLTB-17-35 Long Travel Air Bag System for the Ford F250 / F350 are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.

  • Restores factory payload to Carli full progressive springs
  • Designed for 3.5" Diameter Axles
  • Works with Carli 4.5 inch and 5.5 inch lift systems (2 to 3 inches or rear lift)
  • Adjustable rear loaded height, 2000lb capacity per bag at 100psi
  • Includes 1/4" Airline, fittings and Schrader valves
  • Supports up to 12" of travel
  • Works on both diesel and gas engines
  • Carli provides a Limited Lifetime Warranty
$1150
2 of 3 options
F250 / F350 2017-2022 Ford 4WD (w/2-3" rear lift & 4.0" rear axle) Long Travel Air Spring System by Carli Suspension

The Carli Suspension CS-FLTB-17-35 Long Travel Air Bag System for the Ford F250 / F350 are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.

  • Restores factory payload to Carli full progressive springs
  • Designed for 4.0" Diameter Axles
  • Works with Carli 4.5 inch and 5.5 inch lift systems (2 to 3 inches or rear lift)
  • Adjustable rear loaded height, 2000lb capacity per bag at 100psi
  • Includes 1/4" Airline, fittings and Schrader valves
  • Supports up to 12" of travel
  • Works on both diesel and gas engines
  • Carli provides a Limited Lifetime Warranty
Read More

The Carli Suspension CS-FLTB-17-35 Long Travel Air Bag System for the Ford F250 / F350 are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.

  • Restores factory payload to Carli full progressive springs
  • Designed for 4.0" Diameter Axles
  • Works with Carli 4.5 inch and 5.5 inch lift systems (2 to 3 inches or rear lift)
  • Adjustable rear loaded height, 2000lb capacity per bag at 100psi
  • Includes 1/4" Airline, fittings and Schrader valves
  • Supports up to 12" of travel
  • Works on both diesel and gas engines
  • Carli provides a Limited Lifetime Warranty
$1150
3 of 3 options
F350 2017-2022 Ford Dually 4WD (w/2-3" rear lift & 4.5" rear axle) Long Travel Air Spring System by Carli Suspension

The Carli Suspension CS-FLTB-17-35 Long Travel Air Bag System for the Ford F250 / F350 are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.

  • Restores factory payload to Carli full progressive springs
  • Designed for 4.5" Diameter Axles
  • Works with Carli 4.5 inch and 5.5 inch lift systems (2 to 3 inches or rear lift)
  • Adjustable rear loaded height, 2000lb capacity per bag at 100psi
  • Includes 1/4" Airline, fittings and Schrader valves
  • Supports up to 12" of travel
  • Works on both diesel and gas engines
  • Carli provides a Limited Lifetime Warranty
Read More

The Carli Suspension CS-FLTB-17-35 Long Travel Air Bag System for the Ford F250 / F350 are designed to compliment the Carli Full Replacement Leaf Springs. Enhance the load-carrying capacity and towing capabilities of your Super Duty while maintaining ride comfort and quality. Carli airbags are designed to accommodate up to 12 inches of suspension travel and can be easily installed with simple bolt-on DIY methods. You have the option to set up onboard air systems or use them manually. These airbags are robust, boasting a rating of 2,000 pounds each (with a maximum capacity of 4,000 pounds at 100 psi) and have a typical operating range of 5 to 75 psi. They are well-suited for large 5th wheel trailers, work trucks, campers, boats, bumper-pull trailers, and hauling purposes.

  • Restores factory payload to Carli full progressive springs
  • Designed for 4.5" Diameter Axles
  • Works with Carli 4.5 inch and 5.5 inch lift systems (2 to 3 inches or rear lift)
  • Adjustable rear loaded height, 2000lb capacity per bag at 100psi
  • Includes 1/4" Airline, fittings and Schrader valves
  • Supports up to 12" of travel
  • Works on both diesel and gas engines
  • Carli provides a Limited Lifetime Warranty
$1150
Adjustable Radius Arms
F250 / F350 2005-2022 Ford 4WD (w/4.5"-5.5" of lift) Fabricated Radius Arm System by Carli Suspension

Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.

  • Heavy Duty design provides a massive strength upgrade over factory arms
  • 0.5°-2.5° of adjustable Caster correction
  • Improved ride quality and control
  • Internal Cross Bracing and Gusseting for superior strength and durability
  • Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
  • Includes Limit straps
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.

  • Heavy Duty design provides a massive strength upgrade over factory arms
  • 0.5°-2.5° of adjustable Caster correction
  • Improved ride quality and control
  • Internal Cross Bracing and Gusseting for superior strength and durability
  • Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
  • Includes Limit straps
  • Carli provides a Limited Lifetime Warranty
$1565
High-Mount Steering Stabilizer
F250 / F350 2017-2023 Ford 4WD (w/2.5"-5.5" Suspension Lift) High Mount Steering Stabilizer by Carli Suspension

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts in factory OE location
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts in factory OE location
  • Corrects right tire pull, adjustable
  • Combines with Low-Mount for opposing stabilization
$450
Low-Mount Steering Stabilizer
F250 / F350 2005-2022 Ford 4WD Low Mount Steering Stabilizer with Diff Guard by Carli Suspension

This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts to tie-rod and included diff guard
  • Corrects left tire pull, adjustable
  • Combines with High-Mount for opposing stabilization
Read More

This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.

  • Simple, Bolt-in Installation
  • Mounts to tie-rod and included diff guard
  • Corrects left tire pull, adjustable
  • Combines with High-Mount for opposing stabilization
$695
Carrier Bearing Drop Kit
F250 / F350 Super Duty 2017-2023 Ford 4WD Trophy Hitch by Carli Suspension

Carli Suspension's CS-CARRIERDROP-F Carrier Bearing Drop Kit for the Ford F250 / F350 is made for models with a 2 piece rear driveshaft. On models with rear lift from 1 to 4 inches this stackable shim helps to prevent take-off shudder and driveline vibrations.

  • Helps to eliminate take-off shudder and driveline vibrations
  • Drop the carrier bearing on models with 2-piece driveshafts
  • For models with 1 to 4 inches of rear lift
  • Stackable 1/4 inch shims for different size drops
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-CARRIERDROP-F Carrier Bearing Drop Kit for the Ford F250 / F350 is made for models with a 2 piece rear driveshaft. On models with rear lift from 1 to 4 inches this stackable shim helps to prevent take-off shudder and driveline vibrations.

  • Helps to eliminate take-off shudder and driveline vibrations
  • Drop the carrier bearing on models with 2-piece driveshafts
  • For models with 1 to 4 inches of rear lift
  • Stackable 1/4 inch shims for different size drops
  • Carli provides a Limited Lifetime Warranty
$3150
Trophy Hitch
F250 / F350 Super Duty 2017-2023 Ford 4WD Trophy Hitch by Carli Suspension

Carli Suspension's CS-FHITCH-1723 Trophy Hitch for your Ford F250 / F350 is designed to address a common problem on lifted models with oversized tires. Because of limited space found in the factory location fitting a spare tire above size of 35 inches can be a challenge. The Carli Trophy hitch will allow for use of up to a 38 inch diameter spare tire in the factory location. This heavy duty hitch is made from 3/16 inch and 1/4 inch cold-rolled American steel. With a weight capacity of 16,000 lbs utilizing a 3 inch receiver. Featuring a direct bolt-on installation.

  • Allows for 38" spare tire in factory location
  • Direct bolt on install
  • Made out of 3/16" and 1/4" cold rolled American steel
  • Rated to 16,000lbs
  • 3" hitch receiver
  • May require exhaust modifications with 38 inch tires
  • Requires 5/8" x 4" (usable shank) Hitch Pin
  • Carli provides a Limited Lifetime Warranty
Read More

Carli Suspension's CS-FHITCH-1723 Trophy Hitch for your Ford F250 / F350 is designed to address a common problem on lifted models with oversized tires. Because of limited space found in the factory location fitting a spare tire above size of 35 inches can be a challenge. The Carli Trophy hitch will allow for use of up to a 38 inch diameter spare tire in the factory location. This heavy duty hitch is made from 3/16 inch and 1/4 inch cold-rolled American steel. With a weight capacity of 16,000 lbs utilizing a 3 inch receiver. Featuring a direct bolt-on installation.

  • Allows for 38" spare tire in factory location
  • Direct bolt on install
  • Made out of 3/16" and 1/4" cold rolled American steel
  • Rated to 16,000lbs
  • 3" hitch receiver
  • May require exhaust modifications with 38 inch tires
  • Requires 5/8" x 4" (usable shank) Hitch Pin
  • Carli provides a Limited Lifetime Warranty
$3150
Vehicle Fitment
MakeFord
ModelF250, F350
Year Fitment2019, 2018, 2017
2WD/4WD4WD
Tech Specs
ManufacturerCarli Suspension
Manufacturer Part NumberCS-F45-BC-CS-17
Item Numbercar_cs-f45-bc-cs-17
MPN(UPC)883584149286
Product LineLift Kits
Lift Height4.5 inch



Warning - Cancer and Reproductive HarmWARNINGCancer and Reproductive Harm. www.p65warnings.ca.gov/
