2.5" 2008-2010 Ford F250/F350 4wd Commuter System by Carli Suspension
From $2,035.00
Trusted Experts Since 1994, Top Rated service
Got Questions? We can help!
888-452-2548
Got Questions? We can help!
888-452-2548
Product Description

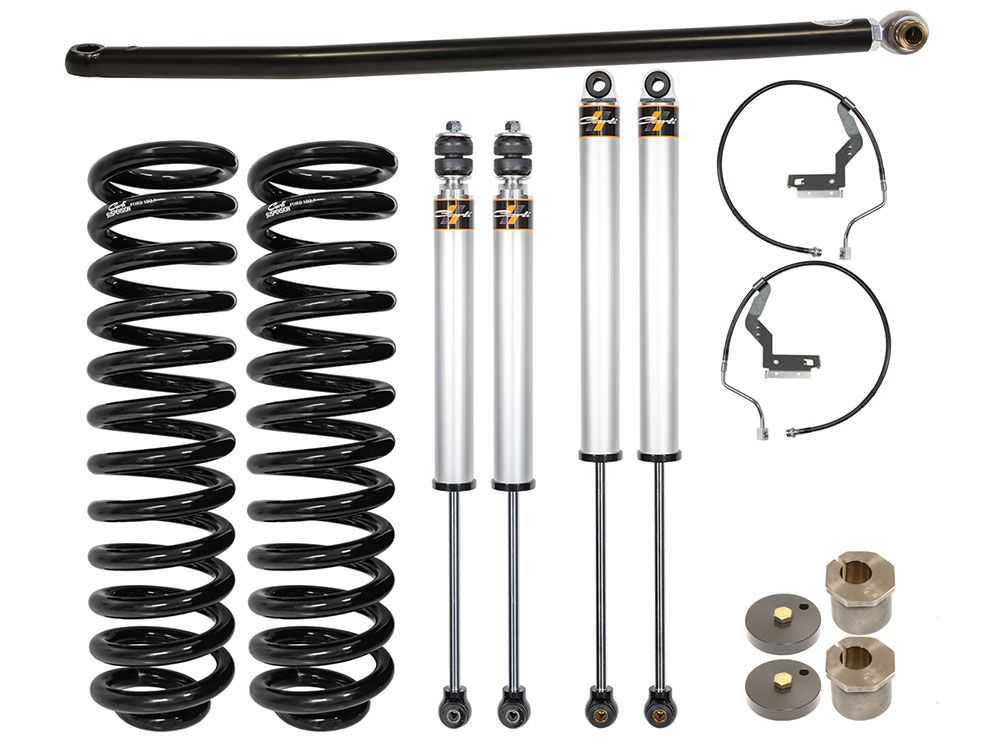

This Carli Suspension CS-FLVL-COM-CS-08 2.5 inch Commuter lift system for the Ford F250 / F350 4wd models is a premium lift kit that will lift your vehicle enough to fit up to 37 inch x 12.5 inch tires (w/trimming). It is perfect for Ford owners wanting the best on-road ride quality and are not planning on much off-roading. Featured in this lift kit system are 2.5 inch lift front coil springs that have a slightly reduced linear rate for better ride comfort. Paired with the coil springs are Carli SPEC 2.0 shock absorbers. These shocks use a 2" diameter 6063 aluminum anodized body for corrosion resistance and great heat dispersion. An internal reservoir with 5/8 inch diameter hardened steel chrome plated shaft are also featured. To keep the front axle centered properly an adjustable front track bar is included. In typical Carli fashion this bar has features that are not found in other track bars. This includes 3/8 inch DOM construction that allow for use of a 1" x 7/8" FK bearing heim joint with a huge 1" shank. In the rear Carli gives you variety of choices to lift or not lift the rear of the vehicle. The base kit does not lift the rear, however you can choose between the Carli progressive rate 2" lift add-a-pack kit (most economical and maintains factory payload, but for F250 only) or the Carli Full Progressive Rate 1" lift Rear Leaf Springs. The progressive leaf springs will provide increased suspension travel and drastically improved ride quality while reducing load capacity to a light 3/4 ton spec. You can make your selection in the options section below. Features & Benefits:
Components Included:
Optional Upgrades - While not required, Carli Suspension offers additional components to further enhance ride quality and / or performance of this leveling system. These can be found by scrolling down the page to the table below. |
| Important Notes1. Recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspacing with factory arms 2. It is not advisable to use factory wheels with oversized tires, as this can lead to issues such as rubbing against the radius arm, sway bar, and, most importantly, the brake lines. 3. Add-a-Packs not recommended on F350 models due to poor ride quality. |
Available Options
Leaf Spring Shackle
F250 / F350 Super Duty 2005-2024 Ford 4WD Fabricated Rear Leaf Spring Shackle Kit by Carli SuspensionRead More
Carli Suspension's Fabricated Leaf Spring Shackle kit is built from 1/4 inch steel construction and are greaseable and rebuildable. In contrast to the factory vulcanized bushings (which can significant portion of the rough ride experienced in Rams), the Carli shackle bushing assembly utilizes more bushing material and a thinner sleeve to prioritize ride damping. Moreover, the bushings are serviceable. You can droop the rear end and grease them through the protected zerk fitting. These heavy duty Carli shackles are a cost-effective method to improve the ride on the rear end of your truck, and works wonders by offering both serviceability and rebuildability. It is a worthwhile upgrade for your truck, even if you have factory leaf springs.
- Carli utilize superior bushings over OEM
- Greaseable and Rebuildable
- Far better ride than factory shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs
- Carli provides a Limited Lifetime Warranty
Carli Suspension's Fabricated Leaf Spring Shackle kit is built from 1/4 inch steel construction and are greaseable and rebuildable. In contrast to the factory vulcanized bushings (which can significant portion of the rough ride experienced in Rams), the Carli shackle bushing assembly utilizes more bushing material and a thinner sleeve to prioritize ride damping. Moreover, the bushings are serviceable. You can droop the rear end and grease them through the protected zerk fitting. These heavy duty Carli shackles are a cost-effective method to improve the ride on the rear end of your truck, and works wonders by offering both serviceability and rebuildability. It is a worthwhile upgrade for your truck, even if you have factory leaf springs.
- Carli utilize superior bushings over OEM
- Greaseable and Rebuildable
- Far better ride than factory shackle
- 1/4" Steel Construction
- Fits Factory and Carli Springs
- Carli provides a Limited Lifetime Warranty
$275
High-Mount Steering Stabilizer
F250 / F350 2008-2016 Ford 4WD (w/2.5"-4.5" Suspension Lift) High Mount Steering Stabilizer by Carli SuspensionRead More
This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.
- Simple, Bolt-in Installation
- Mounts in factory OE location
- Corrects right tire pull, adjustable
- Combines with Low-Mount for opposing stabilization
This is a bolt-in companion to the Carli Low-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.
- Simple, Bolt-in Installation
- Mounts in factory OE location
- Corrects right tire pull, adjustable
- Combines with Low-Mount for opposing stabilization
$470
Low-Mount Steering Stabilizer
F250 / F350 2005-2022 Ford 4WD Low Mount Steering Stabilizer with Diff Guard by Carli SuspensionRead More
This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.
- Simple, Bolt-in Installation
- Mounts to tie-rod and included diff guard
- Corrects left tire pull, adjustable
- Combines with High-Mount for opposing stabilization
This is a bolt-in companion to the Carli High-Mount Steering Stabilizer. With an adjustable range from 70 to 200 psi, it allows you to achieve a neutral steering response at 70 psi or counteract the natural right-hand pull typically associated with tires like Toyo Mud Terrains at 200 psi. Designed to mount into the factory stabilizer location.
- Simple, Bolt-in Installation
- Mounts to tie-rod and included diff guard
- Corrects left tire pull, adjustable
- Combines with High-Mount for opposing stabilization
$725
Adjustable Radius Arms
F250 / F350 2005-2022 Ford 4WD (w/2.5"-3.5" of lift) Fabricated Radius Arm System by Carli SuspensionRead More
Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.
- Heavy Duty design provides a massive strength upgrade over factory arms
- 0.5°-2.5° of adjustable Caster correction
- Improved ride quality and control
- Internal Cross Bracing and Gusseting for superior strength and durability
- Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
- Includes 12" Limit straps
- Carli provides a Limited Lifetime Warranty
Carli Suspension's Fabricated Radius Arms for the Ford F250 / F350 represent a significant upgrade from the weak, stamped factory radius arms. They incorporate internal x-bracing and gusseting, mirroring the design of Carli Suspension's other Radius Arm systems, ensuring superior strength and durability. These new arms are equipped with a rebuildable 17-4 Stainless spherical joint, enabling unhindered articulation while eliminating the irritating "kick" caused by the large factory bushings when they store and release energy. These Carli radius arms will correct 0.5°-2.5° of caster at the axle mount ensuring ANY Carli customer can achieve death-wobble-preventing positive caster. The end result is a much smoother ride with enhanced and more precise control. To further enhance performance and safety, Carli Suspension includes custom length Quad-wrap Limit Straps that prevent the shock from over-traveling during off-road conditions. With these improvements, you can experience maximum performance and peace of mind during your off-road adventures.
- Heavy Duty design provides a massive strength upgrade over factory arms
- 0.5°-2.5° of adjustable Caster correction
- Improved ride quality and control
- Internal Cross Bracing and Gusseting for superior strength and durability
- Serviceable 17-4 stainless spherical joints eliminate "kick" caused by large factory bushings
- Includes 12" Limit straps
- Carli provides a Limited Lifetime Warranty
$1630
Vehicle Fitment
| Make | Ford |
|---|---|
| Model | F250, F350 |
| Year Fitment | 2010, 2009, 2008 |
| 2WD/4WD | 4WD |
Tech Specs
| Manufacturer | Carli Suspension |
|---|---|
| Manufacturer Part Number | CS-FLVL-COM-CS-08 |
| Item Number | car_cs-flvl-com-cs-08 |
| MPN(UPC) | 883584147343 |
| Product Line | Lift Kits |
| Lift Height | 2.5 inch |
WARNING : Cancer and Reproductive Harm. www.p65warnings.ca.gov/
2.5" 2008-2010 Ford F250/F350 4wd Commuter System by Carli Suspension Brand: Carli Suspension | SKU: CS-FLVL-COM-CS-08
- +
